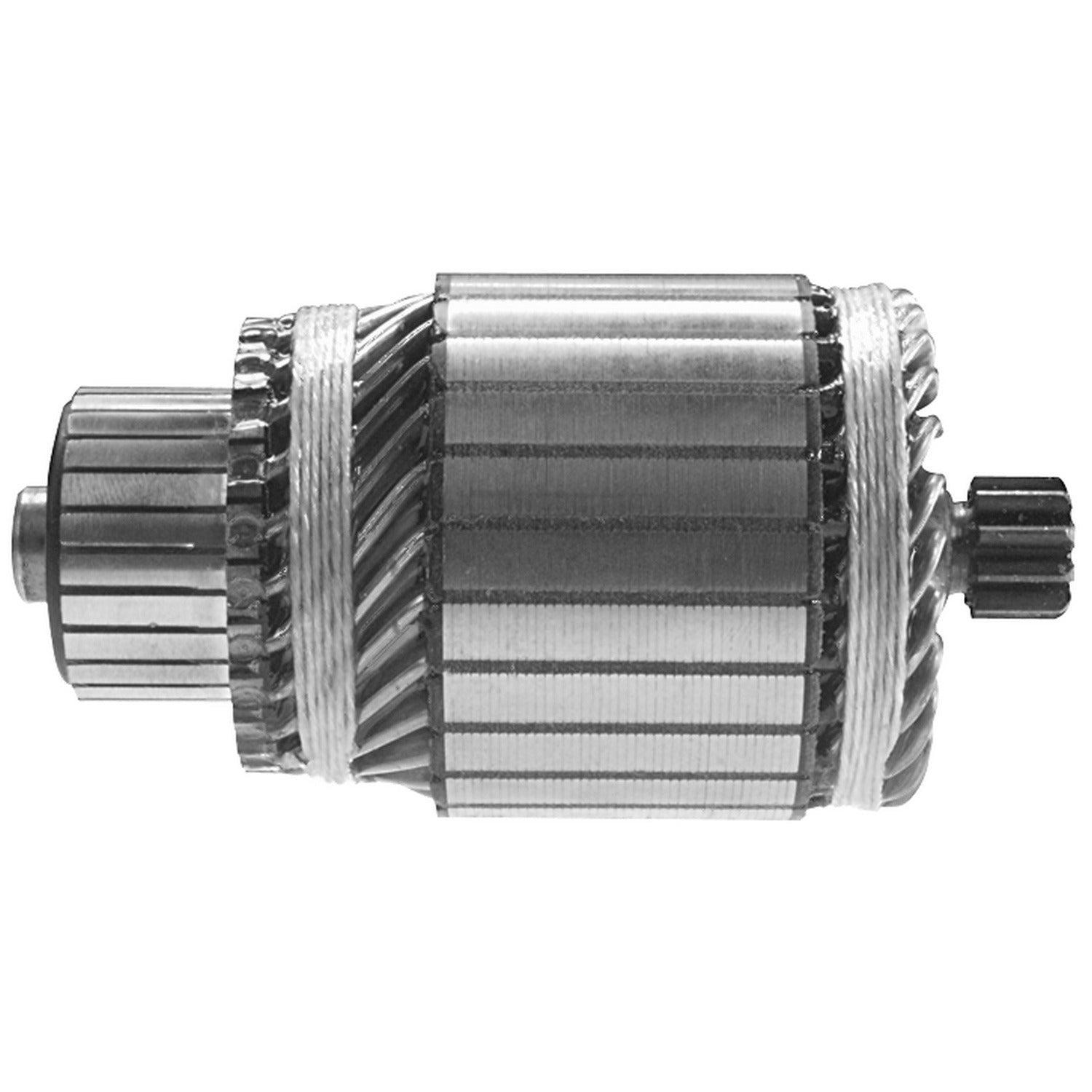

Aftermarket Starter Armature 61-8112
Click to zoom in

Aftermarket Starter Armature 61-8112

Hitachi
61-8112
In stock
Armature
$60.00

Aftermarket Starter Armature 61-8112

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

Specifications
SPECS:12 Volt
SPECS FOR:Hitachi 1.2kW, 1.4kW PMGR Starters
Dim 1:111mm OAL
Dim 2:10-Splines
Dim 3:16mm Shaft OD, Front Bushing
Dim 4:12.5mm Shaft OD, Rear Bushing
FEATURE 1:100% New
FEATURE 2:Precision machined shaft with ground bearing surfaces
FEATURE 3:Heat treated splines & bearing surfaces
FEATURE 4:Commutator with thick copper segments & stake welded hairpins
FEATURE 5:Banded hairpins at commutator
FEATURE 6:100% tested for balance, grounds & shorts
LESTER NUMBERS
16794, 16817, 16874, 16956, 17161, 17196
Replaces
Hitachi 2114-71105, GD209574-A, Nissan, Infiniti 23310-42L60
UNIT NUMBERS
Hitachi S114-501, S114-501A, S114-503, S114-503A, S114-505, S114-509, S114-516, S114-516A, S114-519, S114-519A, S114-525, S114-525A, S114-528, S114-528A, S114-780; Marelli 944280521610; Nissan, Infiniti 23300-12G02, 23300-12G02R, 23300-12G03, 23300-12G05, 23300-20P00, 23300-20P05, 23300-30R01, 23300-30R01R, 23300-30R02, 23300-30R02R, 23300-57M60, 23300-88G00, 23300-88G01, 23300-V4361, 23300-V4362, 2330M-88G01RW
