Specifications
SPECS:12 Volt

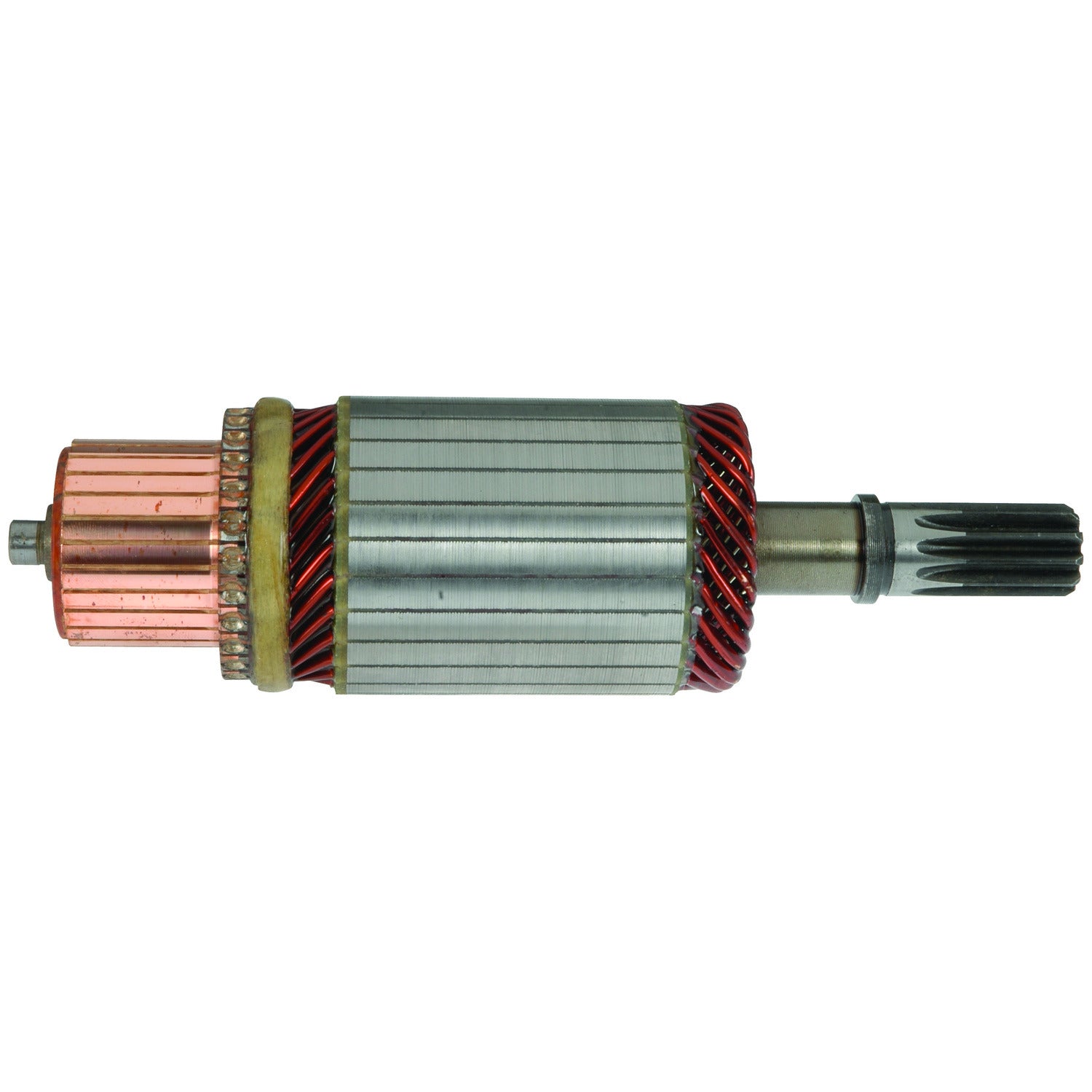

SPECS FOR:Hitachi 2.0kW OSGR Starters
Dim 1:188mm OAL
Dim 2:11-Splines
Dim 3:17mm Shaft OD, Front Bearing
Dim 4:8mm Shaft OD, Rear Bearing
NOTE 1:Used w/ 6-608-4 & 6-903-4 ball bearings
FEATURE 1:100% New
FEATURE 2:Precision machined shaft with ground bearing surfaces
FEATURE 3:Heat treated splines & bearing surfaces
FEATURE 4:Commutator with thick copper segments & stake welded hairpins
FEATURE 5:Banded hairpins at commutator
FEATURE 6:100% tested for balance, grounds & shorts
LESTER NUMBERS
16733, 16740, 17138, 18051, 18052, 18053, 18061, 18067, 18296, 18297, 18299, 18493, 30727, 31229, 32182
Replaces
Hitachi 2130-21003, 2130-51002, 2130-61003, 2130-71001, 2130-91002, GD206680-A, GD206680A, Ishikawajima 185846353, Isuzu 8-94438-365-0, 8942420590, Nissan, Infiniti 23310-10G00, 23310-S0100, 23310-V0706, Thermo-King 44-7016, Yanmar 129400-77400
UNIT NUMBERS
Agco 72102547; Bosch 0 986 016 041; Ford SBA18508-6221; GM 19011981, 94238758; Hitachi PP106, S13-101, S13-102, S13-104, S13-104N, S13-104R, S13-111, S13-112, S13-112A, S13-114, S13-114A, S13-115, S13-115A, S13-124, S13-127, S13-127A, S13-132, S13-136, S13-136N, S13-211, S13-302, S13-302A, S13-50, S13-50A, S13-514, S13-514N, S13-56, S13-56A, S13-60, S13-62, S13-62A, S13-62B, S13-62C, S13-63, S13-64, S13-89C, S13-89D, S13-91, S13-91A, S13-92A, S13-92AR, S13-94, S13-94A, S14-203; Ishikawajima 18508-6221, 185086200; Isuzu 8411155670, 8941155670, 8942363470, 8942363471, 8942387580, 8942387581, 8943876530, 8944104090, 8944339120, 8944339121, 8944339122, 8944604170, 8944604171, 8944681500, 8944681501, 8944694963, 8970848770, 8971125490, 8971366870, 8971366880, 8972286640; John Deere 4626343, AM878189, AT318141; Land Rover ADZ91211; Letrika (Iskra) Tech. AZE4634; Letrika Old IS 9320; Marelli 944280521270, 944280529060; Mitsuba M2T20771; Mustang Marine 425-34685; New Holland SBA18508-6221; Nissan, Infiniti 23300-0Y000, 23300-0Y005, 23300-10G02, 23300-10T01, 23300-10T02, 23300-1W400, 23300-45N50, 23300-45N51, 23300-6K200, 23300-6T000, 23300-6T001, 23300-7F400, 23300-80G00, 23300-80G00A, 23300-80G01, 23300-83W00, 23300-Q2403, 23300-Q2404, 23300-Q2405, 23300-Q2406, 23300-V0705, 23300-V0706, 23300-V7200, 23300-V7260, 23300-W1800, 23300-W2500R; Opel 1202163, 9120560, 9120561, 9120565, 97112549, 97136688; Original Reference Number PE-106; Prestolite 20513065; Thermo-King 45-2325; Toyosha 5101-8501-00-0; Volvo 1328391, 1328391-0, 1328391-6, 5003003, 5003003-0; Yanmar 121254-77013, 121256-77010, 129130-77010, 129136-77010, 129400-77010, 129400-77011
