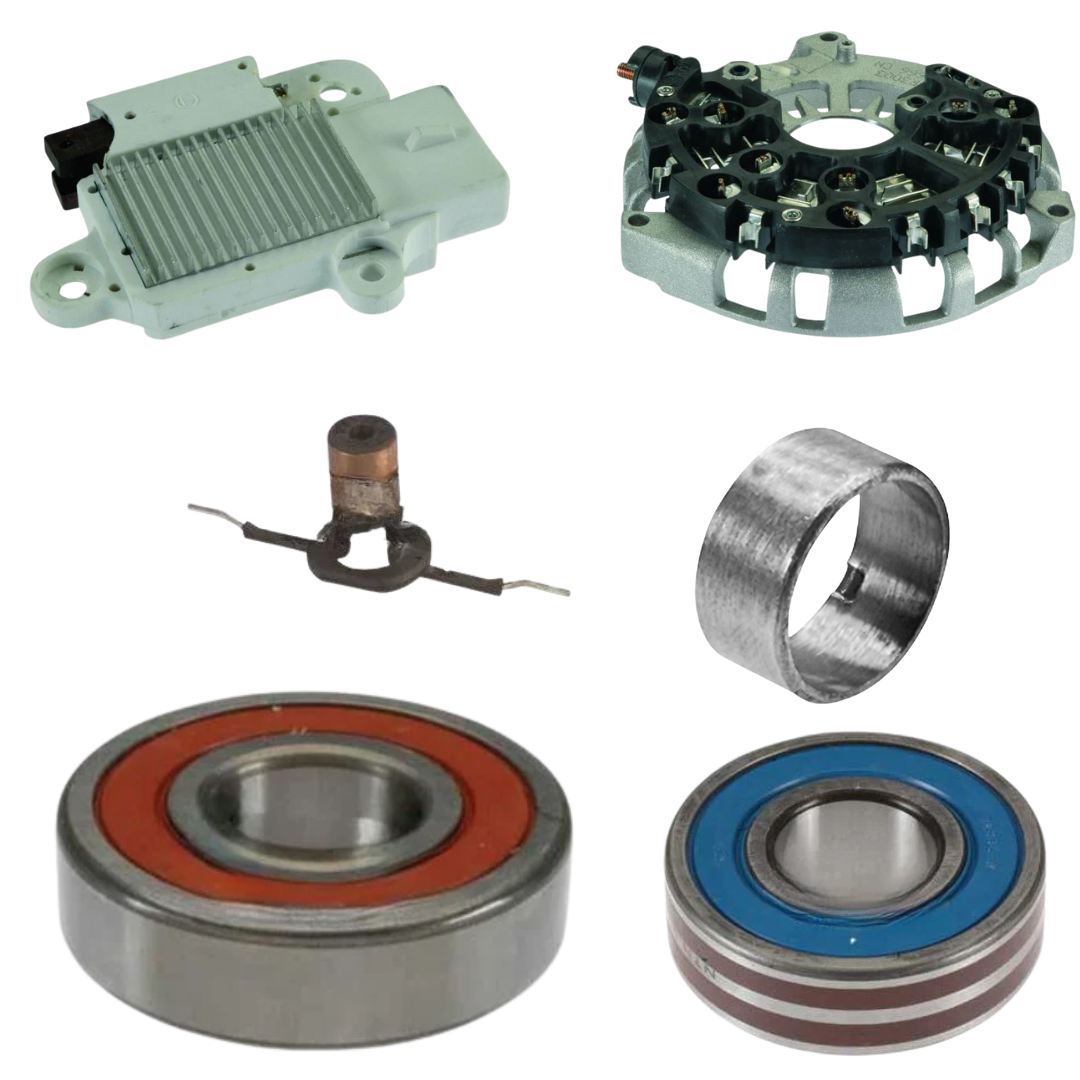

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Pulley
Pulley Nut
Repair Lead
Rotor
Specifications
- MFR:FORD
- Mfr Series:4G
- AMPERAGE:130
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:Rectifier features 13mm press-fit diodes
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- NOTE 1:339 Plug Code
- NOTE 2:Neg. Grd.
- NOTE 3:Representative image, actual item may vary
- PLUG CLOCK:02:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:57mm OD
- ROTATION:CW
- SPECS FOR:Ford 4G Series IR/IF
- SPECS:130 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Ford (2005-2007) ** Mercury (2005-2007)
Replaces
- Ford 5F9T-10300-AC, 5F9Z-10346-AA, 6F9T-10300-AA, 6F9T-10300-AC, 6F9Z-10346-AA, 6F9Z-10346-AARM2, 6F9Z-10346-ABRM, 6F9Z-10346-ACRM, 6F9Z-10V346-ABRM, 6F9Z10346AARM3, 6U2Z-10V346-DBRM, Ford Engineering 5F9T-AC, 6F9T-AA, 6F9T-AC, RM6F9T-10300-AF, RM6U2J-10D309-AC, Visteon JK, JZ
LESTER NUMBERS
- 8442
