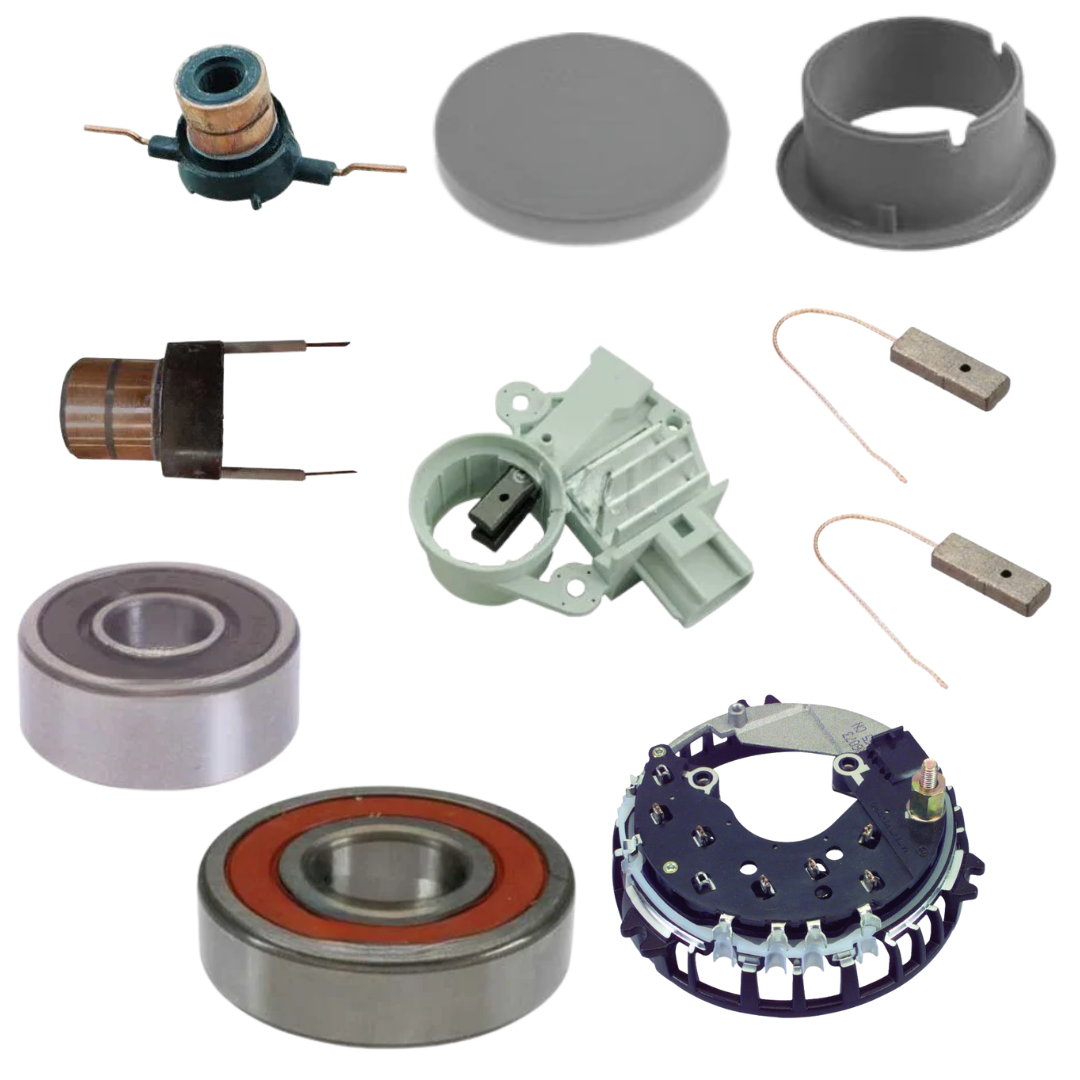

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Rectifier
Tolerance Ring
NOT INCLUDED IN REBUILD KIT:
Frame DE
Frame SRE
Pulley Nut
Rotor
Stator
Thru Bolt
Specifications
- MFR:FORD
- Mfr Series:6G
- AMPERAGE:110
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:WAI-Transpo rectifier features 13mm press-fit diodes w/ crimp-weld diode terminations
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- NOTE 1:337 Plug Code
- NOTE 2:Neg. Grd.
- NOTE 3:Representative image, actual item may vary
- PLUG CLOCK:03:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:54mm OD
- ROTATION:CW
- SPECS FOR:Ford 6G Series IR/IF
- SPECS:110 Amp/12 Volt, CW, 6-Groove Pulley, 03:00 Plug Clock
- VOLTAGE:12
USED ON
- Ford (2005-2007)
Replaces
- Ford 4S4T-10300-AC, 4S4Z-10346-AB, 5S4T-10300-AB, 5S4T-10300-AC, 5S4Z-10346-A, 6S4T-10300-AD, 6S4Z-10346-AA, 6S4Z-10V346-ABRM, 6S4Z-10V346-BBRM, 6S4Z-10V346-BCRM, 6U2Z-10V346-CARM, 7S4T-10300-AA, 7S4Z-10346-A, 7S4Z-10346-AARM, Ford Engineering 4S4T-AC, 5S4T-AB, 5S4T-AC, 6S4T-AD, 7S4T-AA, RM6U2J-10D309-FC, RM6U2J-10D309-JC, Visteon HF, HH
LESTER NUMBERS
- 8406
