INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
NOT INCLUDED IN REBUILD KIT:
Diodes Negative
Diodes Positive
Nut
Pulley
Pulley Nut

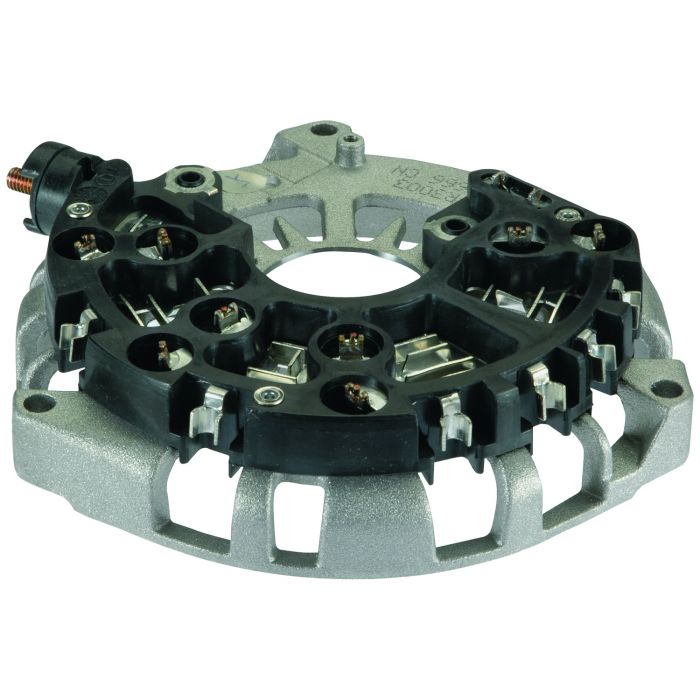

Rectifier Cover
Repair Lead
Rotor
Specifications
- MFR:FORD
- Mfr Series:4G
- AMPERAGE:130
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:Rectifier features 13mm press-fit diodes
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- NOTE 1:339 Plug Code
- NOTE 2:Neg. Grd.
- NOTE 3:PCM controlled regulation voltage
- NOTE 4:Representative image, actual item may vary
- PLUG CLOCK:01:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:59mm OD
- ROTATION:CW
- SPECS FOR:Ford 4G Series IR/IF
- SPECS:130 Amp/12 Volt, CW, 6-Groove/59mm OD Pulley
- VOLTAGE:12
USED ON
- Ford (2003-2004) ** Lincoln (2003-2005) ** Mercury (2003-2004)
Replaces
- Ford 3W1U-10300-AA, 3W1U-10300-AB, 3W1Z-10346-AA, 3W1Z-10346-AARM, 3W1Z-10V346-AARM, 3W1Z-10V346-ABRM, 4U2Z-10V346-ABRM, Ford Engineering 3W1U-AA, 3W1U-AB, RM4U2J-10D309-GC, Visteon GC
LESTER NUMBERS
- 8313
