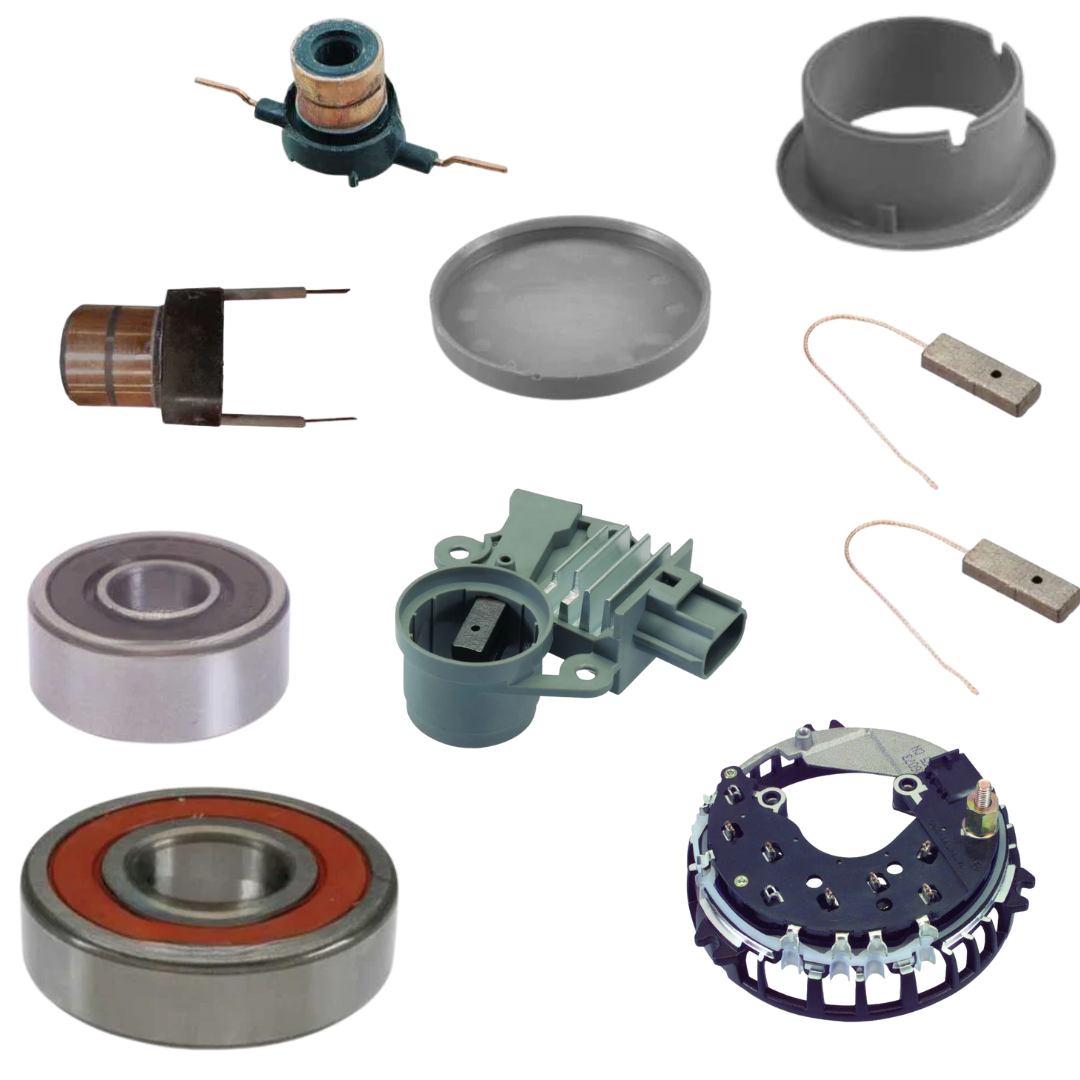

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Bearing Cover
Rectifier
Tolerance Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Frame DE
Frame SRE
Pulley
Pulley Nut
Rotor
Stator
Thru Bolt
Specifications
- MFR:FORD
- Mfr Series:6G
- AMPERAGE:110
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:WAI-Transpo rectifier features 13mm press-fit diodes w/ crimp-weld diode terminations
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- NOTE 1:336 Plug Code
- NOTE 2:Neg. Grd.
- NOTE 3:Representative image, actual item may vary
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S8
- PULLEY NOTE:64mm OD
- ROTATION:CW
- SPECS FOR:Ford 6G Series IR/IF
- SPECS:110 Amp/12 Volt, CW, 8-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Ford (2003-2004)
Replaces
- Ford 2R3U-10300-BA, 2R3V-10300-BA, 2R3Z-10346-BA, 2R3Z-10346-BB, 2R3Z-10V346-BARM, 2R3Z-10V346-BBRM, 2R3Z-10V346-BDRM, Ford Engineering 2R3V-BA, Original Reference Number 2R3U-BA
LESTER NUMBERS
- 8304
