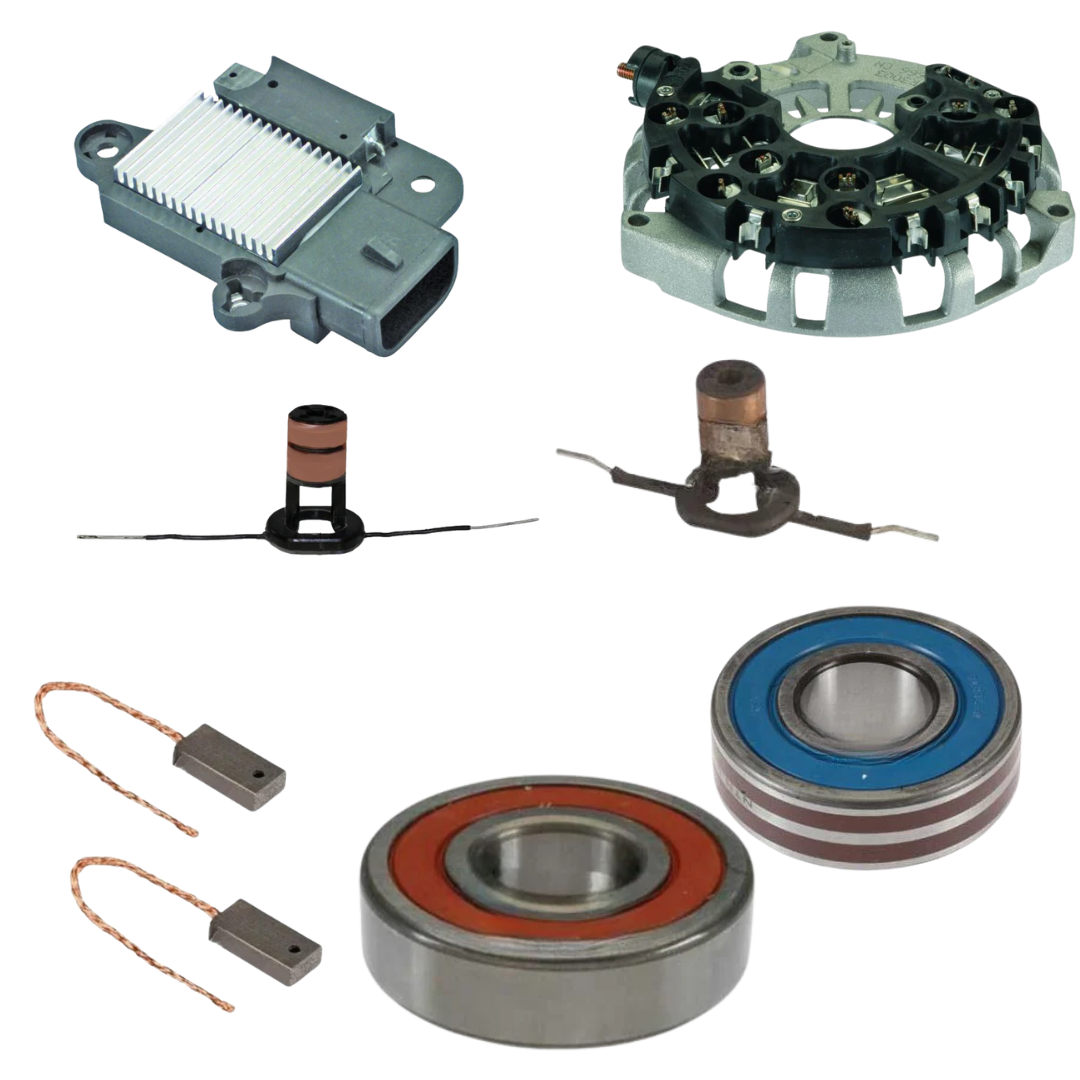

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Nut
Pulley
Pulley Nut
Rectifier Cover
Repair Harness
Repair Lead
Rotor
Specifications
- MFR:FORD
- Mfr Series:4G
- AMPERAGE:130
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:Rectifier features 13mm press-fit diodes
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- NOTE 1:331 Plug Code
- NOTE 2:Neg. Grd.
- NOTE 3:Without LRC
- NOTE 4:Representative image, actual item may vary
- PLUG CLOCK:05:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:53mm OD
- ROTATION:CW
- SPECS FOR:Ford 4G Series IR/IF
- SPECS:130 Amp/12 Volt, CW, 6-Groove/53mm OD Pulley
- VOLTAGE:12
USED ON
- Ford (2001-2004) ** Mercury (2001-2004)
Replaces
- Ford 1L2U-10300-AA, 1L2U-10300-AB, 1L2Z-10346-AA, 1L2Z-10346-AARM, 1L2Z-10346-AB, 1L2Z-10346-ABRM, 1L2Z-10V346-ADRM, 4U2Z-10V346-CXRM, Ford Engineering 1L2U-AA, 1L2U-AB, Visteon BK
LESTER NUMBERS
- 7787
