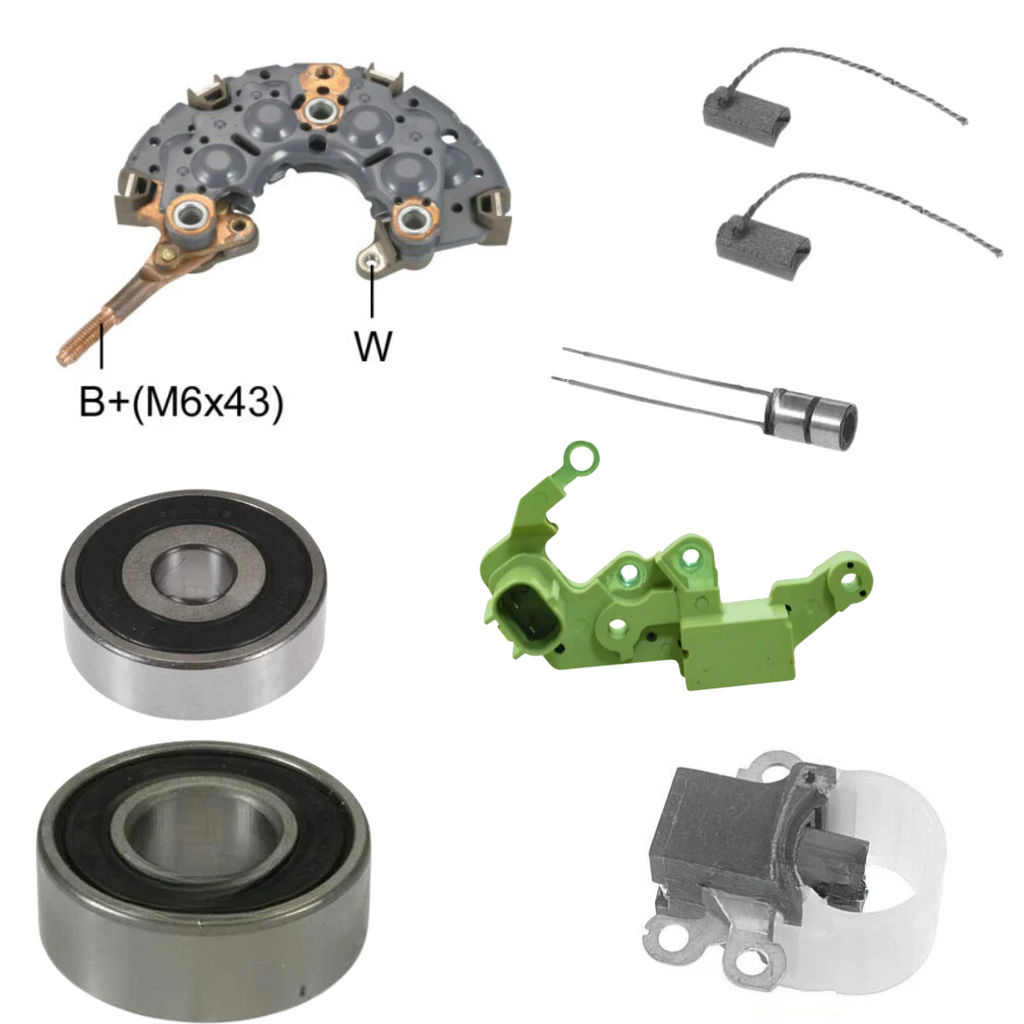

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Brush Holder
Rectifier
Slip Ring
Terminal Block
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Cover 1
Connector
Diodes Negative
Diodes Positive
Frame DE
Frame SRE
Insulator 1
Insulator 2
Insulator 3
Nut 1
Nut 2
Pulley
Pulley Nut
Rotor
Rectifier Strap
Rectifier Cover
Screw 1
Screw 2
Screw 3
Screw 4
Seal 1
Stator
Thru Bolt
Washer Ring
Washer Spring
Specifications
- MFR:DENSO
- AMPERAGE:136
- DESIGN:ER/IF
- FEATURE 1:100% New
- PLUG CLOCK:02:00 Plug Clock
- PLUG CODE:363
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Denso ER/IF
- SPECS:136 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Chrysler (2002-2004) ** Dodge (2002-2004)
Replaces
- Chrysler 04606822AA, 4606822AA, 4608718AA, 4896123AA, 4896123AB, Denso 121000-4372, 121000-4373, 121000-4510, 121000-4580
LESTER NUMBERS
- 13964
