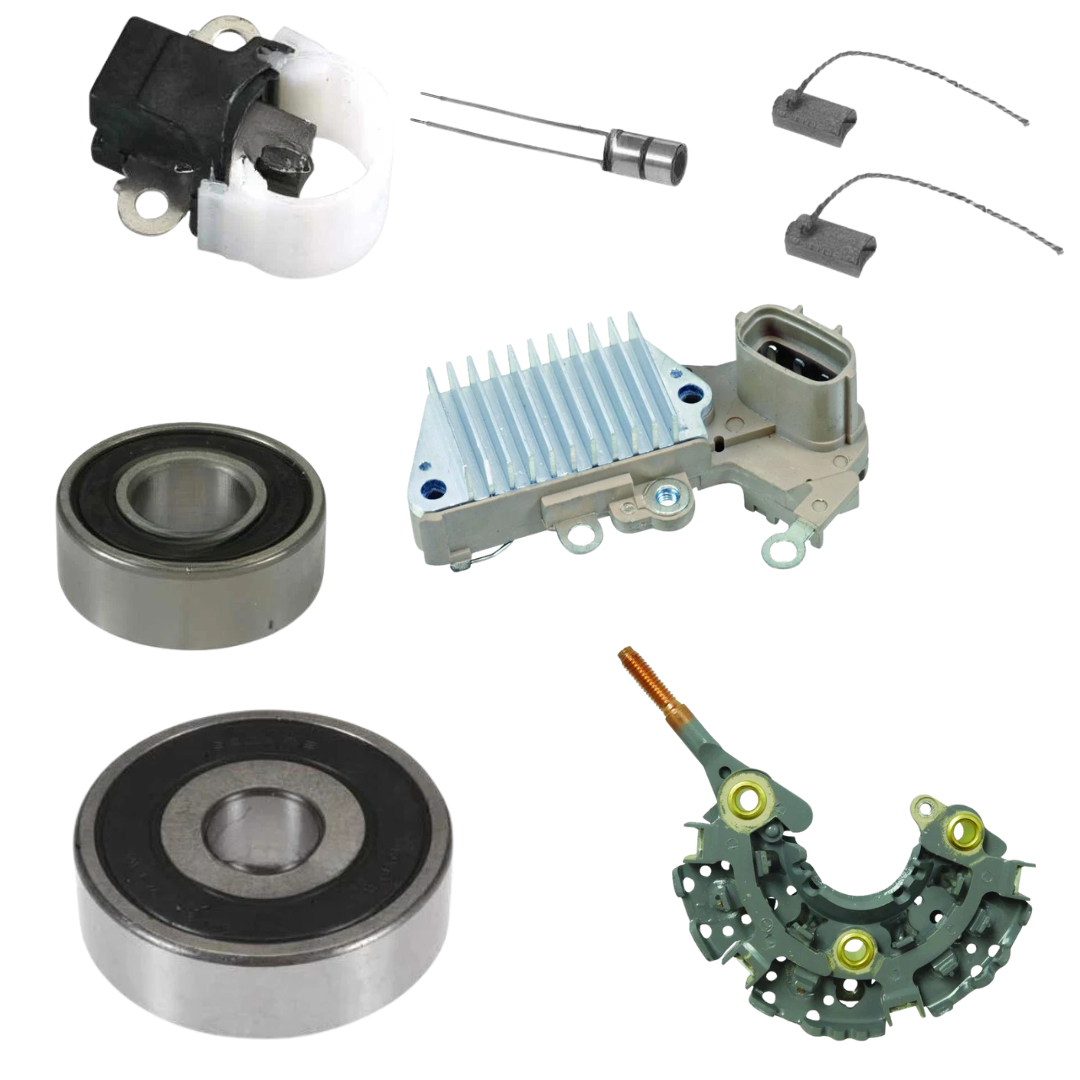

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Cover 1
Cover 2
Cover 3
Diode Negative
Diode Positive
Ground Strap
Insulator 1
Nut 1
Nut 2
Nut 3
Nut 4
Rotor
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Seal 3
Seal 4
Stator
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- AMPERAGE:90
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:06:00 Plug Clock
- PLUG CODE:318
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Denso IR/IF
- SPECS:90 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Acura (1999-1999) ** Isuzu (2000-2002)
VEHICLE APPLICATION
|
Acura Truck |
SLX V6 3.5L 3494cc 1999 |
|
Isuzu Truck |
Trooper V6 3.5L 3475cc 2000-2002 |
LESTER NUMBERS
- 13875
Replaces
- Acura 8-97210-373-0, Denso 102211-1740, Isuzu 8972103730
