Aftermarket Denso Alternator Rebuild Kit 13795RK
Click to zoom in
Load image into Gallery viewer, Aftermarket Denso Alternator Rebuild Kit 13795RK

Aftermarket Denso Alternator Rebuild Kit 13795RK

Denso
13795RK
Out of stock
Rebuild Kit
$110.00
Aftermarket Denso Alternator Rebuild Kit 13795RK

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

Description

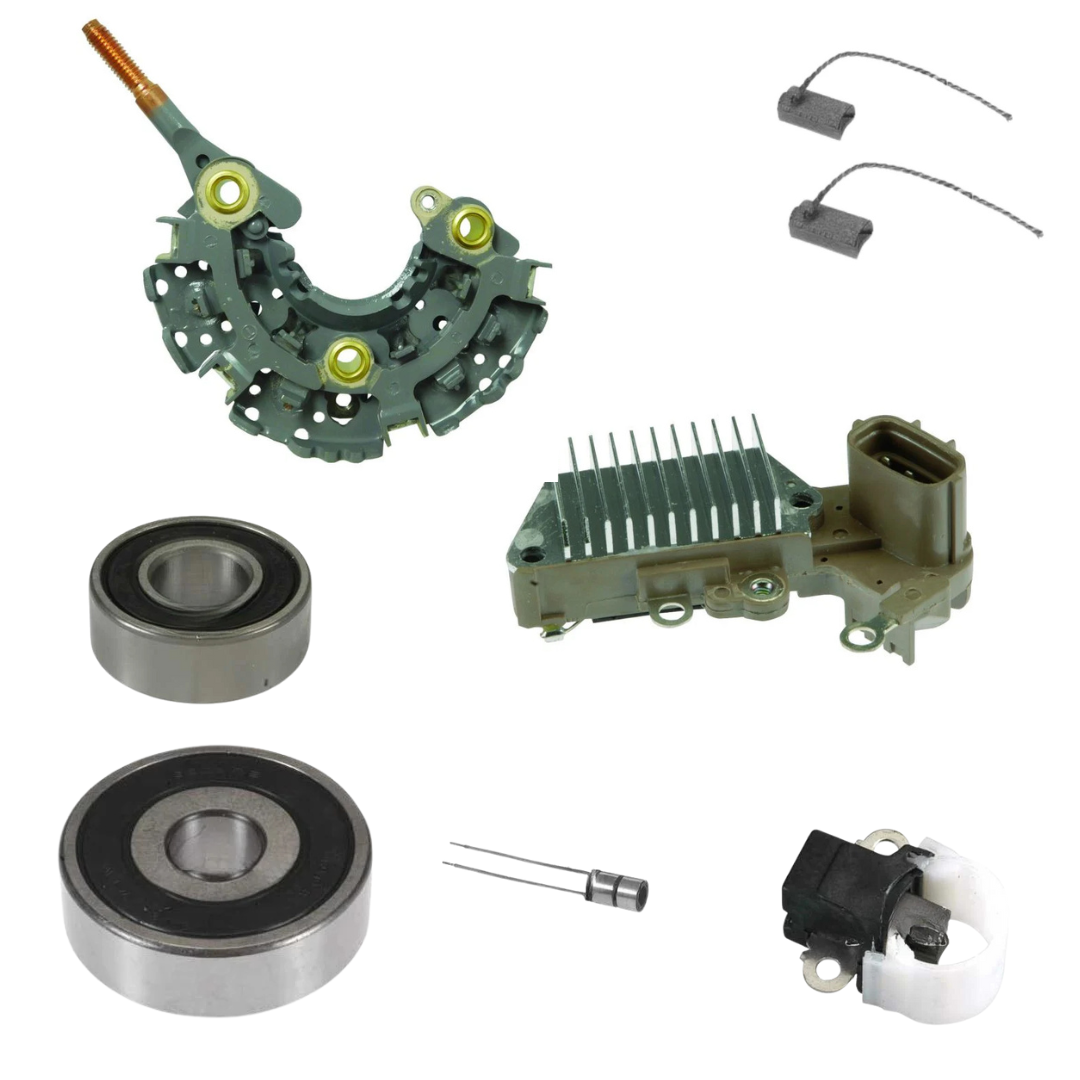

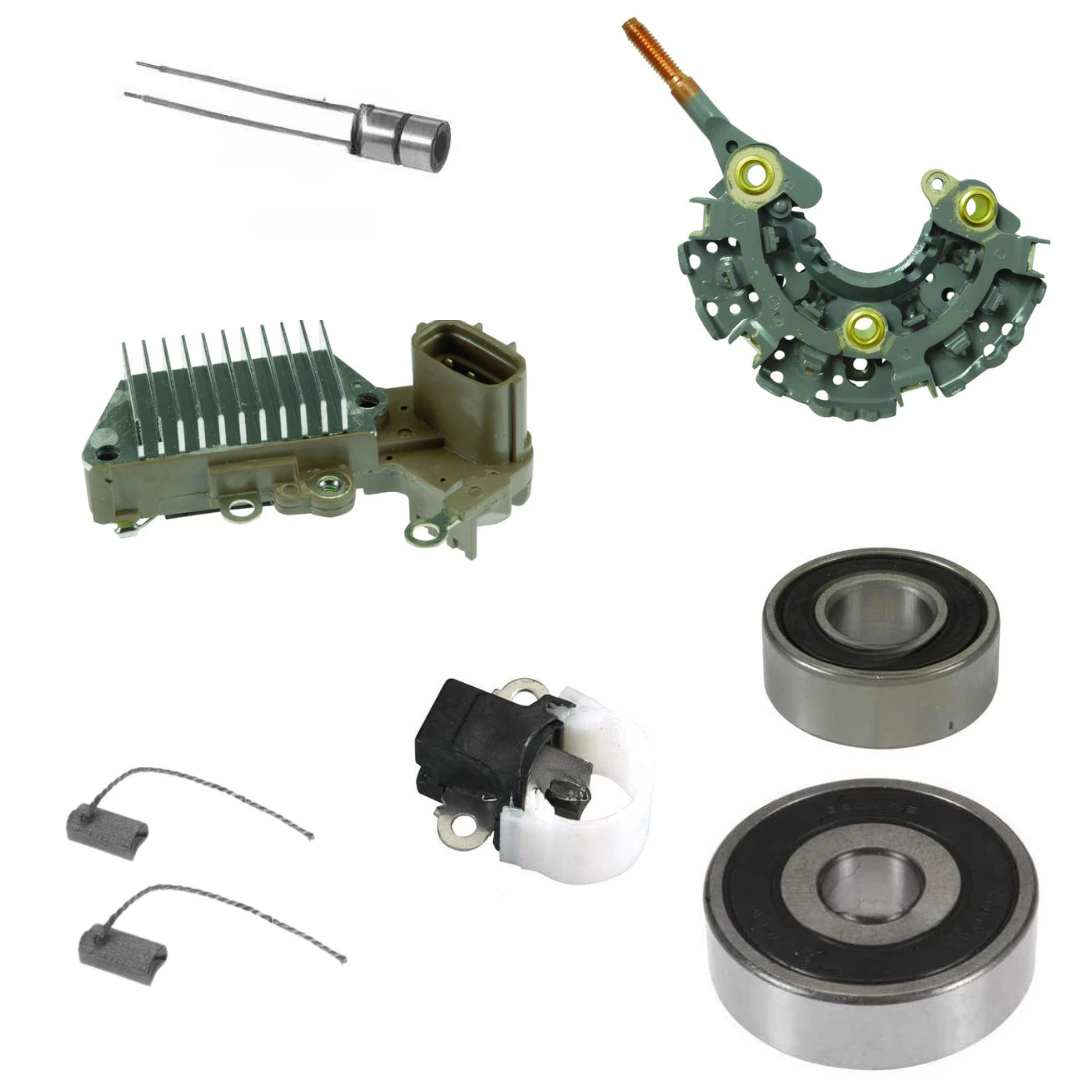

INCLUDED IN REBUILD KIT:

Bearing DE
Bearing SRE
Brushes
Brush Holder
Rectifier
Slip Ring
Voltage Regulator

NOT INCLUDED IN REBUILD KIT:

Bearing Cover
Bearing Retainer
Cover 1
Cover 2
Cover 3
Connector
Diodes Negative
Diodes Positive
Insulator 1
Insulator 2
Nut 1
Nut 2
Nut 3
Pulley
 Pulley Nut
Rotor
Rectifier Cover
Repair Circuit
 Repair Harness
Screw 1
Screw 2
Screw 3
Screw 4
Seal 1
Seal 2
Spacer
Stator
Thru Bolt
Washer Spring
Washer Ring

Specifications

  • MFR:DENSO
  • AMPERAGE:80
  • DESIGN:IR/IF
  • FEATURE 1:100% New
  • PLUG CLOCK:12:00 Plug Clock
  • PLUG CODE:318
  • PULLEY CLASS:S4
  • ROTATION:CW
  • SPECS FOR:Denso IR/IF
  • SPECS:80 Amp/12 Volt, CW, 4-Groove Pulley
  • VOLTAGE:12

    USED ON

    • Suzuki (1999-2004) ** Suzuki - Europe (1998-2002)

      Replaces

      • Denso 102211-1430, 102211-2430, Suzuki 31400-77E11, 31400-77E12

      LESTER NUMBERS

      • 13795
