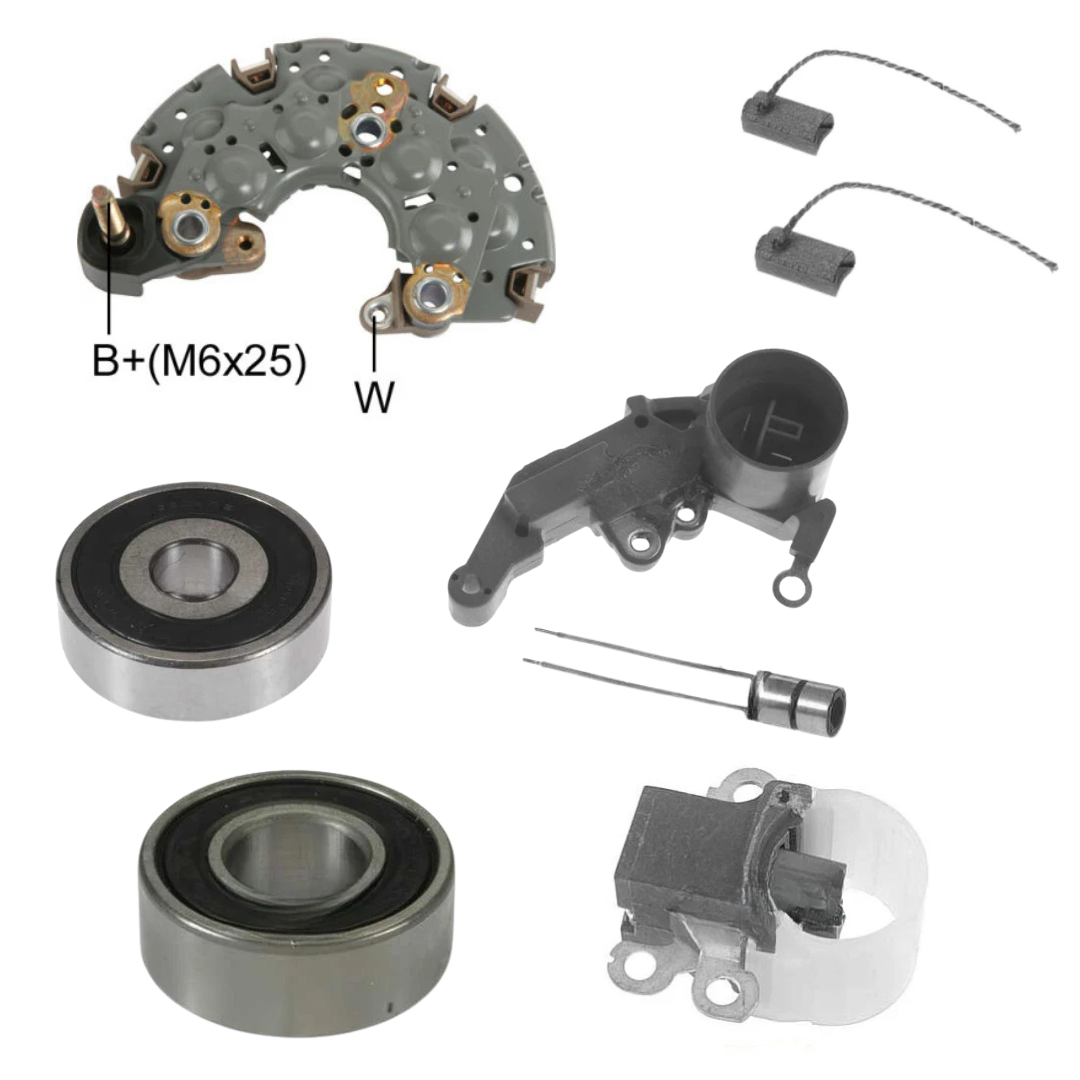

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Brush Holder
Rectifier
Slip Ring
Terminal Block
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Diodes Negative
Diodes Positive
Frame DE
Frame SRE
Insulator 1
Insulator 2
Nut 1
Nut 2
Pulley Nut
Rotor
Screw 1
Screw 2
Screw 3
Screw 4
Screw 5
Seal 1
Stator
Thru Bolt
Washer Ring
Washer Spring
Specifications
- MFR:DENSO
- AMPERAGE:125
- DESIGN:ER/IF
- FEATURE 1:100% New
- PLUG CLOCK:09:00 Plug Clock
- PLUG CODE:285
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Denso ER/IF
- SPECS:125 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Chrysler (1998-2000) ** Dodge (1998-2000) ** Plymouth (1996-2000)
Replaces
- Chrysler 04609230AA, 4609230, 4609230AA, Denso 121000-4260, 121000-4261
LESTER NUMBERS
- 13741
