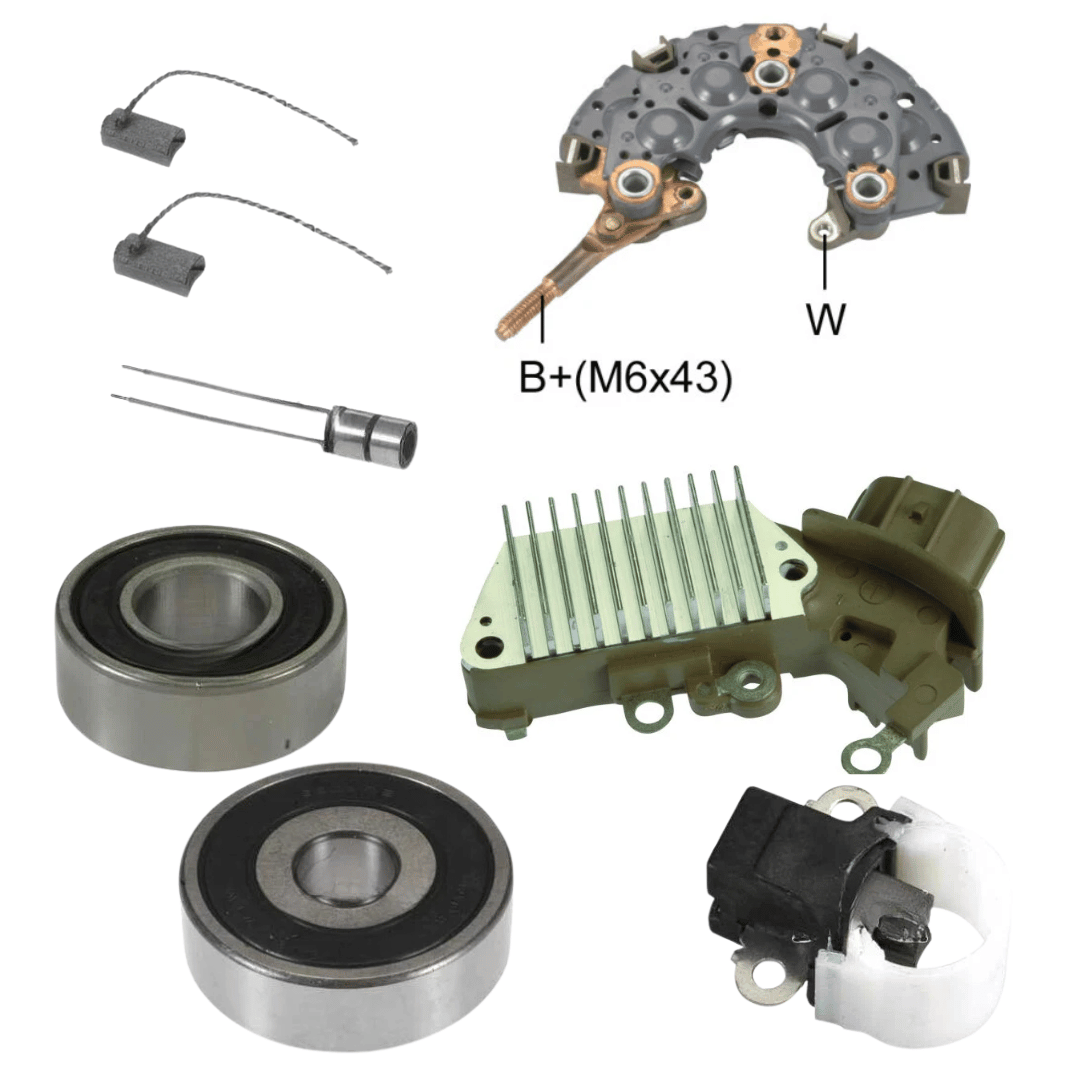

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Diode Negative
Diode Positive
Ground Strap
Insulator 1
Insulator 2
Nut 1
Nut 2
Pulley
Pulley Nut
Rotor
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Stator
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- AMPERAGE:100
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:02:00 Plug Clock
- PLUG CODE:312
- PULLEY CLASS: S6
- ROTATION:CW
- SPECS FOR:Dense IR/IF
- SPECS:100 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Toyota (1998-2004)
Replaces
- Denso 101211-7520, 102211-0650, Toyota 27060-0A030, 27060-0A030-84, 27060-0A050, 27060-0A050-84, 27060-0A05084
LESTER NUMBERS
- 13706
