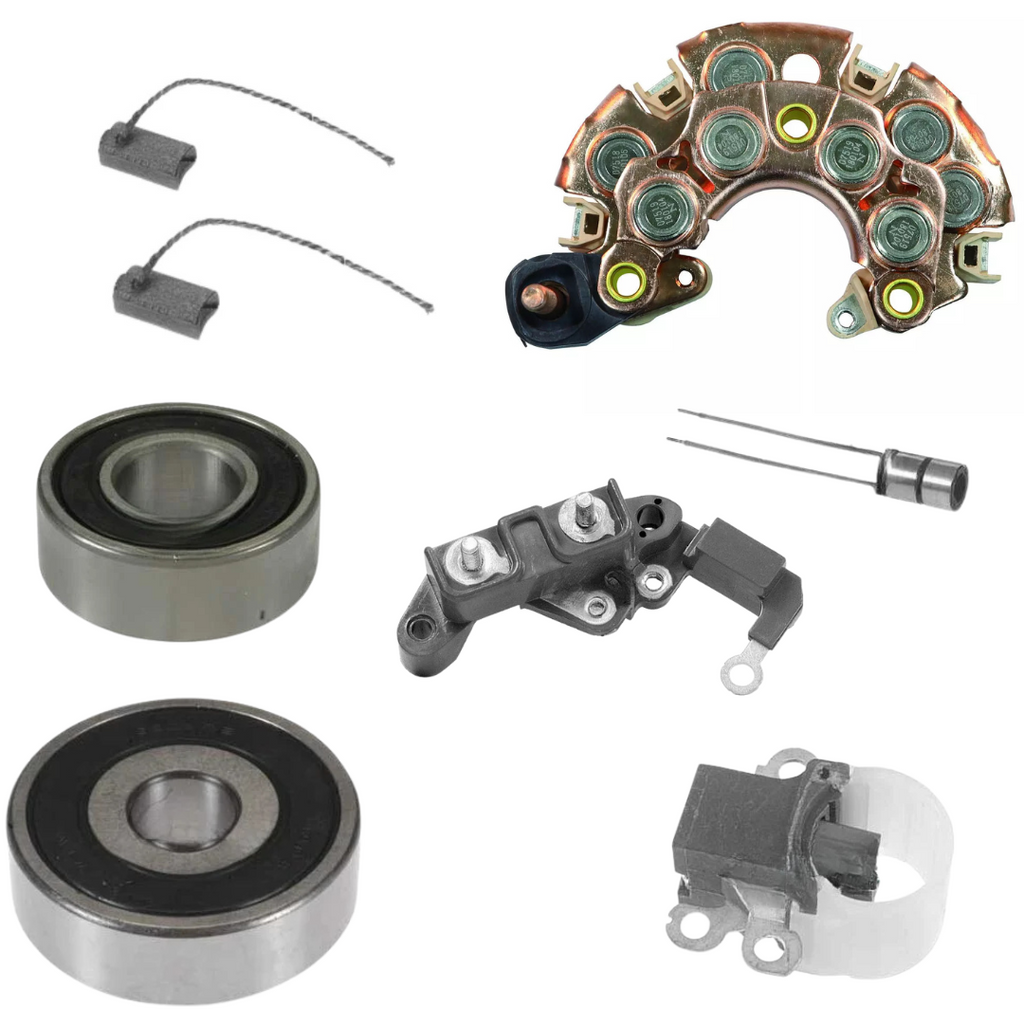

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Brush Holder
Rectifier
Slip Ring
Terminal Block
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Cover 1
Diodes Negative
Diodes Positive
Frame DE
Frame SRE
Ground Strap
Ground Stud
Insulator 1
Insulator 2
Insulator 3
Mounting Stud
Nut 1
Nut 2
Nut 3
Pulley
Rotor
Rectifier Cover 1
Rectifier Cover 2
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Stator
Thru Bolt
Washer Ring
Washer Spring
Voltage Regulator
Specifications
- MFR:DENSO
- AMPERAGE:90
- DESIGN:ER/IF
- FEATURE 1:100% New
- PLUG CLOCK:01:00 Plug Clock
- PLUG CODE:320
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Denso ER/IF
- SPECS:90 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Dodge (1997-1998) ** Jeep (1991-1998) ** Jeep - Europe (1993-1998)
Replaces
- Chrysler 56005684, 56005685, 56005685AB, 59005685, Denso 121000-3440, 121000-3450, 121000-3452, 121000-3600
LESTER NUMBERS
- 13341, 13442
