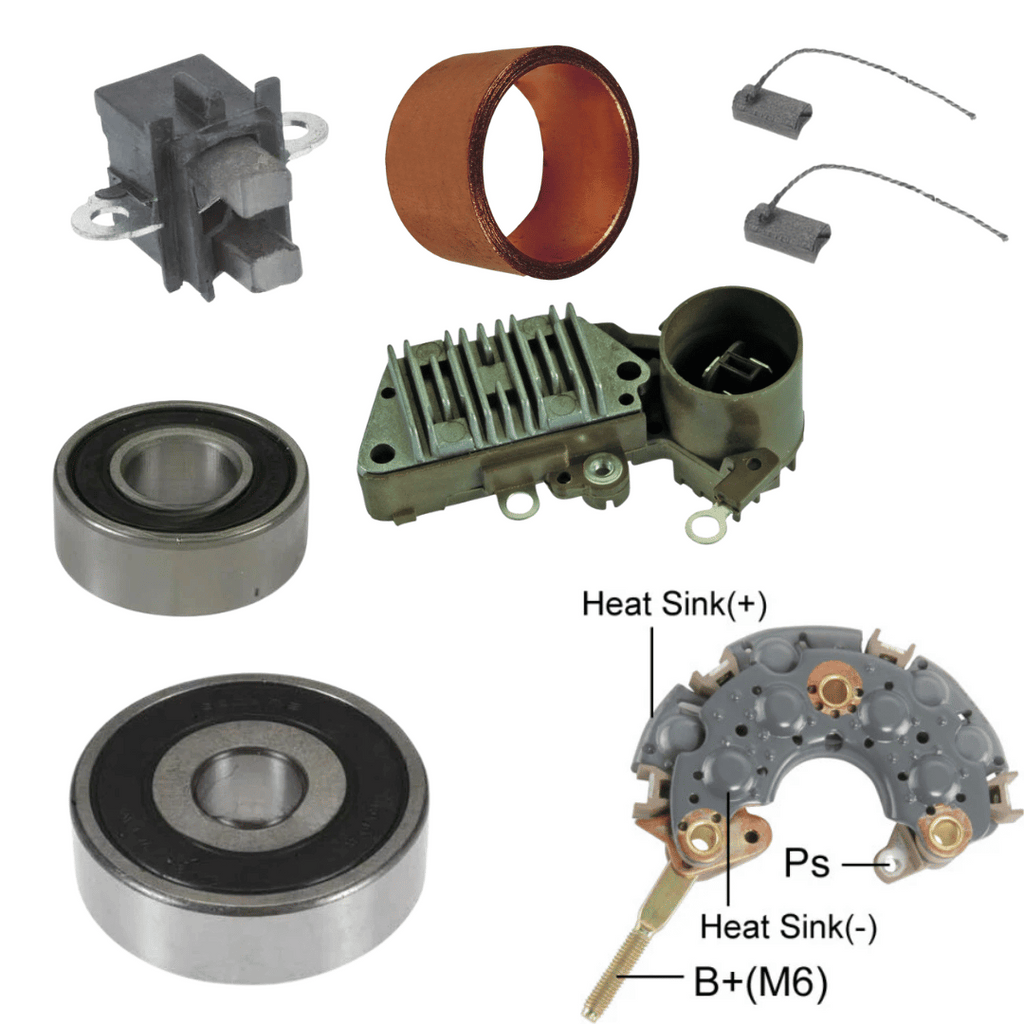

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Cover 1
Diodes Negative
Diodes Positive
Ground Stud
Insulator 1
Insulator 2
Nut 1
Nut 2
Nut 3
Pulley
Pulley Nut
Rotor
Repair Harness
Screw 1
Screw 2
Screw 3
Seal 1
Spacer
Stator
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- AMPERAGE:60
- DESIGN:IR/IF
- FEATURE 1:100% New
- NOTE 1: Standard lamp function - no output
- NOTE 2: Similar to Lester 13241N except 13241N w/ active lamp function
- PLUG CLOCK:04:00 Plug Clock
- PLUG CODE:280
- PULLEY CLASS: S4
- ROTATION:CW
- SPECS FOR:Dense IR/IF
- SPECS:60 Amp/12 Volt, CW, 4-Groove Pulley
- VOLTAGE:12
USED ON
- Toyota (1989-1992)
Replaces
- Denso 100211-7180, Toyota 27060-65020, 27060-65020-84
LESTER NUMBERS
- 13339
