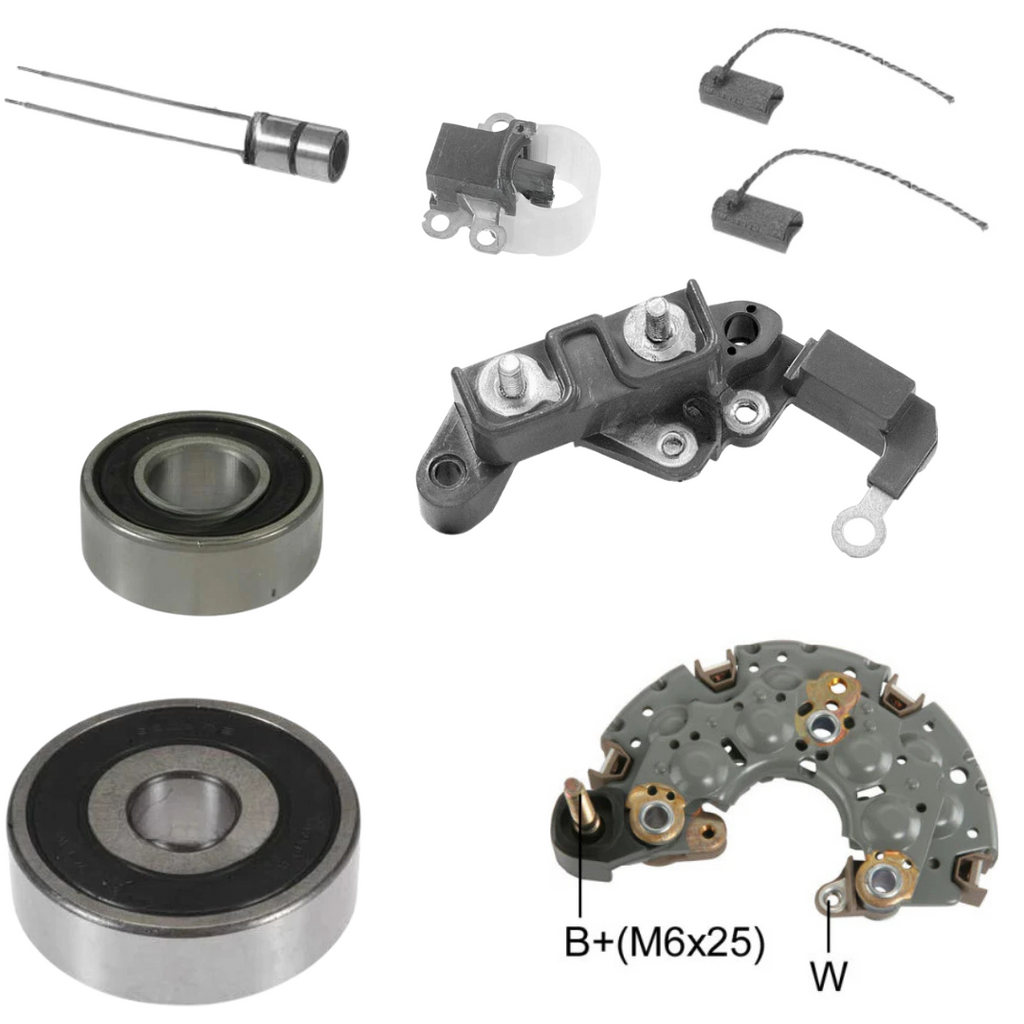

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes
Brush Holder
Rectifier
Slip Ring
Terminal Block
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Connector
Diodes Negative
Diodes Positive
Frame DE
Frame SRE
Ground Strap
Insulator 1
Insulator 2
Mounting Stud
Nut 1
Nut 2
Nut 3
Pulley
Pulley Nut
Rotor
Rectifier Cover
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Stator
Stud
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- AMPERAGE:120
- DESIGN:ER/IF
- FEATURE 1:100% New
- PLUG CLOCK:01:00 Plug Clock
- PLUG CODE:320
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Denso ER/IF
- SPECS:120 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Chrysler (1990-1995) ** Chrysler - Europe (1990-1995) ** Dodge (1990-1995) ** Plymouth (1990-1995)
Replaces
- Chrysler 5234033, Denso 121000-4070
LESTER NUMBERS
- 13311
