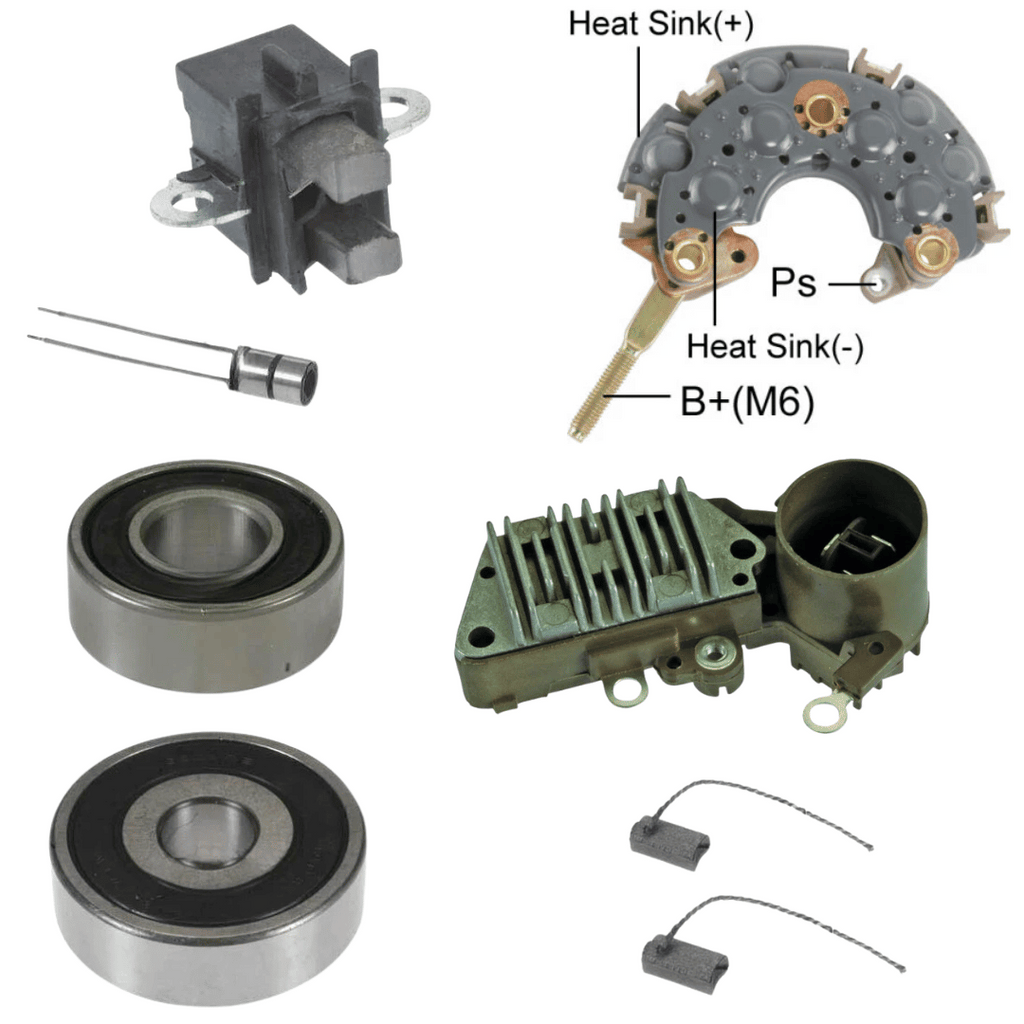

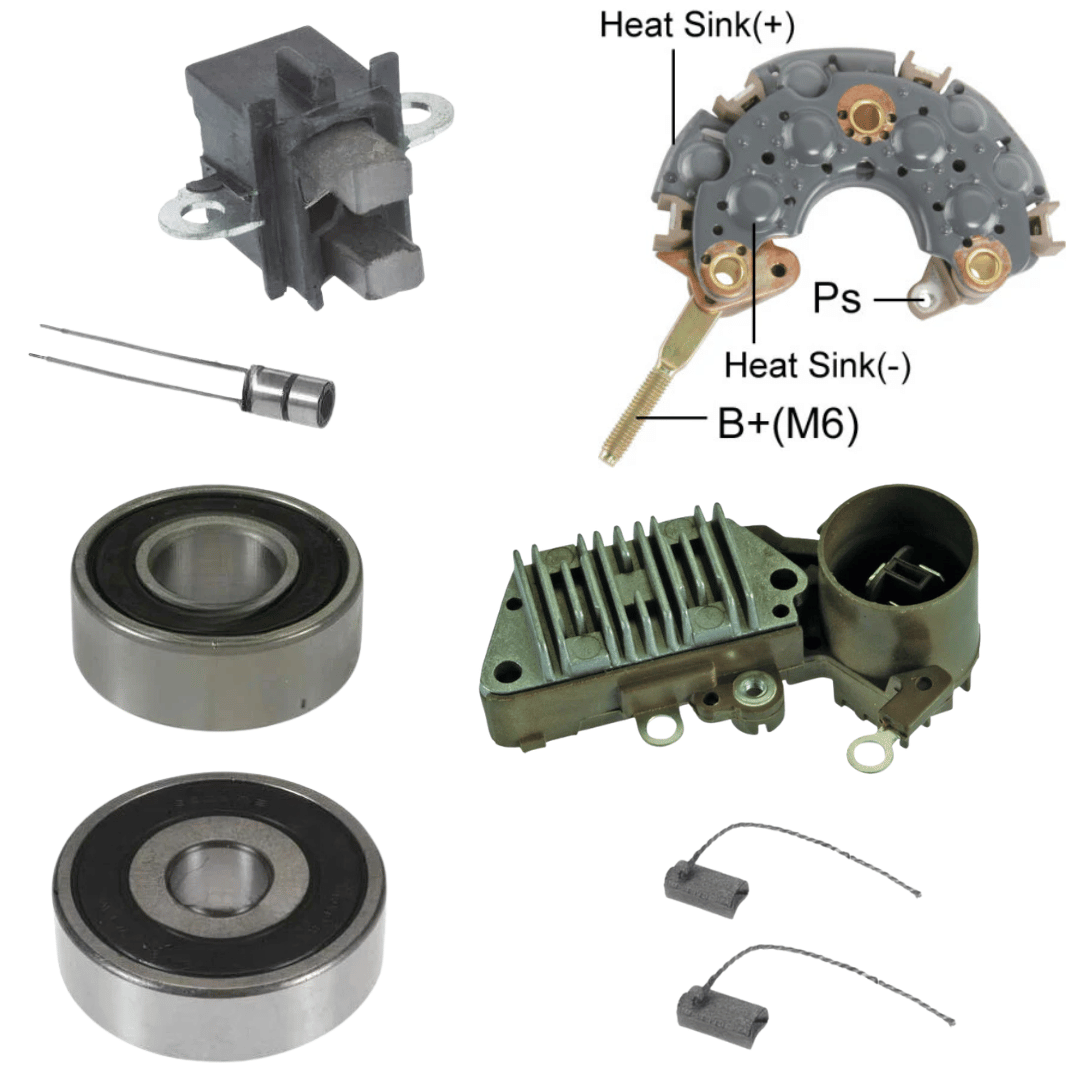

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Diode Negative
Diode Positive
Insulator 2
Nut 1
Nut 2
Nut 3
Pulley
Pulley Nut
Rotor
Screw 1
Screw 3
Screw 4
Seal 1
Stator
Thru Bolt
Washer Spring
Specifications
- MFR:DENSO
- AMPERAGE:70
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:03:00 Plug Clock
- PLUG CODE:280
- PULLEY CLASS: S6
- ROTATION:CW
- SPECS FOR:Dense IR/IF
- SPECS:70 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Toyota (1988-1991)
Replaces
- Denso 100211-3320, 100211-3321, 100211-7460, Toyota 27060-62010, 27060-62011, 27060-62011-84, 27060-62012, 27060-62012-84
LESTER NUMBERS
- 13277
