Aftermarket Denso Alternator Rebuild Kit 13103RK

Denso
13103RK
Out of stock
Rebuild Kit
$110.00

Aftermarket Denso Alternator Rebuild Kit 13103RK

Shipping

In-stock orders ship out same day or next business day via USPS.

Pre Order

Pre-orders ship out in the order received within 7–21 business days.

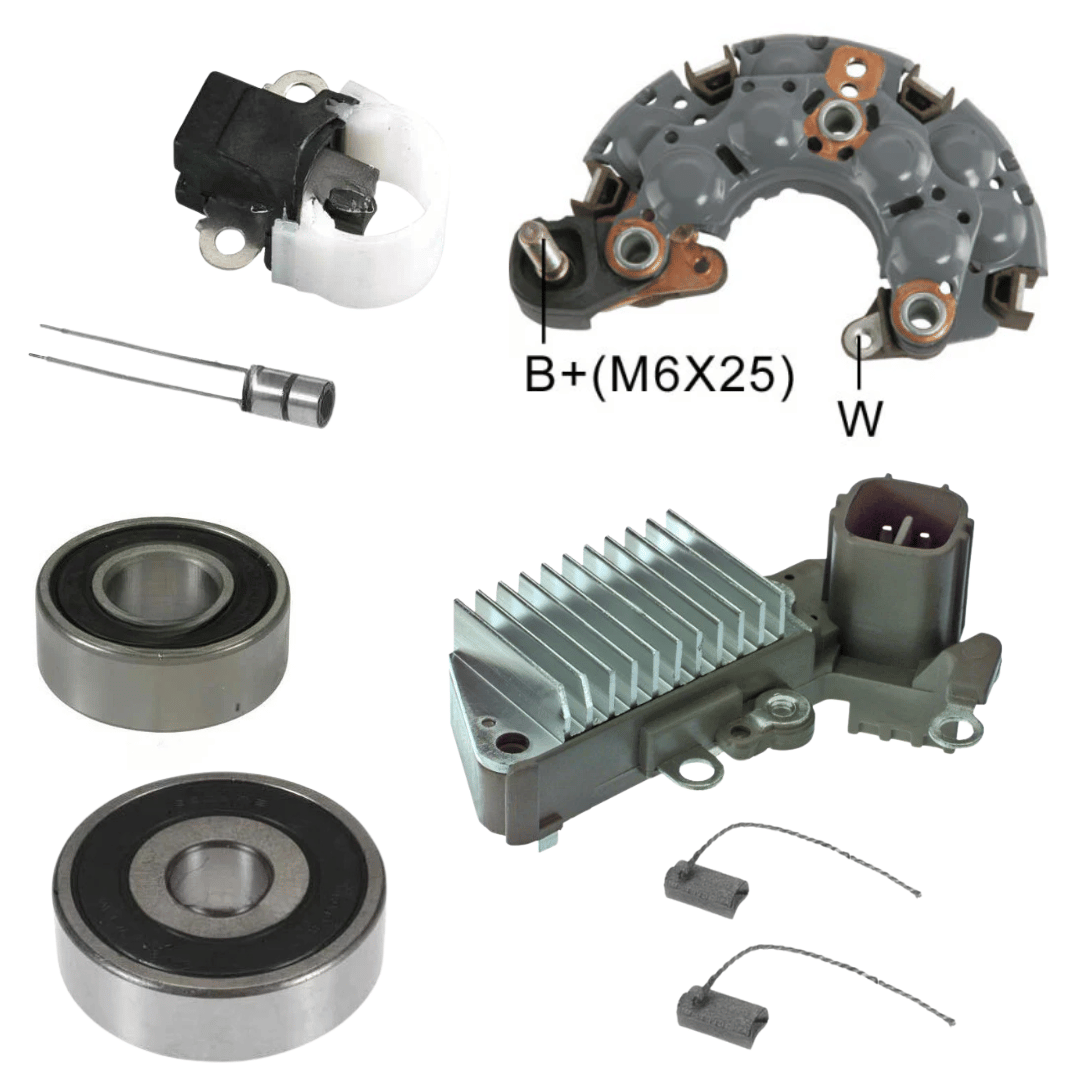

INCLUDED IN REBUILD KIT:

Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator

NOT INCLUDED IN REBUILD KIT:

Bearing Cover
Bearing Retainer
Diodes Negative
Diodes Positive
Ground Strap
Insulator 2
Nut 1
Nut 2
Screw 1
Screw 2
Screw 3
Seal 1
Seal 2
Spacer
Stator
Thru Bolt
Washer Ring

Specifications

  • MFR:DENSO
  • AMPERAGE:105
  • DESIGN:IR/IF
  • FEATURE 1:100% New
  • PLUG CLOCK:12:00 Plug Clock
  • PLUG CODE:296
  • PULLEY CLASS:S6
  • ROTATION:CW
  • SPECS FOR:Denso IR/IF
  • SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley
  • VOLTAGE:12

USED ON

  • Acura (1999-2003) ** Honda (2000-2001) ** Honda - China (2001-2001)

Replaces

  • Acura 06311-P8E-A21RM, 06311-PGE-506RM, 31100-P8E-A01, 31100-P8E-A01RM, 31100-P8E-A02, 31100-P8E-A21, 31100-P8E-A21RM, 31100-P8E-A22, 31100-P8E-A22RM, CJV33, CLG68, CLH08, Denso 102211-0680, 102211-0681, 102211-1330, 102211-1331, 102211-3080, Honda 06311-P8E-A21RM, 06311-PGE-506RM, 31100-P8E-A020, 31100-P8E-A21, 31100-P8E-A21RM, 31100-P8E-A22, 31100-P8E-A22RM, CLG68

LESTER NUMBERS

  • 13103, 13835
