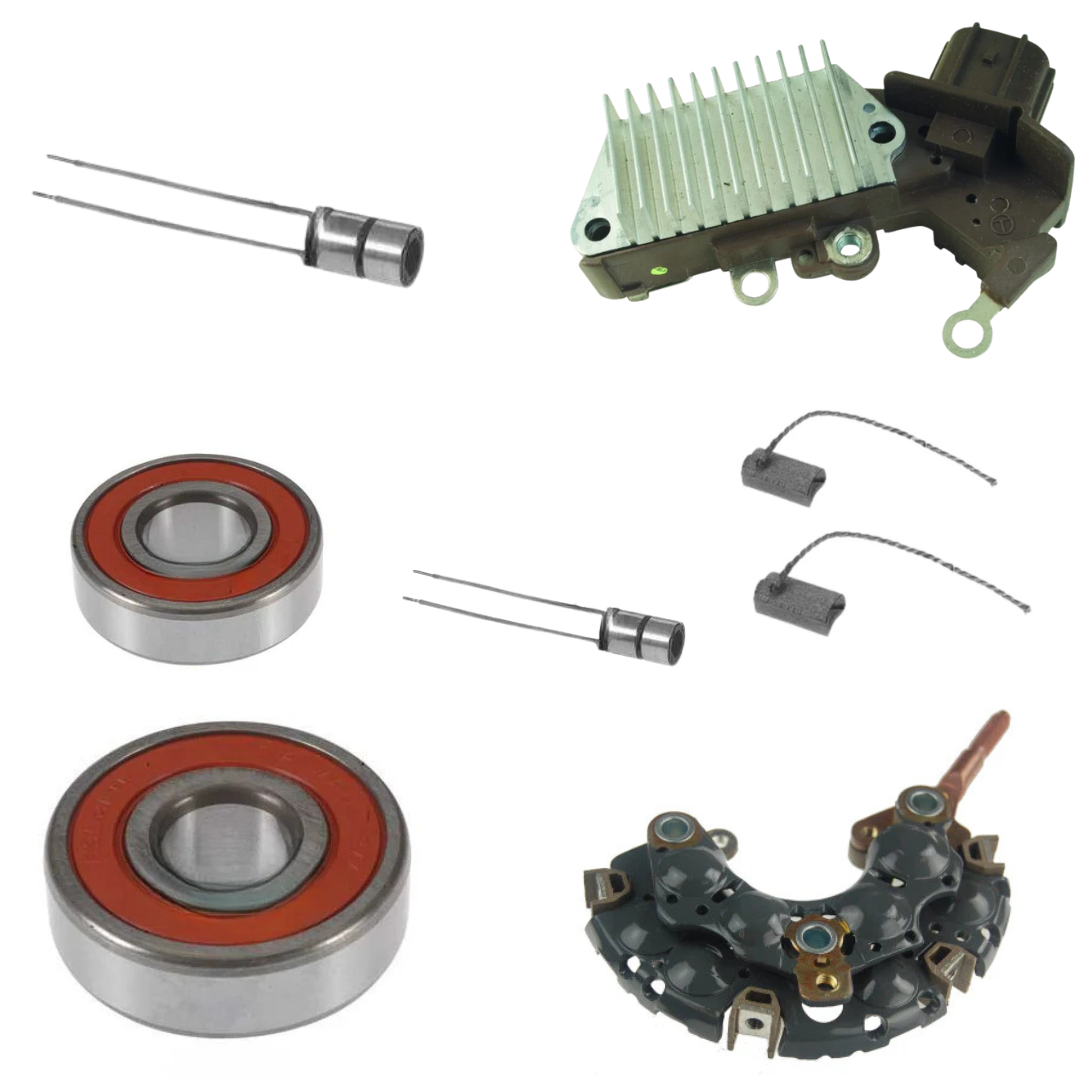

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Brush Spring
Connector
Diodes Negative
Diodes Positive
Insulator 1
Insulator 2
Nut 1
Pulley Nut
Rectifier Cover
Repair Harness
Screw 1
Screw 2
Seal 1
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- Mfr Series:HAIRPIN
- AMPERAGE:80
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:Conventional Stator Design
- PLUG CLOCK:09:00 Plug Clocking
- PLUG CODE:917
- PULLEY CLASS:S4
- ROTATION:CW
- SPECS FOR:Denso Hairpin IR/IF
- SPECS:80 Amp/12 Volt, CW, 4-Groove Pulley
- VOLTAGE:12
USED ON
- Toyota (2006-2015)
Replaces
- Denso 104210-8180, 104210-840, 104210-8400, 104210-8401, Toyota 27060-21150, 27060-21151
LESTER NUMBERS
- 11203, 11505
