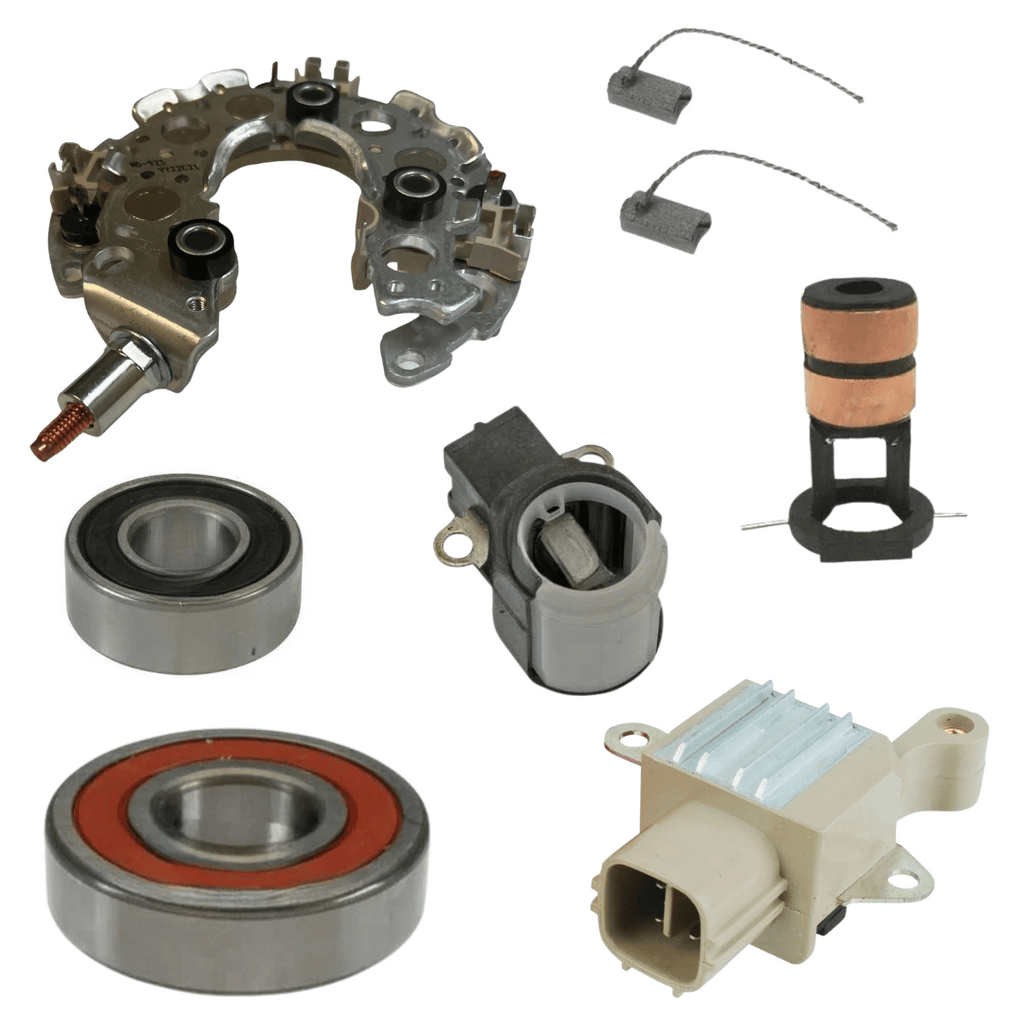

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Cover 1
Frame DE
Frame SRE
Insulator 1
Pulley
Rectifier Cover
Screw 2
Stator
Washer Ring
Specifications
- MFR:DENSO
- Mfr Series:HAIRPIN
- AMPERAGE:100
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:12:00 Plug Clocking
- PLUG CODE:295
- PULLEY CLASS:SC6
- ROTATION:CW
- SPECS FOR:Alternator - Denso Hairpin IR/IF
- SPECS:100 Amp/12 Volt, CW, 6-Groove Clutch Pulley
- VOLTAGE:12
USED ON
- Scion (2011-2016) ** Toyota (2009-2015)
LESTER NUMBERS
- 11402
Replaces
- Denso 104210-2270, 104210-2340, 104210-2341, 104210-2344, 104210-8431, Scion 27060-36010, 27060-36011, Toyota 27060-0V010, 27060-36010, 27060-36011
