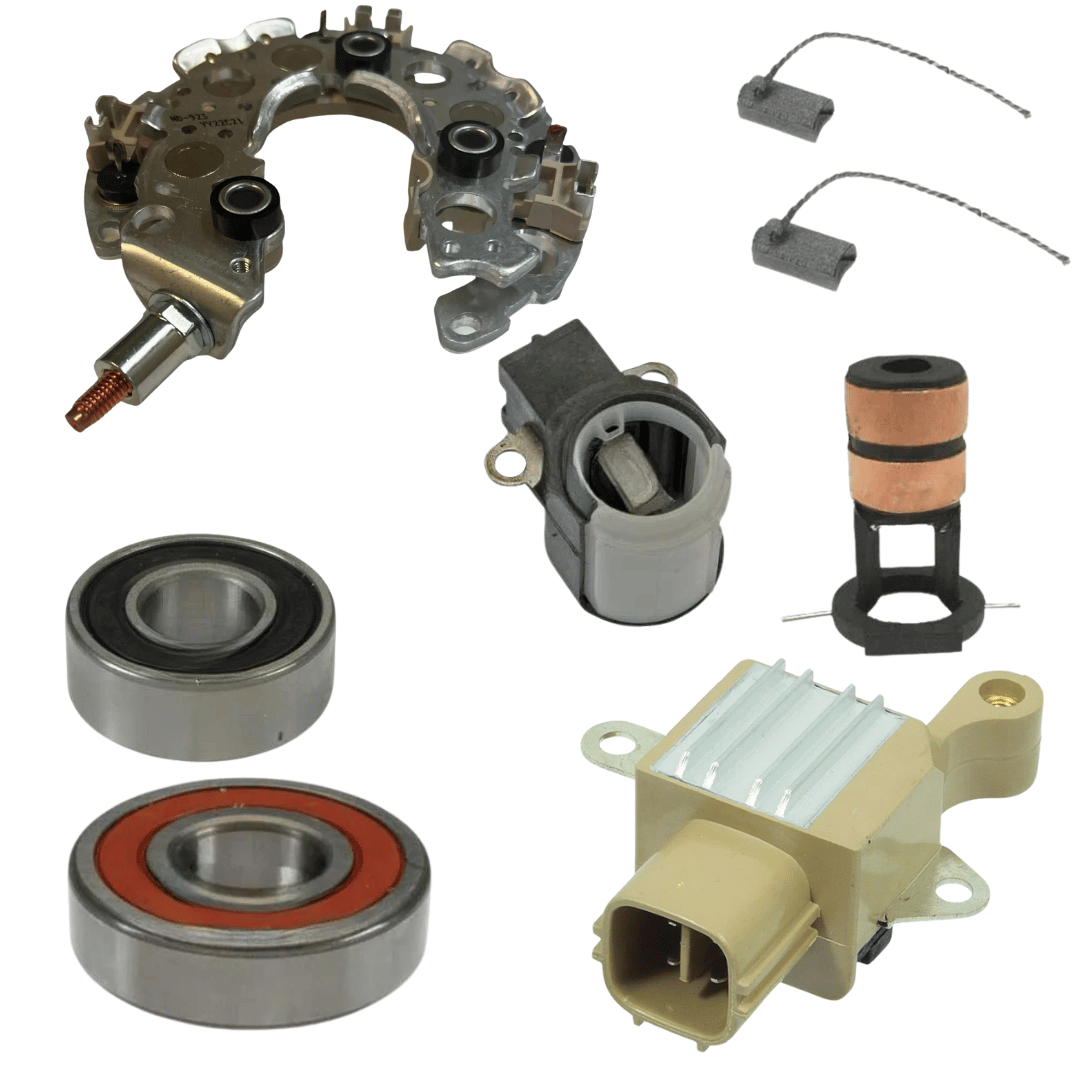

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Cover
Frame DE
Frame SRE
Insulator 1
Insulator 2
Nut 1
Nut 2
Nut 3
Nut 4
Post
Pulley
Rectifier Cover
Rotor
Screw 1
Screw 2
Screw 3
Stator
Washer Spring
Specifications
- MFR:DENSO
- Mfr Series:HAIRPIN
- AMPERAGE:100
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:12:00 Plug Clocking
- PLUG CODE:295
- PULLEY CLASS:S7
- ROTATION:CW
- SPECS FOR:Alternator - Denso Hairpin IR/IF
- SPECS:100 Amp/12 Volt, CW, 7-Groove Pulley
- VOLTAGE:12
USED ON
- Toyota (2007-2009) ** Toyota - China (2007-2012)
Replaces
- Denso 104210-4920, 104210-4921, 9664219-492, Toyota 27060-31120, 27060-31120-84
LESTER NUMBERS
- 11324
