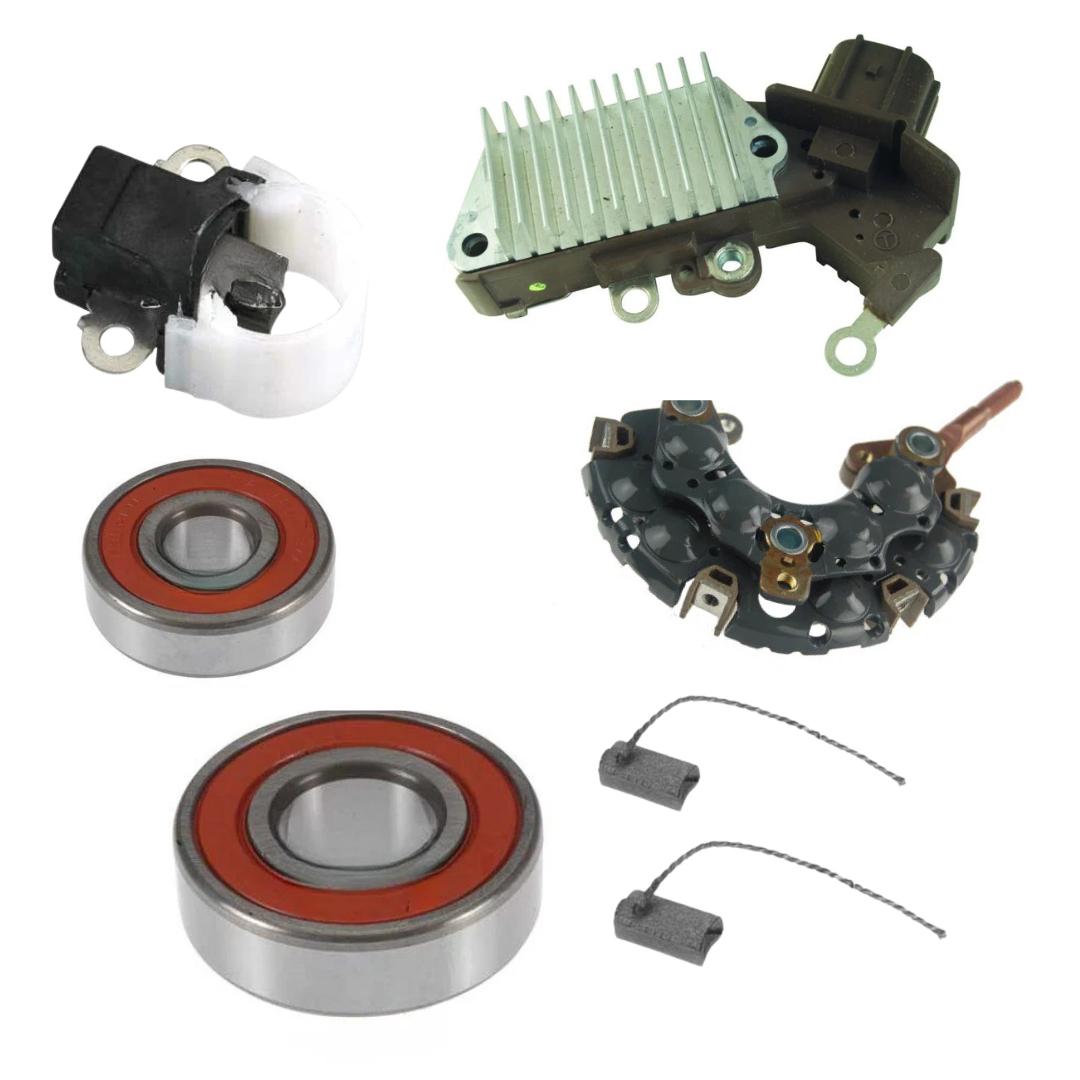

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Voltage Regulator
NOT INCLUDED IN REBUILD KIT :
Bearing Cover
Bearing Retainer
Connector
Cover 1
Frame DE
Ground Strap
Insulator 1
Insulator 2
Nut 1
Nut 2
Nut 3
Nut 4
Screw 1
Screw 2
Screw 4
Seal 1
Seal 2
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- Mfr Series:HAIRPIN
- AMPERAGE:80
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:11:00 Plug Clocking
- PLUG CODE:917
- PULLEY CLASS:S7
- ROTATION:CW
- SPECS FOR:Alternator - Denso Hairpin IR/IF
- SPECS:80 Amp/12 Volt, CW, 7-Groove Pulley
- VOLTAGE:12
USED ON
- Toyota (2005-2006)
Replaces
- Denso 104210-8110, Toyota 27060-75310, 27060-75310-84
LESTER NUMBERS
- 11194
