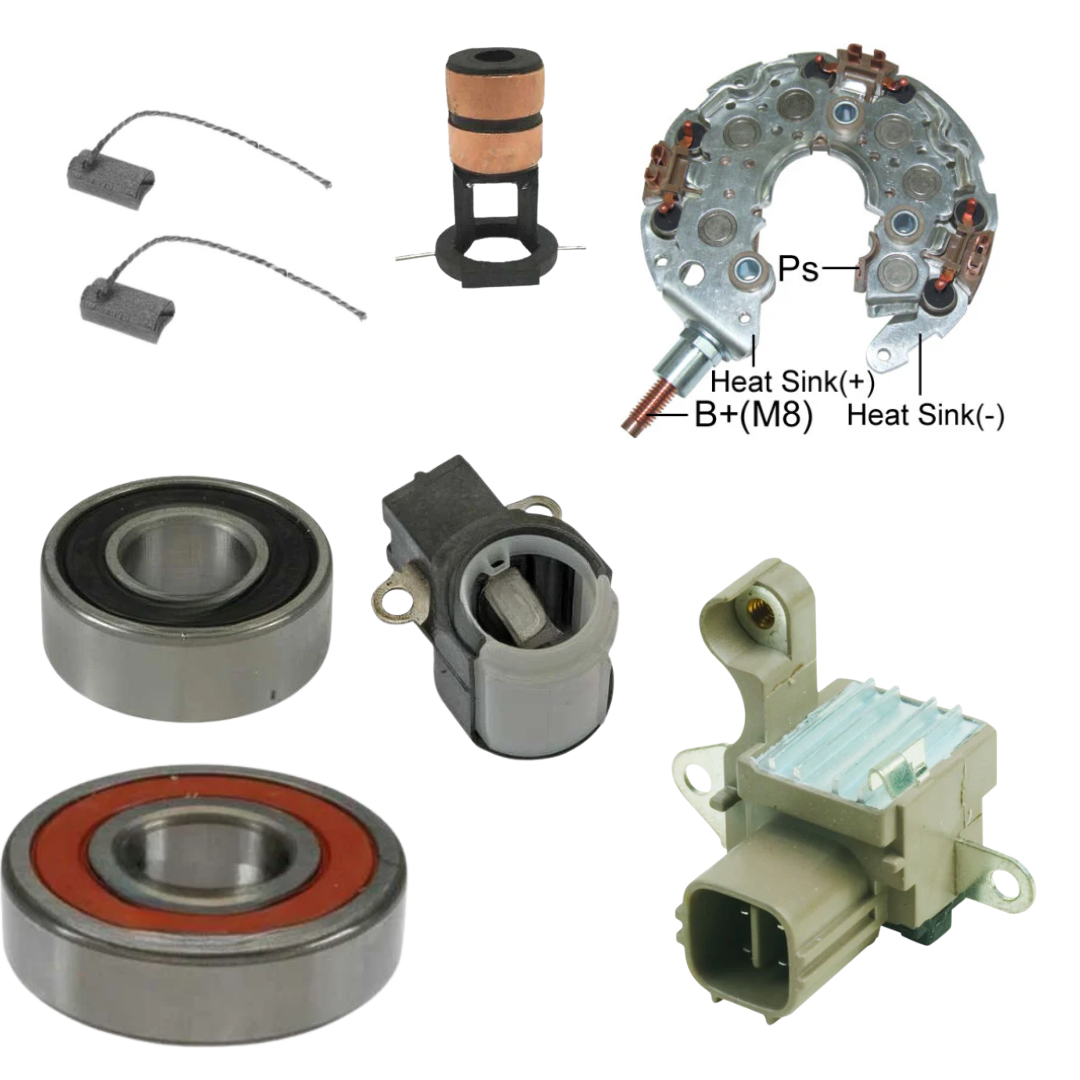

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Cover 1
Frame DE
Frame SRE
Insulator 1
Pulley
Pulley Nut
Rotor
Rectifier Cover
Screw 1
Screw 2
Stator
Washer Ring
Specifications
- MFR:DENSO
- AMPERAGE:130
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:11:00 Plug Clocking
- PLUG CODE:933
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Alternator - Denso Hairpin IR/IF
- SPECS:130 Amp/12 Volt CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Acura (2003-2004)
VEHICLE APPLICATION
|
Acura |
MDX V6-3.5L 2003-2004 TL V6-3.2L 2004 |
LESTER NUMBERS
- 11099
Replaces
- Acura 31100-RDJ-A01, CSC10, Denso 104210-3100
