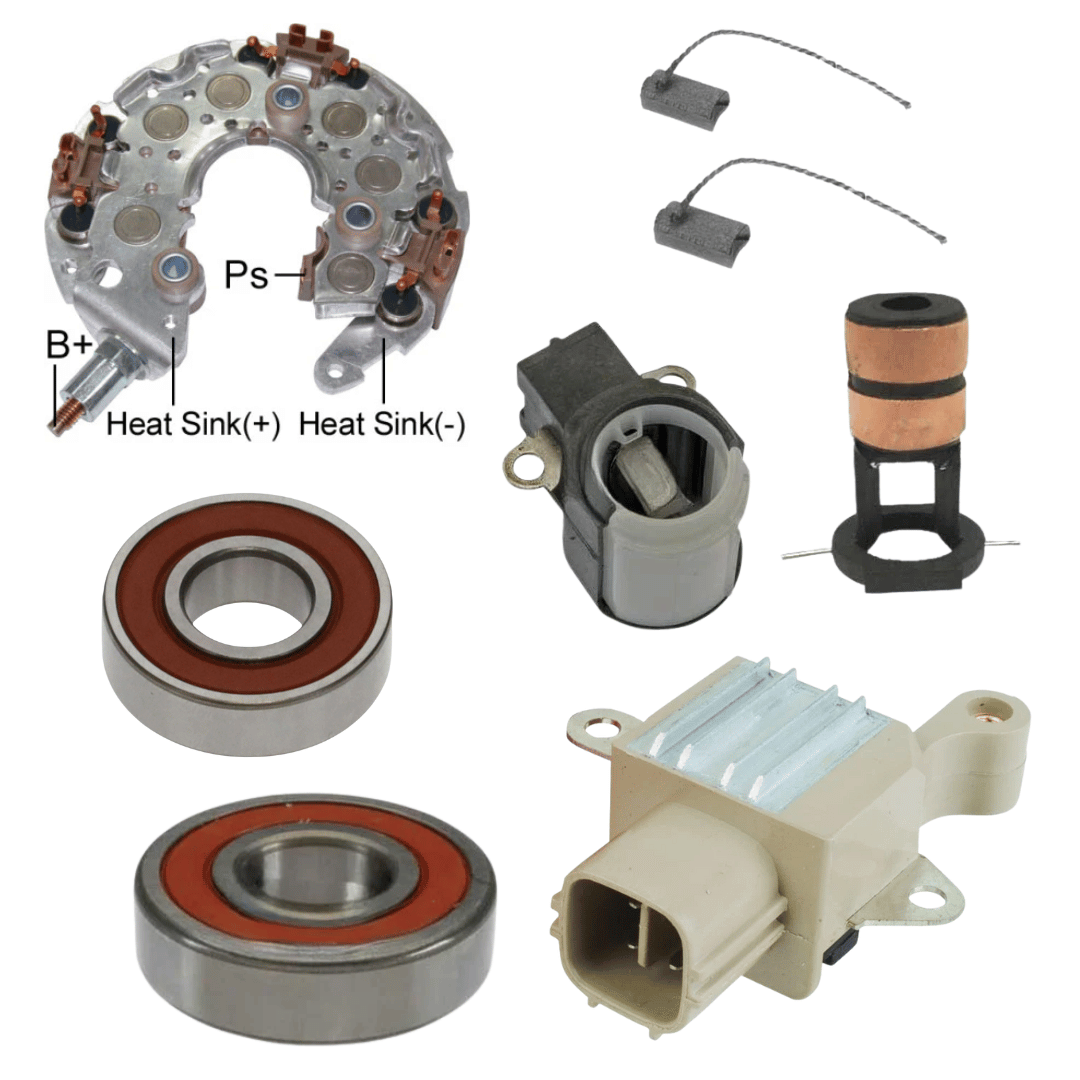

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Cover 1
Cover 2
Frame DE
Frame SRE
Insulator 1
Insulator 2
Nut 1
Nut 2
Pulley
Rectifier Cover
Screw 1
Screw 2
Stator
Washer Ring
Washer Spring
Specifications
- MFR:DENSO
- Mfr Series:HAIRPIN
- AMPERAGE:130
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:03:00 Plug Clocking
- PLUG CODE:917
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Alternator - Denso Hairpin IR/IF
- SPECS:130 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Lexus (2004-2006) ** Lexus - Europe (2003-2006) ** Toyota (2004-2007) ** Toyota - Europe (2003-2010)
Replaces
- Denso 104210-3650, 104210-3651, 104210-3652, 104210-3660, 104210-3662, 104210-3750, 104210-3751, 9664219-365, 9664219-375, Lexus 27060-0A100, 27060-0A130, 27060-0A130-84, 27060-20280, 27060-20280-84, 27060-20290-84, Toyota 27060-0A100, 27060-0A130, 27060-0A130-84, 27060-20280, 27060-20280-84, 27060-20290, 27060-20290-84
LESTER NUMBERS
- 11032
