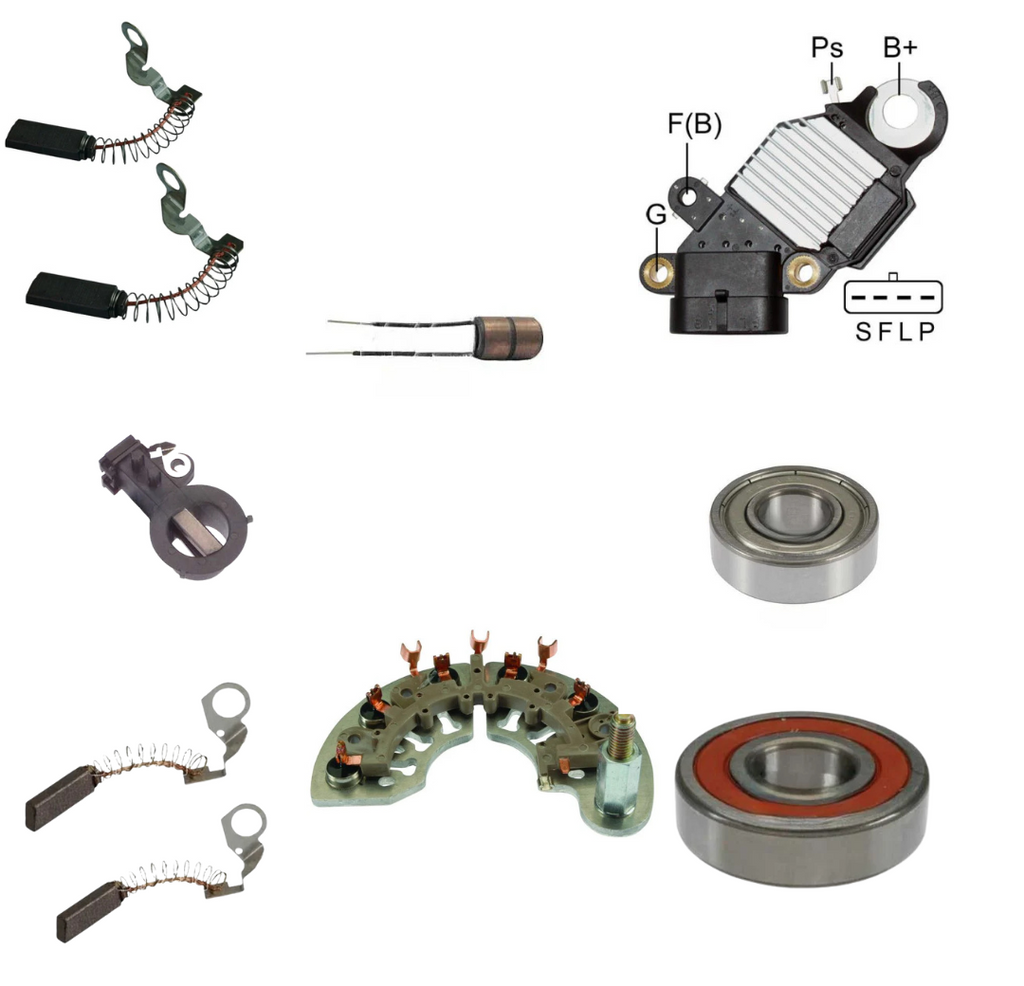

INCLUDED IN REBUILD KIT:
Bearing DEF
Brushes
Brushes Holder Assembly
Rectifier
Slip Ring
Specifications
- MFR:DELCO
- Mfr Series:AD230
- AMPERAGE:105
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:WAI-Transpo premium rectifier & regulator
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- PLUG CLOCK:12:00 Plug Clock
- PLUG CODE:314
- PULLEY CLASS:S6
- PULLEY NOTE:62mm OD
- ROTATION:CW
- SPECS FOR:Delco AD230 Series IR/IF
- SPECS:105 Amp/12 Volt, CW, 6-Groove/62mm OD Pulley, 12:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (2002-2004) ** Chevrolet (2002-2004)
Replaces
- Delco 10327069, 10333166, 10442783, GM 10464475, 10464496, 19244735, Original Reference Number 10442783M
LESTER NUMBERS
- 8287
