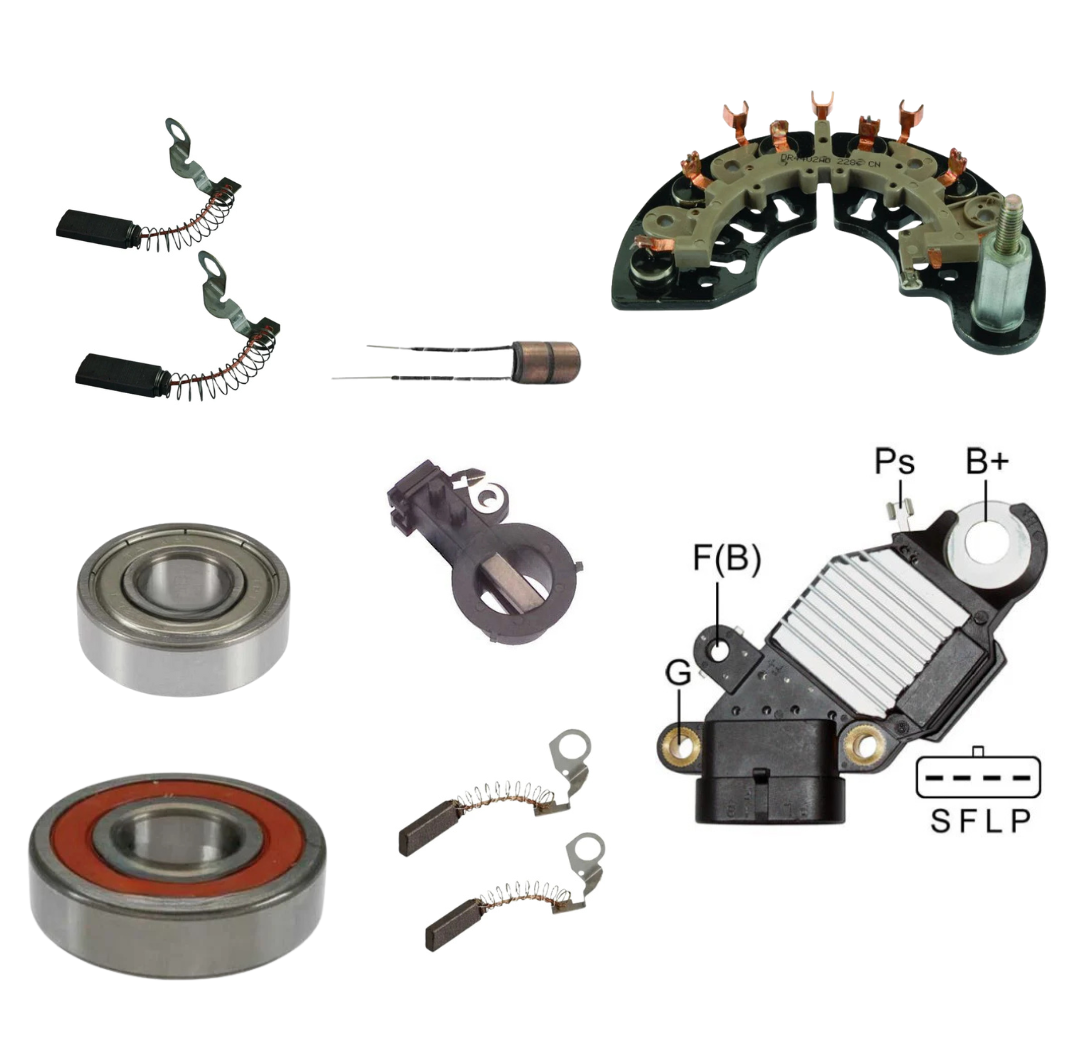

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Insulator
Insulator 2
Insulator 3
Pulley Nut
Pulley
Rotor
Screw
Spacer
Tolerance Ring
Specifications
- MFR:DELCO
- Mfr Series:AD244
- AMPERAGE:145
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:WAI-Transpo premium rectifier & regulator
- FEATURE 3:Premium, hi-temperature WBD bearings
- FEATURE 4:Hi-temperature class-H windings
- FEATURE 5:Precision CNC machined castings
- FEATURE 6:OE performance output curve
- PLUG CLOCK:12:00 Plug Clock
- PLUG CODE:314
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Delco AD244 Series IR/IF
- SPECS:145 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Buick (2004-2006) ** Cadillac (2002-2005) ** Chevrolet (1999-2016) ** GMC (1999-2016) ** Hummer (2003-2007) ** Isuzu (2003-2006) ** Saab (2005-2006)
Replaces
- AM General 6019239, Delco 10464405, 10464443, 10464453, 10464456, 10464476, 10480234, 10480390, 15200109, 15226003, 15750871, 15754097, 15754097A, 15754097M, 15754097W, 15768830, 18000002, 19244745, 19244746, 22781130, GM 10464476, 15200109, 15226003, 15263859, 19151921, 19244751, 22781130, 22781131, Isuzu 8104644760, 8152260030, Original Reference Number 10480234W, 15750871A, Saab 15-22-6003
LESTER NUMBERS
- 8237, 8274, 8292, 8734
