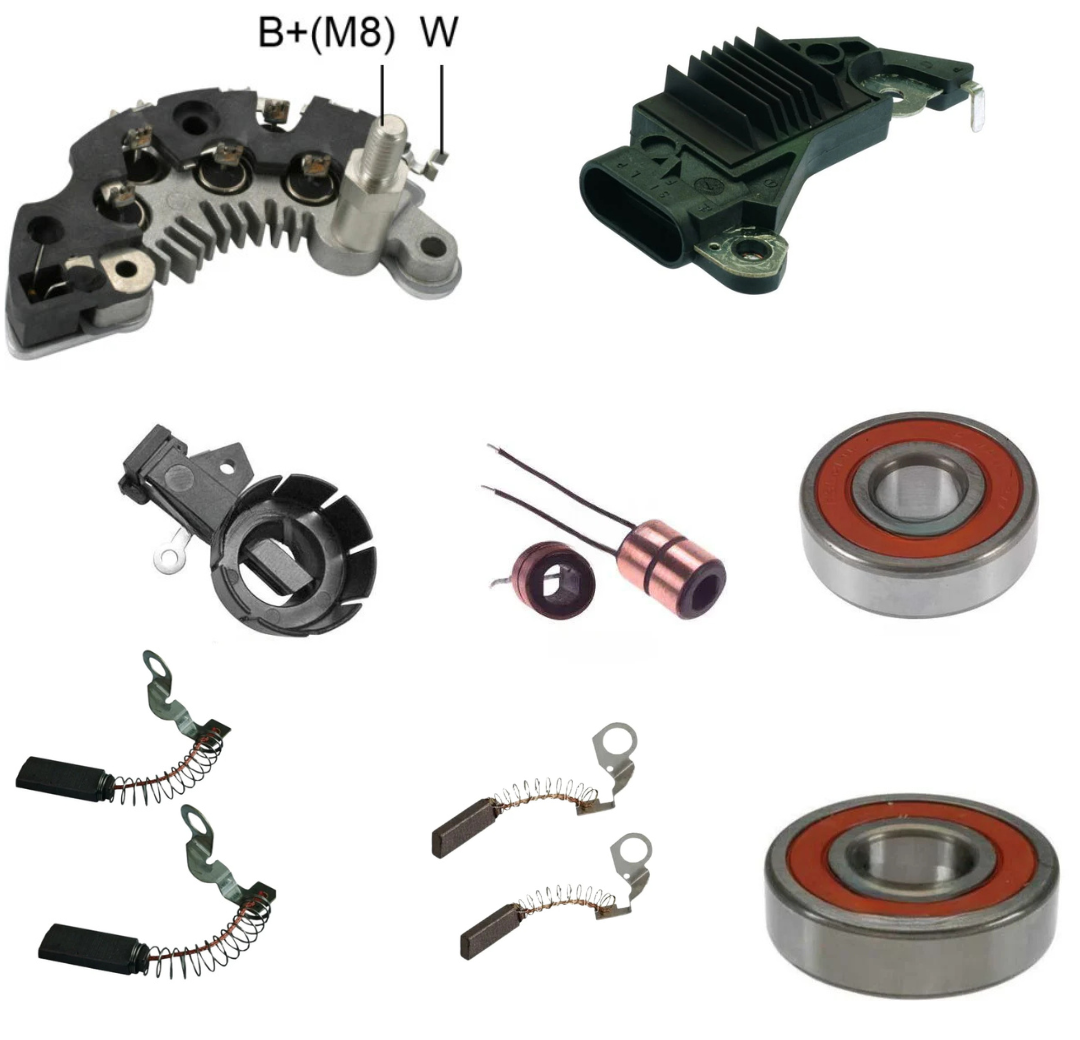

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Grease, Heat Transfer
Nut
Pulley Nut
Rotor
Repair Harness
Screw
Spacer
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130D
- AMPERAGE:102
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- PLUG CLOCK:07:00 Plug Clock
- PLUG CODE:314
- PULLEY CLASS:S5
- ROTATION:CW
- SPECS FOR:Delco CS130D IR/IF
- SPECS:102 Amp/12 Volt, CW, 5-Groove Pulley, 07:00 Plug Clock
- VOLTAGE:12
USED ON
- Chevrolet (1997-1999) ** Oldsmobile (1999-2001) ** Pontiac (1999-2001)
Replaces
- Delco 10463839, 10464423, 10480184, 10480320, 19244786, GM 10463839, 10464423
LESTER NUMBERS
- 8228-7
