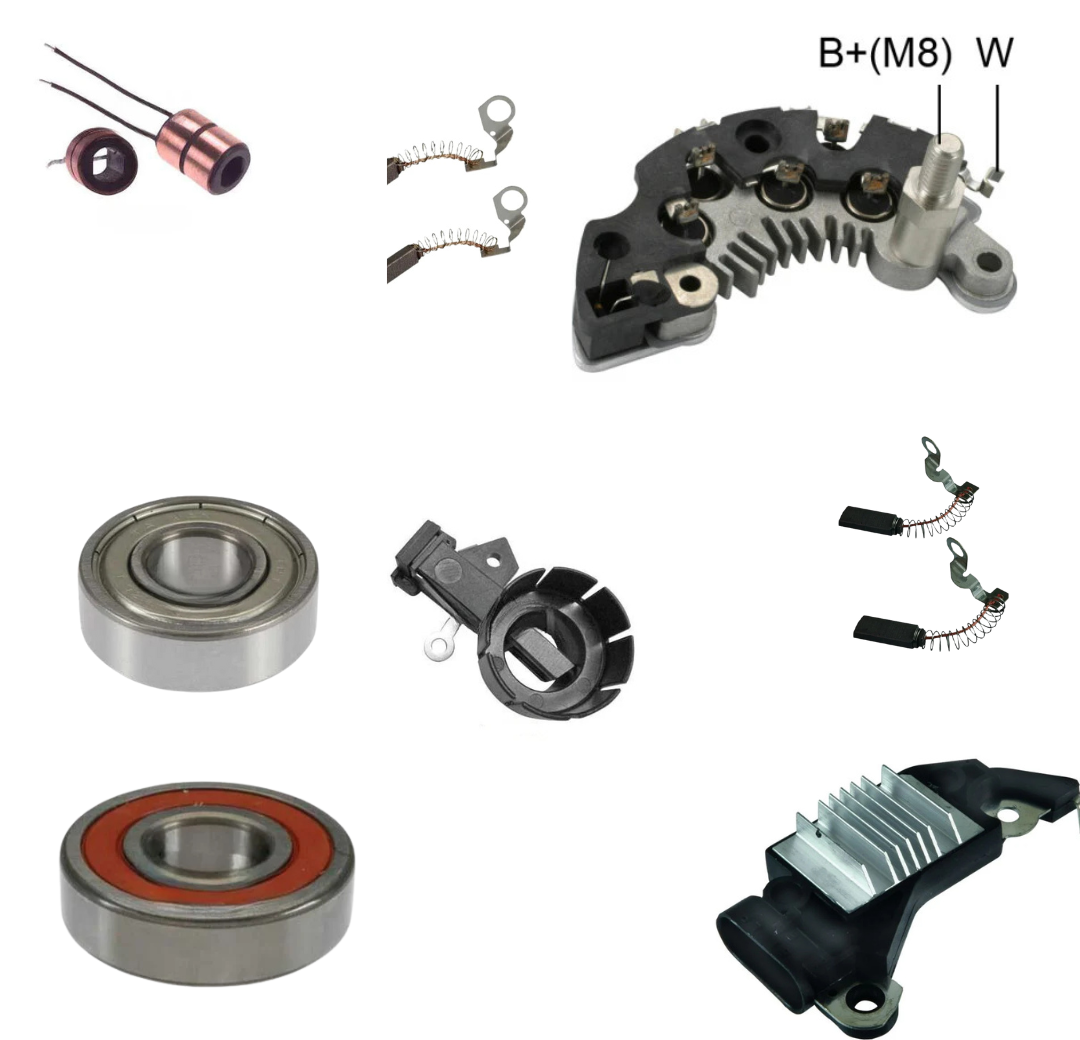

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Pulley Nut
Pulley
Rotor
Screw 1
Spacer
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130D
- AMPERAGE:105
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- PLUG CLOCK:05:00 Plug Clock
- PLUG CODE:313
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Delco CS130D IR/IF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 05:00 Plug Clock
- VOLTAGE:12
USED ON
- Cadillac (1999-2000) ** Chevrolet (1995-2002) ** GMC (1996-2002) ** Isuzu (1997-1997) ** Oldsmobile (1996-1997)
Replaces
- Bosch 0 986 UN0 627, Delco 10463651, 10463652, 10463690, 10464457, 10480167, 10480168, 10480198, 15757624, 19244779, GM 10463651, 10463652, 10463690, 10463940, 10464457, 19152043, Isuzu 8-10463-651-0, 8104636510
LESTER NUMBERS
- 8206-5
