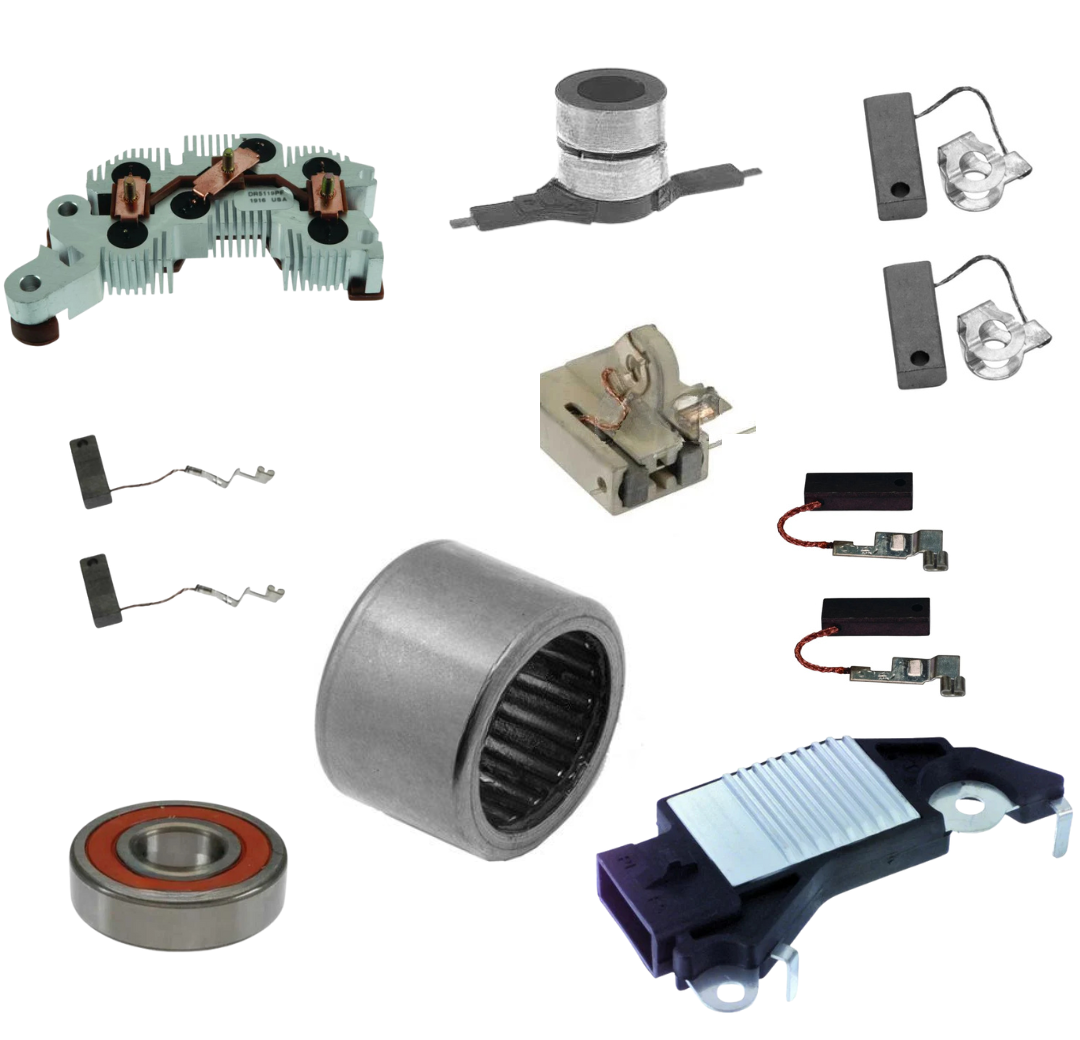

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Brushes 3
Brush Holder
Rectifier
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Bearing Retainer
Brush Spring
Capacitor
Connector
Frame SRE
Nut 1
Nut 2
Nut 3
Nut 4
Pulley Nut
Pulley
Repair Harness
Screw 2
Spacer
Stator
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS144 LATE
- AMPERAGE:140
- DESIGN:IR/EF
- FEATURE 1:100% New
- PLUG CLOCK:05:00 Plug Clock
- PLUG CODE:310
- PULLEY CLASS:S6
- PULLEY NOTE:56mm OD
- ROTATION:CW
- SPECS FOR:Delco CS144 LATE IR/EF
- SPECS:140 Amp/12 Volt, CW, 6-Groove Pulley, 05:00 Plug Clock
- VOLTAGE:12
USED ON
- AM General (1996-2001) ** Cadillac (1999-2000) ** Chevrolet (1995-2000) ** GMC (1996-2000) ** Hummer (2002-2006)
Replaces
- AM General 5744687, 6006776, 6012512, Delco 10463636, 10463686, 10463692, 10464081, 10480130, 10480133, 10480206, 10480255, GM 10463636, 10463686, 10463692, 10464081
LESTER NUMBERS
- 8203-5, 8219-5
