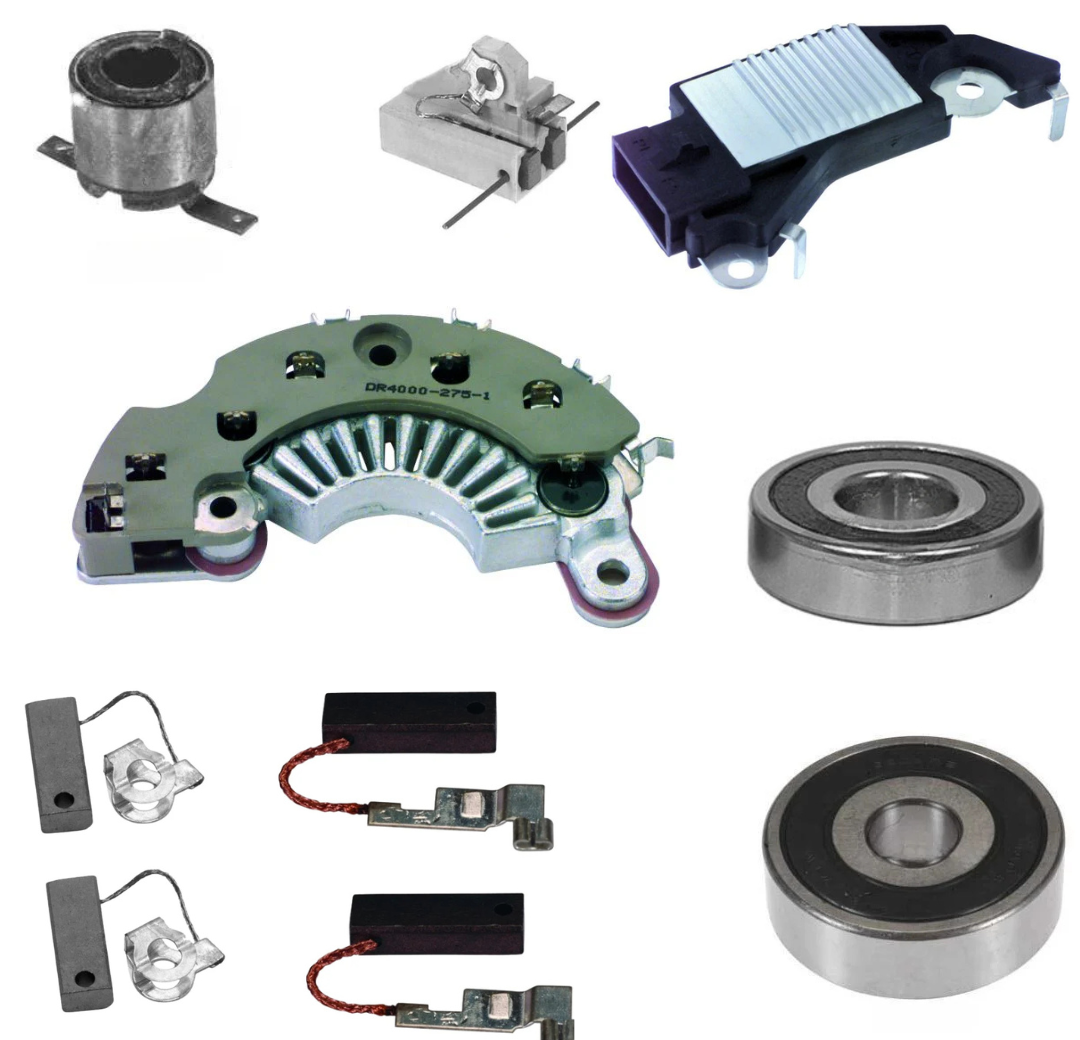

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brushes 3
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Baffle SRE
Battery Terminal
Battery Terminal Kit
Bearing Retainer
Brush Spring
Cover
Fan
Frame SRE
Grease, Heat Transfer
Insulator
Nut 1
Nut 2
Pulley Nut
Pin
Rotor
Repair Harness
Screw
Spacer
Spacer 2
Spacer 3
Stator
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:Premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:Premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S5
- PULLEY NOTE:62mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 5-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1988-1995) ** Chevrolet (1990-1994) ** Oldsmobile (1987-1995) ** Pontiac (1988-1995)
LESTER NUMBERS
- 7860-11, 7880-11, 8169-11
Replaces
- Delco 10463023, 10463171, 10463206, 10463401, 10463402, 10463530, 10479814, 10479909, 10479913, 10480114, 10480115, 10480134, 1101162, 1101163, 1101231, 1101277, 1101278, 1101596, 1102600, GM 10463022, 10463023, 10463113, 10463171, 10463206, 10463401, 10463402
