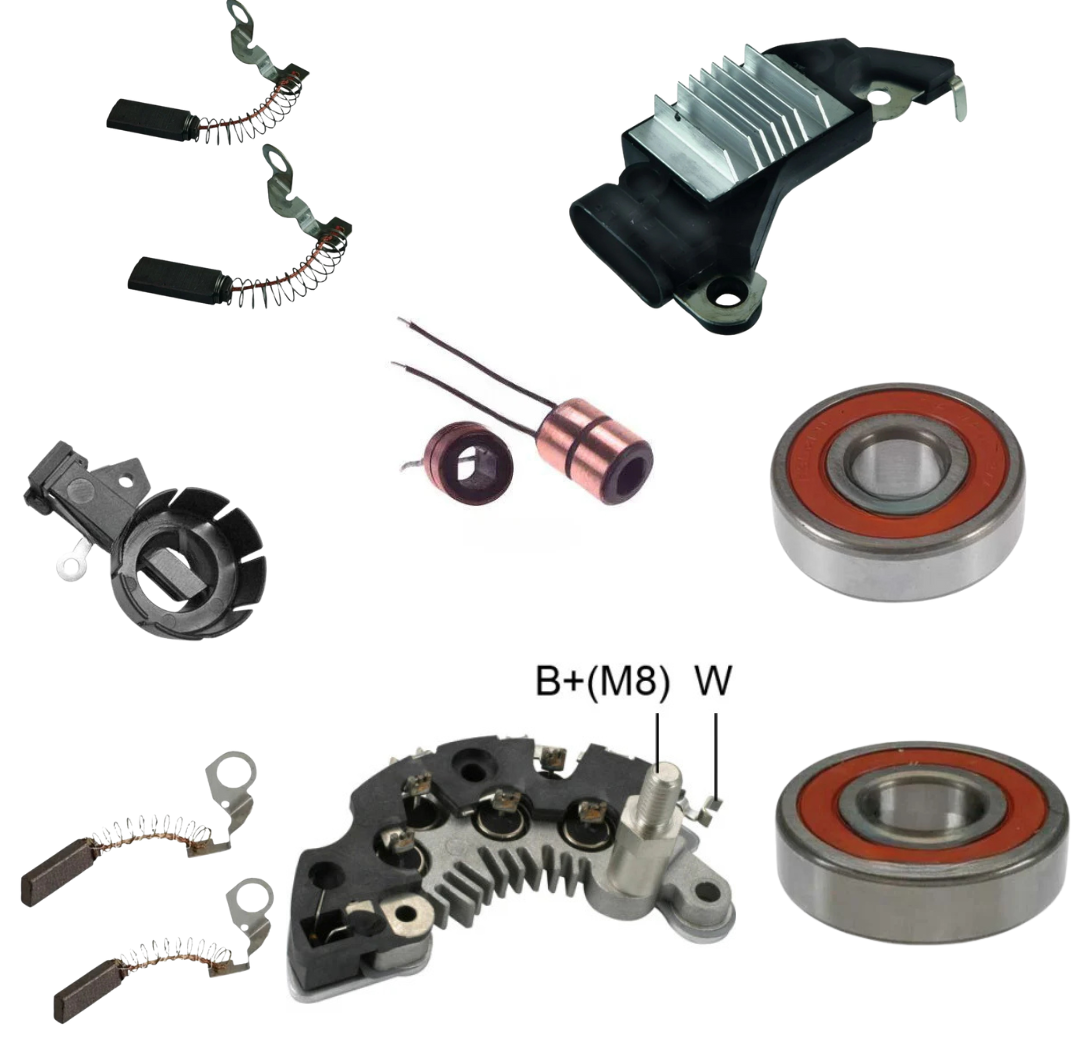

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Retainer
Cover
Grease, Heat Transfer
Pulley Nut
Rotor
Rectifier Cover
Repair Harness
Screw 1
Screw 2
Stator
Thru Bolt
Test Lead
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130D
- AMPERAGE:100
- DESIGN:IR/IF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curvey
- FEATURE 3:Premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:Premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- PLUG CLOCK:05:00 Plug Clock
- PLUG CODE:313
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Delco CS130D IR/IF
- SPECS:100 Amp/12 Volt, CW, 6-Groove Pulley, 05:00 Plug Clock
- VOLTAGE:12
USED ON
- Chevrolet (1994-1995) ** GMC (1994-1995) ** Oldsmobile (1994-1994)
Replaces
- Delco 10463406, 10463632, 10479881, 10479981, 10480188, GM 10463406, 10463632
LESTER NUMBERS
- 8160-5
