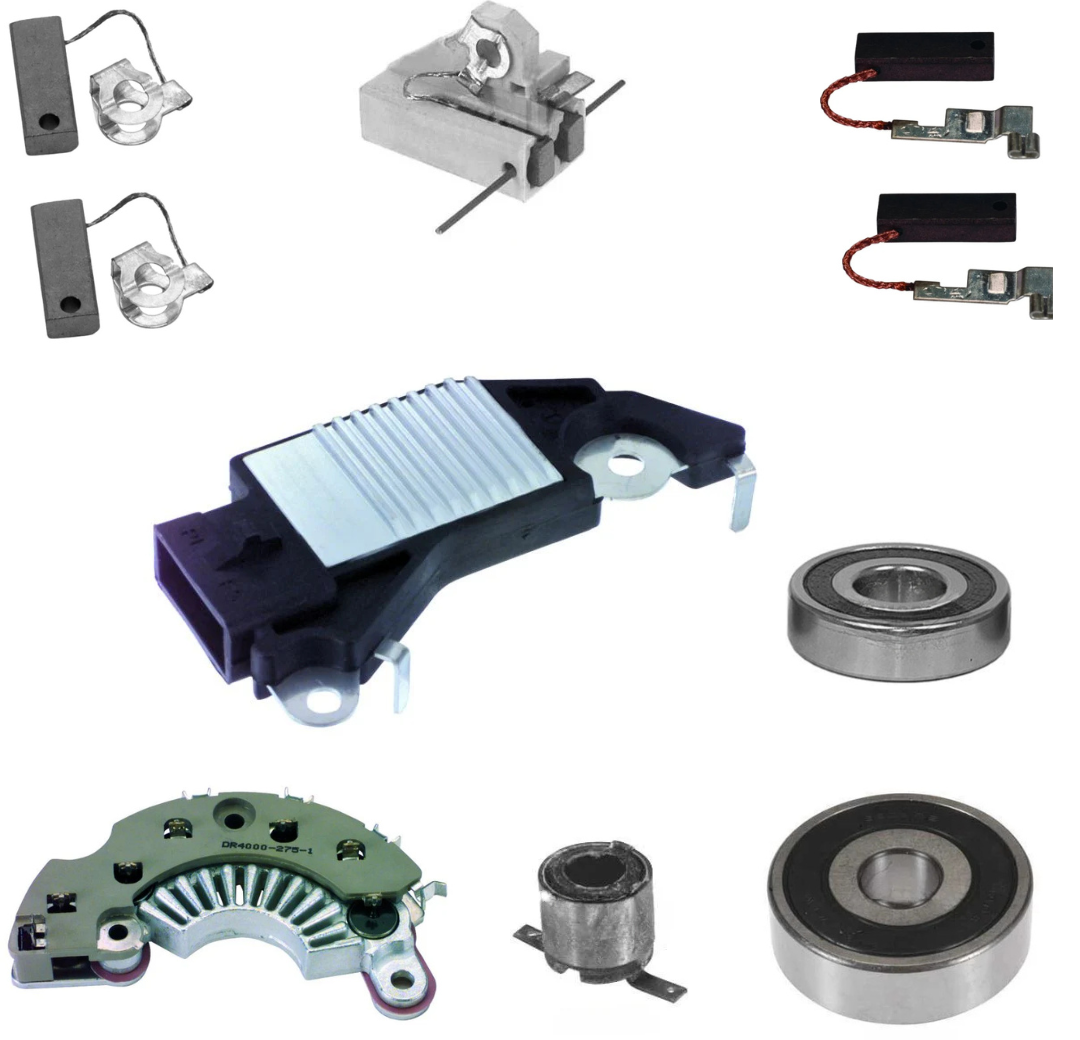

INCLUDED IN REBUILD KIT:
Bearing SRE
Brushes
Brushes Holder Assembly
Rectifier
Slip Ring
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:56mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1992-1993) ** Oldsmobile (1992-1993) ** Pontiac (1992-1993)
Replaces
- Delco 10463369, 10463391, 10480035, 1101642, GM 10463369, 10463391
LESTER NUMBERS
- 8137-11
