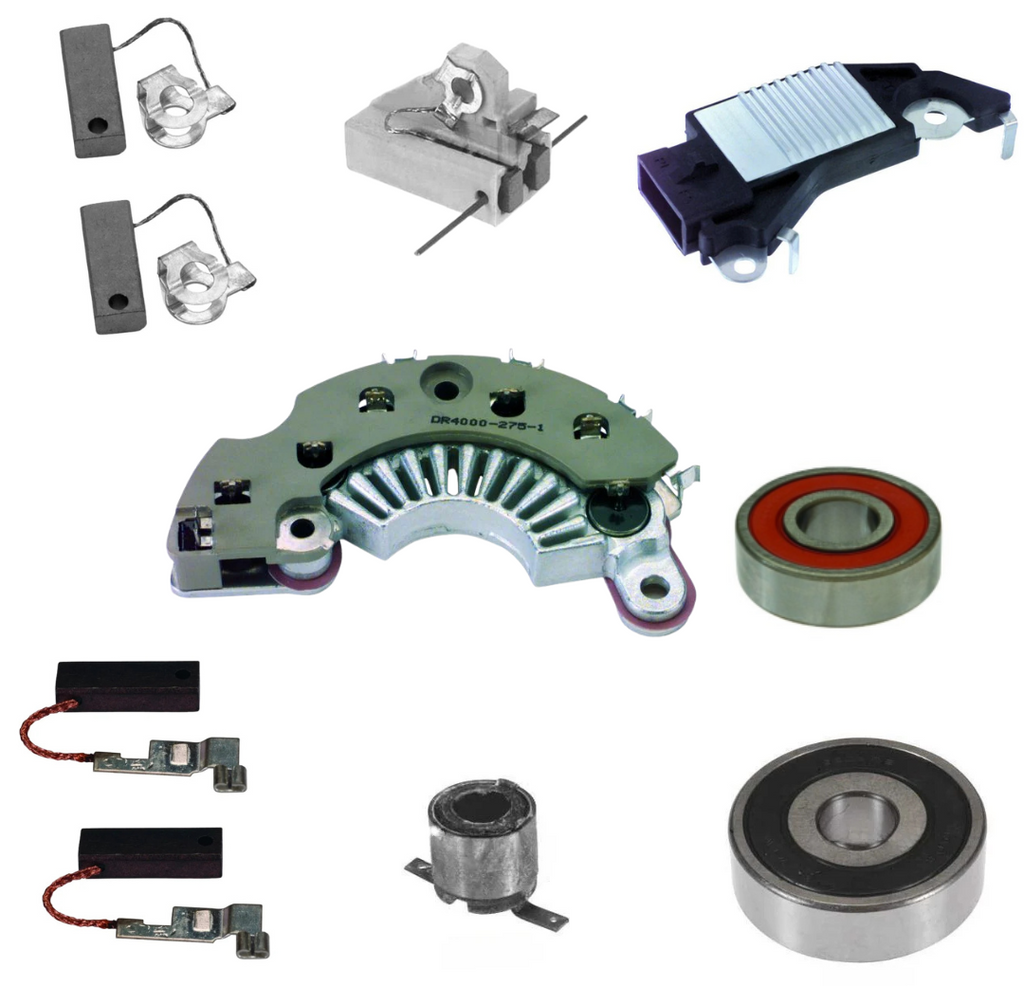

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Bearing Retainer 2
Brush Spring
Cover
Fan
Frame DE
Frame SRE
Insulator
Nut 1
Nut 2
Pulley Nut
Pin
Pulley
Rotor
Repair Harness
Spacer 1
Spacer 2
Spacer 3
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 2:Neg. Grd.
- PLUG CLOCK:07:00 Plug Clock
- PLUG CODE:310
- PULLEY CLASS:S6
- PULLEY NOTE:56mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 07:00 Plug Clock
- VOLTAGE:12
USED ON
- Chevrolet (1988-1994) ** GMC (1988-1993) ** Oldsmobile (1991-1993)
Replaces
- Delco 10463098, 10463110, 10463111, 10463164, 10463165, 10463245, 10463424, 10479801, 10479802, 10479807, 10479808, 10479921, 10479922, 1101293, 1101317, 1101318, 1101620, 1101628, 1101629, GM 10463098, 10463110, 10463111, 10463164, 10463165, 10463245, 10463424, 19152476, 88864238, 88877240
LESTER NUMBERS
- 7861-7, 7921-7, 7974-7, 7981-7
