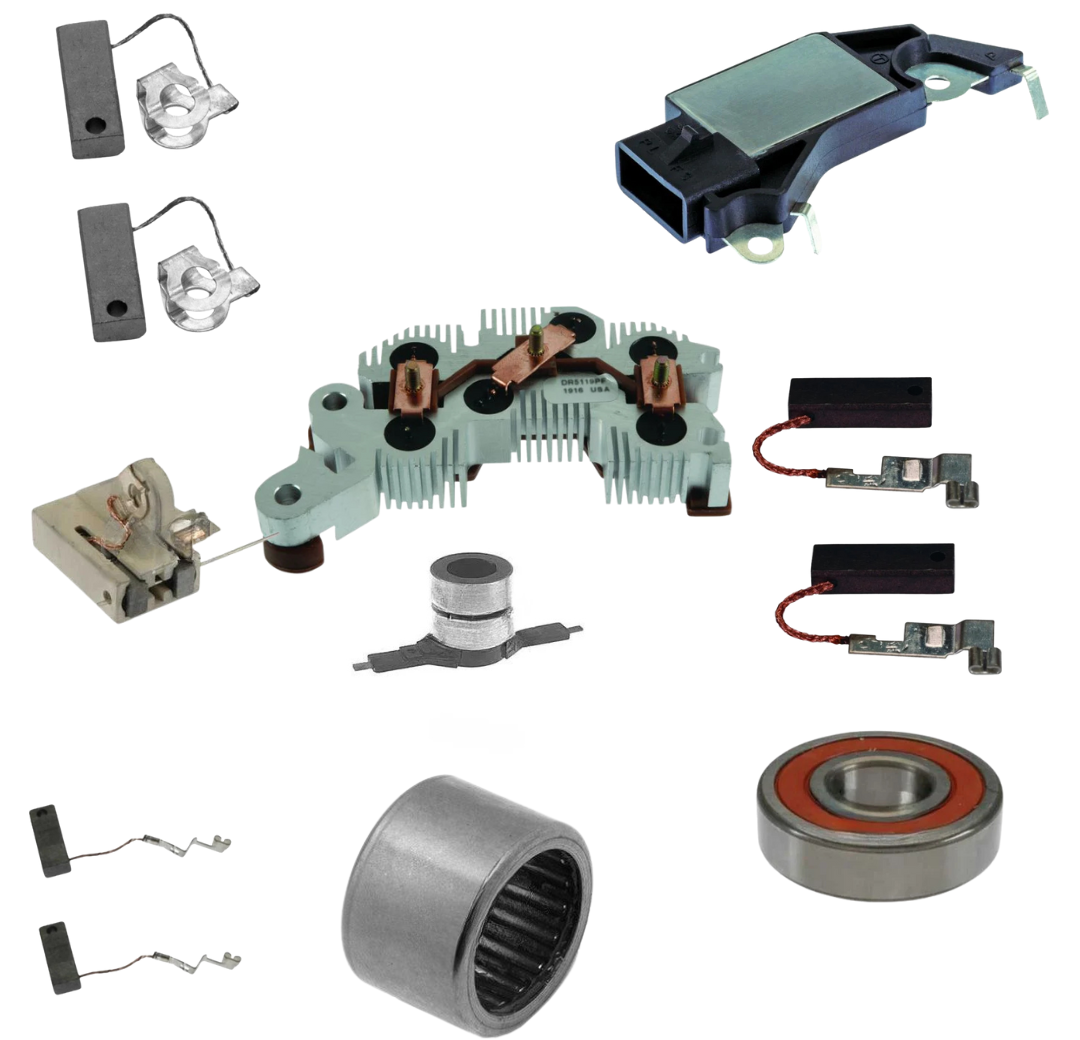

INCLUDED IN REBUILD KIT:
Bearing DE
Brushes 1
Brushes 2
Brushes 3
Brush Holder
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Brush Spring
Capacitor
Connector
Nut
Nut 2
Nut 4
Pulley Nut
Repair Harness
Screw 2
Screw 3
Stator
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS144 LATE
- AMPERAGE:140
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:S.R.E. frame w/ 3-pin (unthreaded) terminal block for heated windshield applications (HWS)
- NOTE 2:Neg. Grd.
- PLUG CLOCK:02:00 Plug Clock
- PLUG CODE:309
- PULLEY CLASS:S6
- PULLEY NOTE:57mm OD
- ROTATION:CW
- SPECS FOR:Delco CS144 LATE IR/EF
- SPECS:140 Amp/12 Volt, CW, 6-Groove Pulley, 02:00 Plug Clock
- VOLTAGE:12
USED ON
- Cadillac (1991-1995)
Replaces
- Delco 10463190, 10463295, 10463442, 10480009, 10480116, 1101579, GM 10463190, 10463295, 10463442
LESTER NUMBERS
- 7966-2
