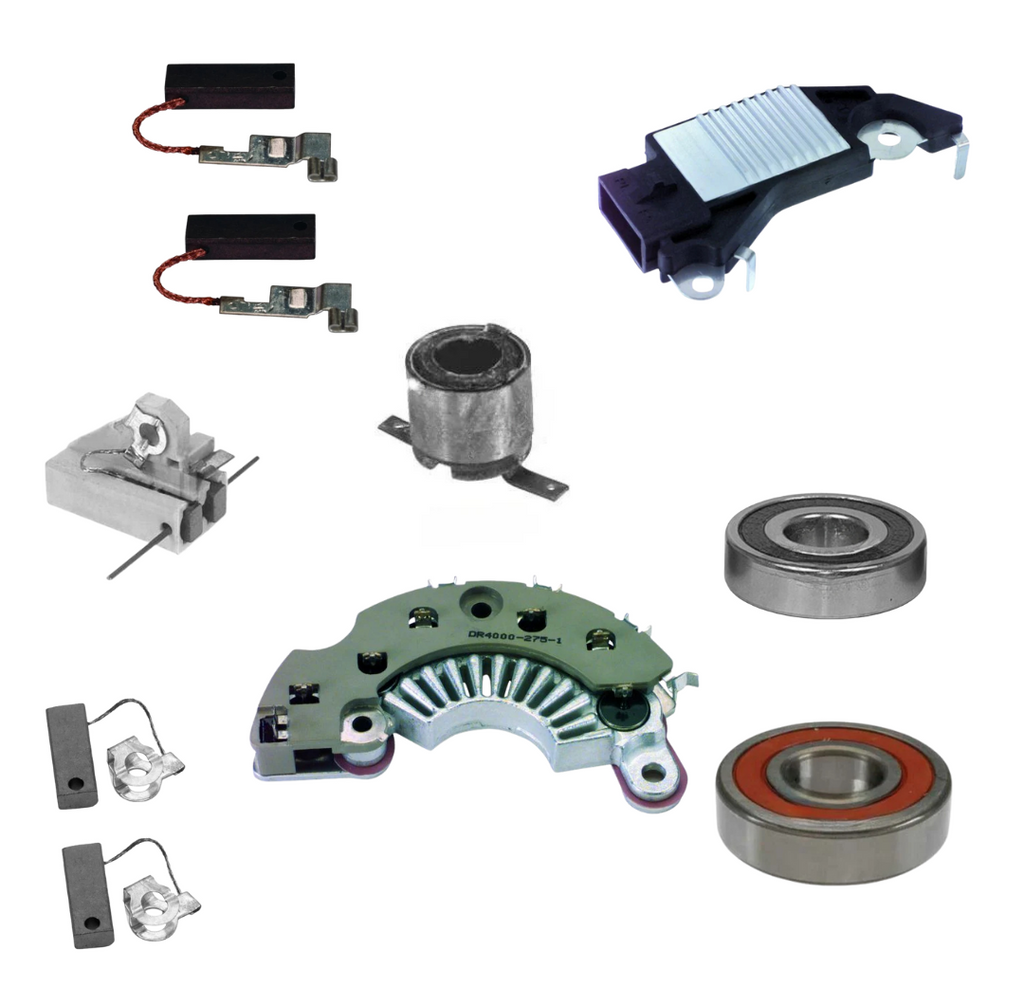

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Brush Spring
Cover
Fan
Frame SRE
Insulator
Nut
Pulley Nut
Pin
Pulley
Rotor
Repair Harness
Spacer 1
Spacer 2
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:56mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1990-1995) ** Oldsmobile (1991-1991) ** Pontiac (1991-1991)
Replaces
- Delco 10463150, 10463167, 10463182, 10463345, 10463525, 10479901, 10480027, 10480040, 10480127, 1101577, 1101649, 1101650, 1102604, GM 10463150, 10463167, 10463182, 10463345, 10463525
LESTER NUMBERS
- 7964-11, 8103-11
