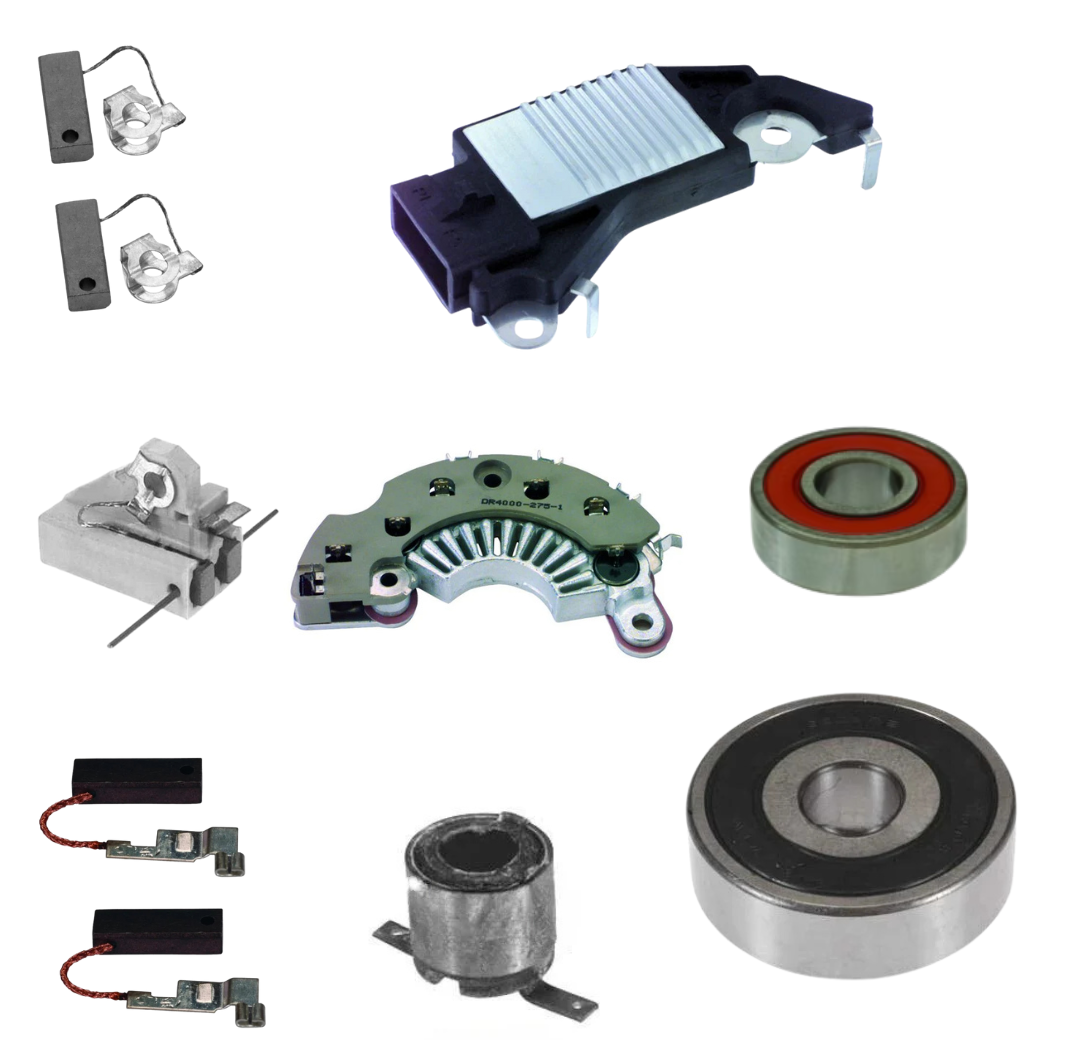

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Baffle SRE
Bearing Retainer
Bearing Retainer 2
Brush Spring
Cover
Fan
Frame DE
Frame SRE
Grease, Heat Transfer
Insulator
Nut
Pulley Nut
Pin
Pulley
Rotor
Repair Harness
Screw
Spacer
Spacer 2
Stator
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:Premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:Premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:56mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Chevrolet (1988-1990) ** Pontiac (1988-1989)
Replaces
- Delco 10463086, 10463092, 10463099, 1101253, 1101254, 1101255, GM 10463086, 10463092, 10463099
LESTER NUMBERS
- 7917-11, 7925-11
