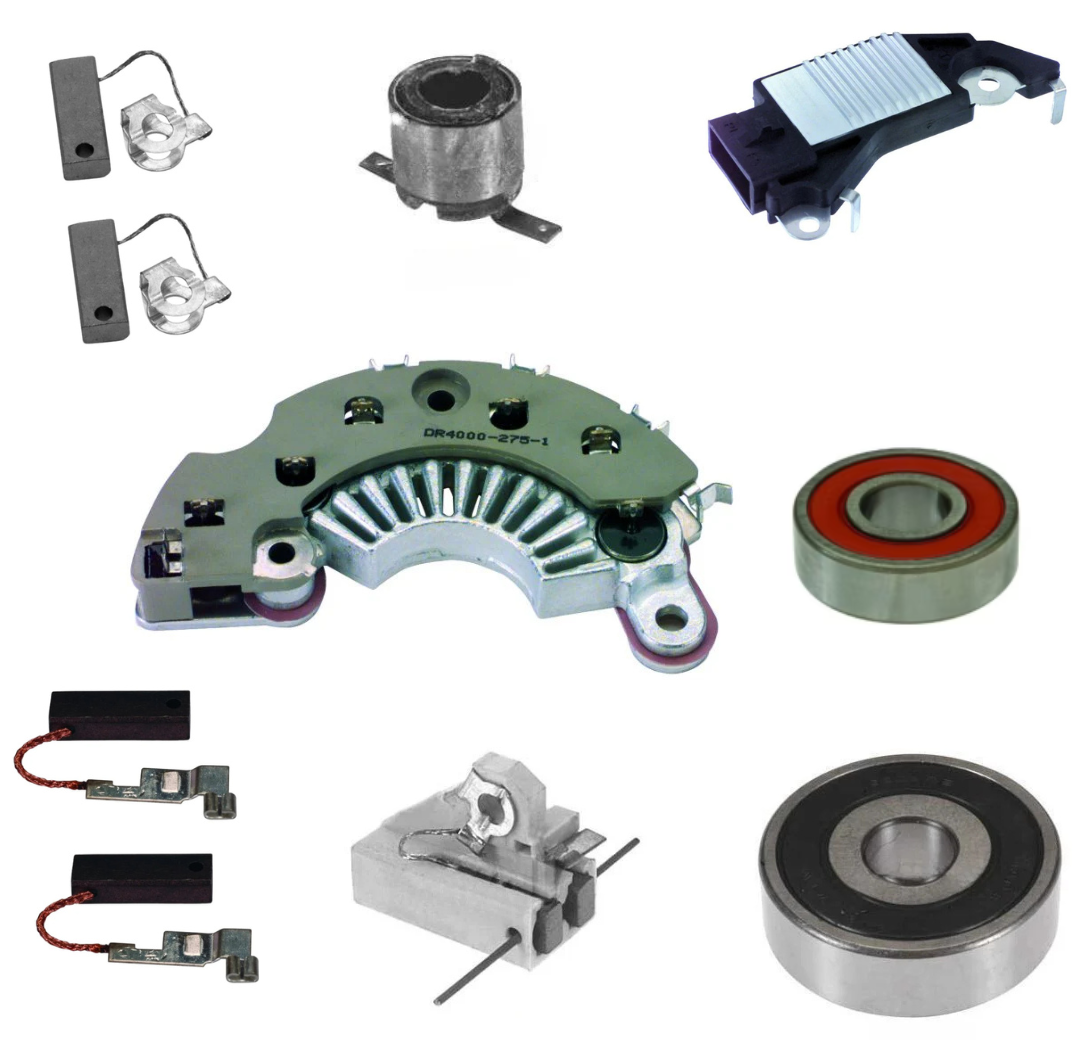

INCLUDED IN REBUILD KIT:
Bearing DEF
Bearing SRE
Brushes
Brushes Holder Assembly
Slip Ring
Rectifier
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:56mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Jeep (1987-1990)
Replaces
- Chrysler 53002897, 53002898, 53004632, JR775125, JR775126, JR775127, Delco 10463035, 10463036, 10463037, 10463041, 10463050, 1101167, 1101168, 1101170, Jeep-Eagle JR775125, JR775126, JR775127
Lester
- 7873-11|7897-11|7902-11
