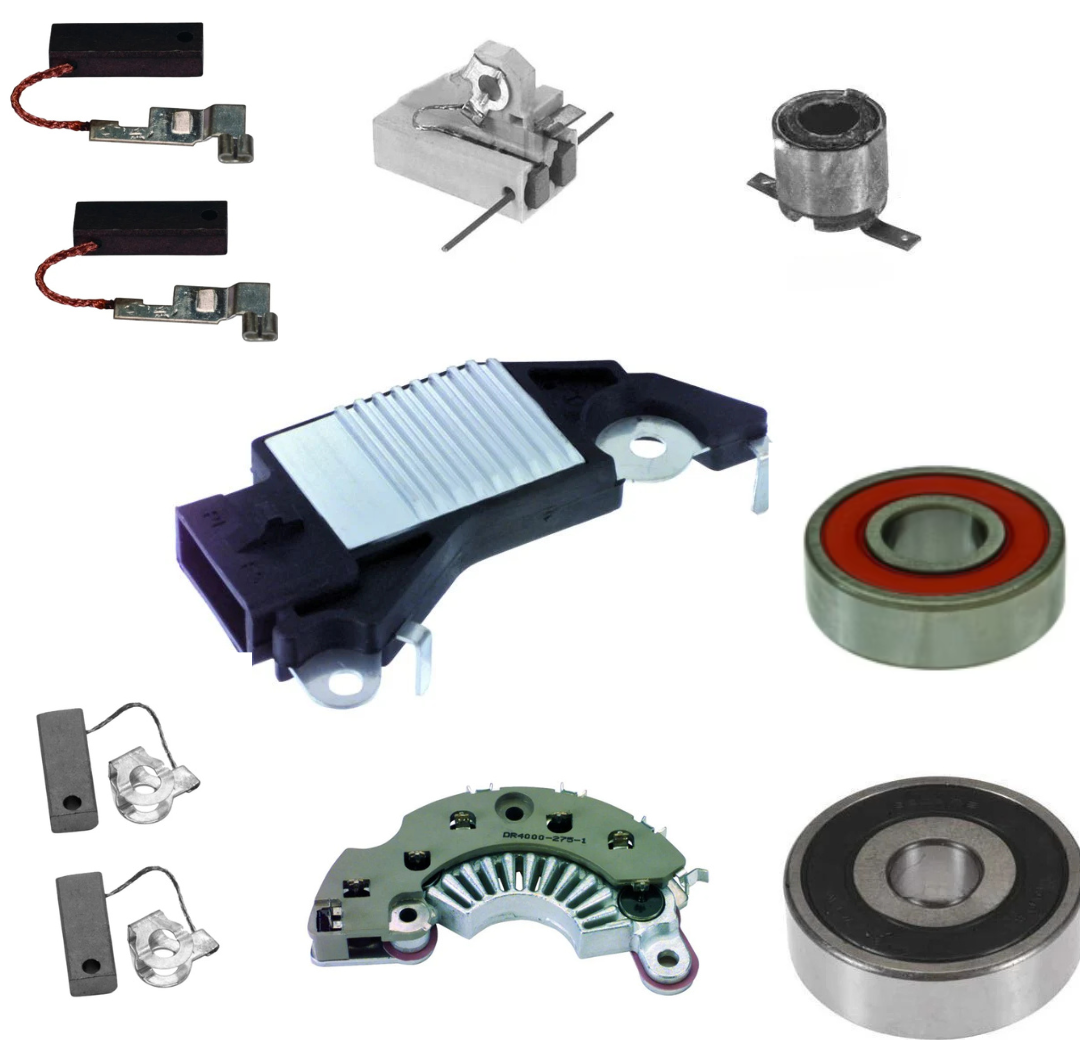

INCLUDED IN REBUILD KIT:
Bearing DEF
Bearing SRE
Brushes
Brushes Holder Assembly
Slip Ring
Rectifier
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S5
- PULLEY NOTE:62mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 5-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1987-1989) ** Chevrolet (1987-2001) ** Oldsmobile (1987-1989) ** Pontiac (1987-1991)
Replaces
- Delco 10456312, 10463043, 10463114, 10463154, 10463175, 10463247, 10463264, 10463358, 10479815, 10479963, 1101165, 1101191, 1101311, 1101461, 1101605, 1102614, 1105697, 1105701, GM 10456312, 10463043, 10463114, 10463154, 10463175, 10463247, 10463264
LESTER NUMBERS
- 7819-11, 7886-11, 7933-11
