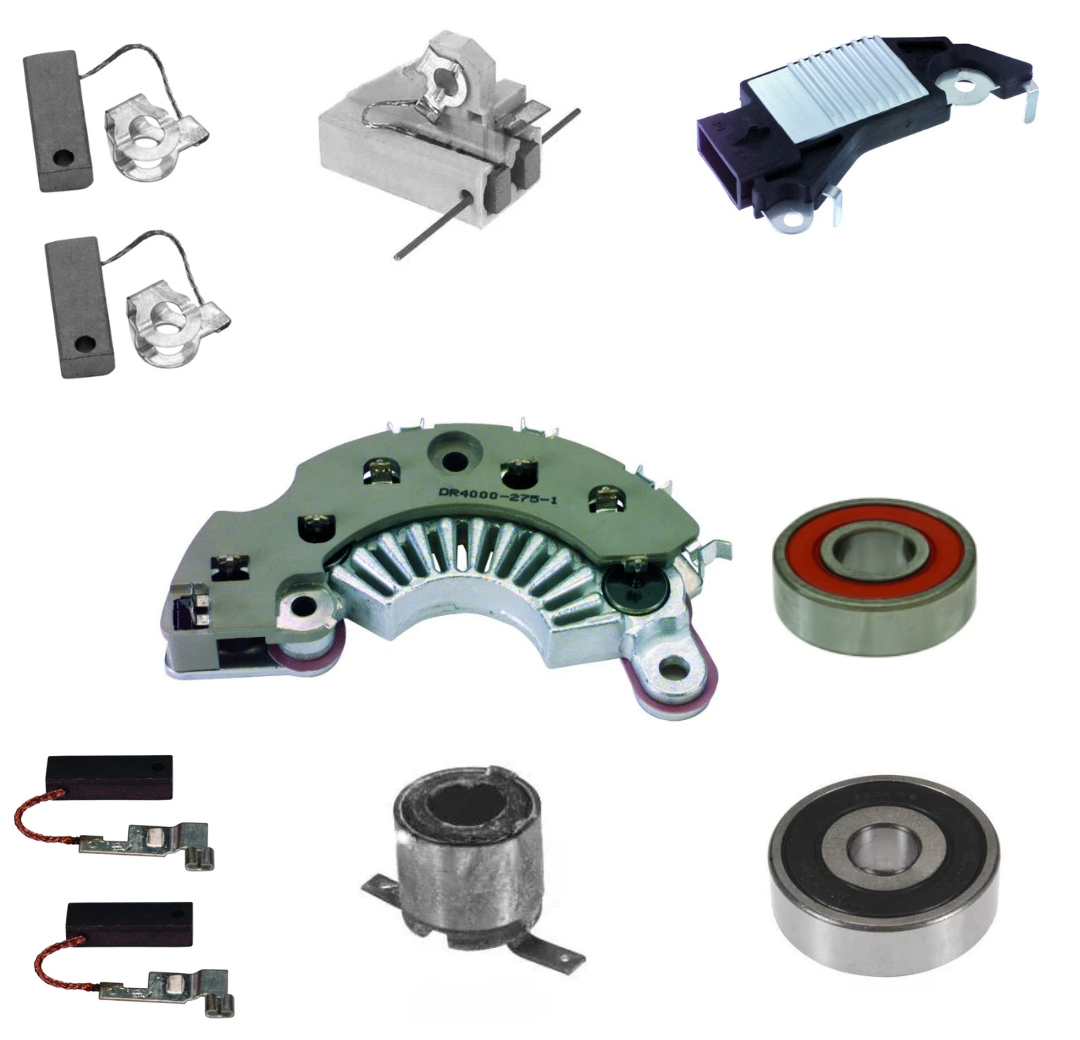

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Baffle SRE
Battery Terminal
Battery Terminal Kit
Bearing Retainer
Brush Spring
Fan
Insulator
Nut 1
Pulley Nut
Pin
Pulley
Repair Harness
Spacer 1
Spacer 2
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:CS130 Replacement unit for Delco CS121 Series Alternator
- PLUG CLOCK:03:00 Plug Clock
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Delco CS130 Replacement IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 03:00 Plug Clock
- VOLTAGE:12
USED ON
- Jeep (1987-1990)
Replaces
- Chrysler 53004264, 53004265, 8982775128, 8982775129, JR775128, JR775129, Delco 10456300, 10456301, 10463052, 1101171, 1101172, Jeep-Eagle 8982775128, 8982775129, JR775128, JR775129
Lester
- 7817-3|7818-3
