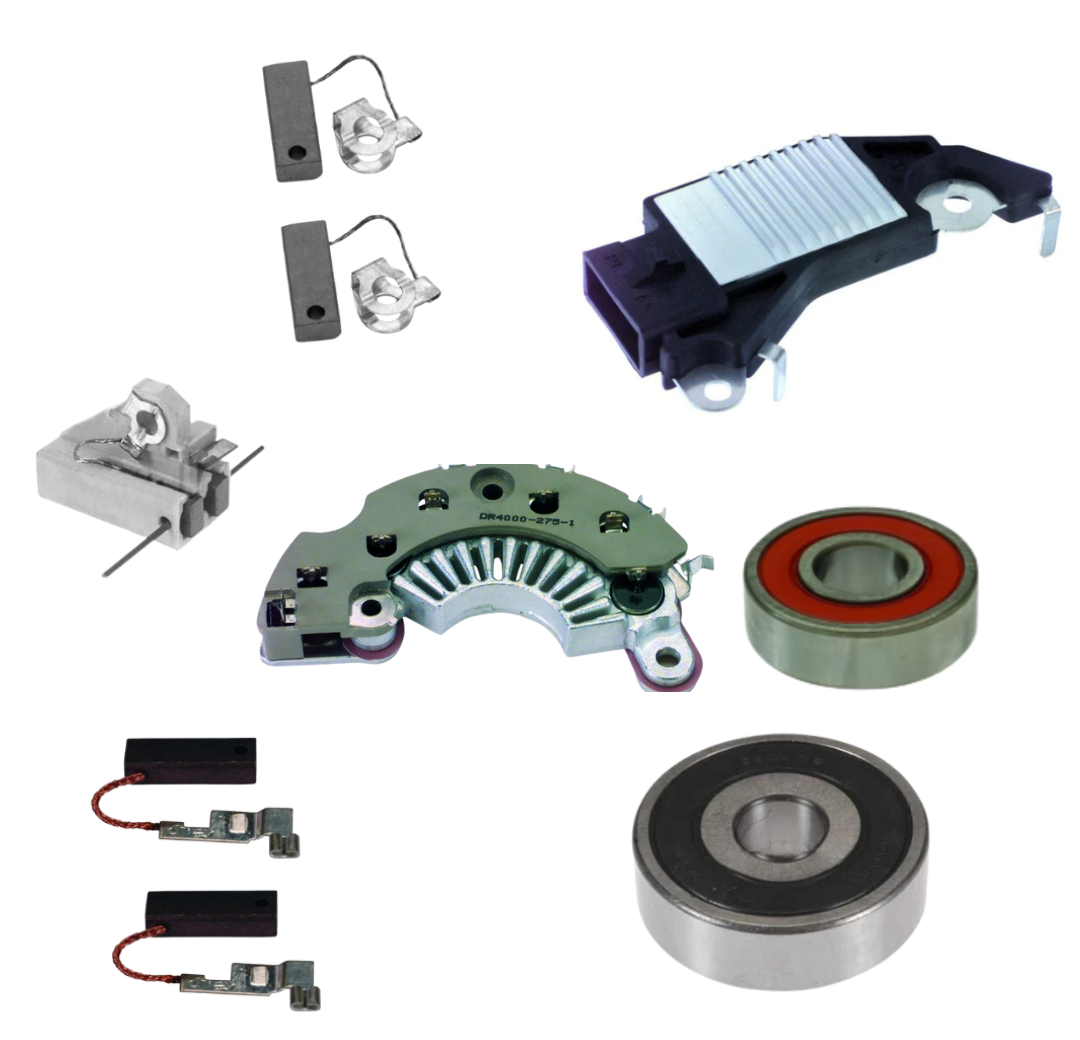

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Rectifier
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Baffle SRE
Battery Terminal
Battery Terminal Kit
Bearing Retainer 1
Bearing Retainer 2
Brush Spring
Cover
Fan
Frame SRE
Grease, Heat Transfer
Insulator
Nut 1
Nut 2
Pulley Nut
Pin
Pulley
Rotor
Repair Harness
Screw
Spacer 1
Spacer 2
Stator
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2: OE performance output curve
- FEATURE 3:Premium rectifier featuring press-fit avalanche diodes
- FEATURE 4: Premium regulator with 20A MOSFET field transistor
- FEATURE 5: Premium, hi-temperature WBD bearings
- NOTE 1:310 Plug Code
- NOTE 2: Neg. Grd.
- PLUG CLOCK:03:00 Plug Clock
- PULLEY CLASS:V1
- PULLEY NOTE: 66mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 1-Groove Pulley, 03:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1988-1990) ** Cadillac (1988-1990) ** Chevrolet (1988-1990) ** Oldsmobile (1988-1990) ** Pontiac (1988-1989)
Replaces
- Delco 10463064, 10463090, 10463106, 1101186, 1101229, 1101275, 1101292, GM 10463064, 10463090, 10463106
LESTER NUMBERS
- 7808-3, 7888-3
