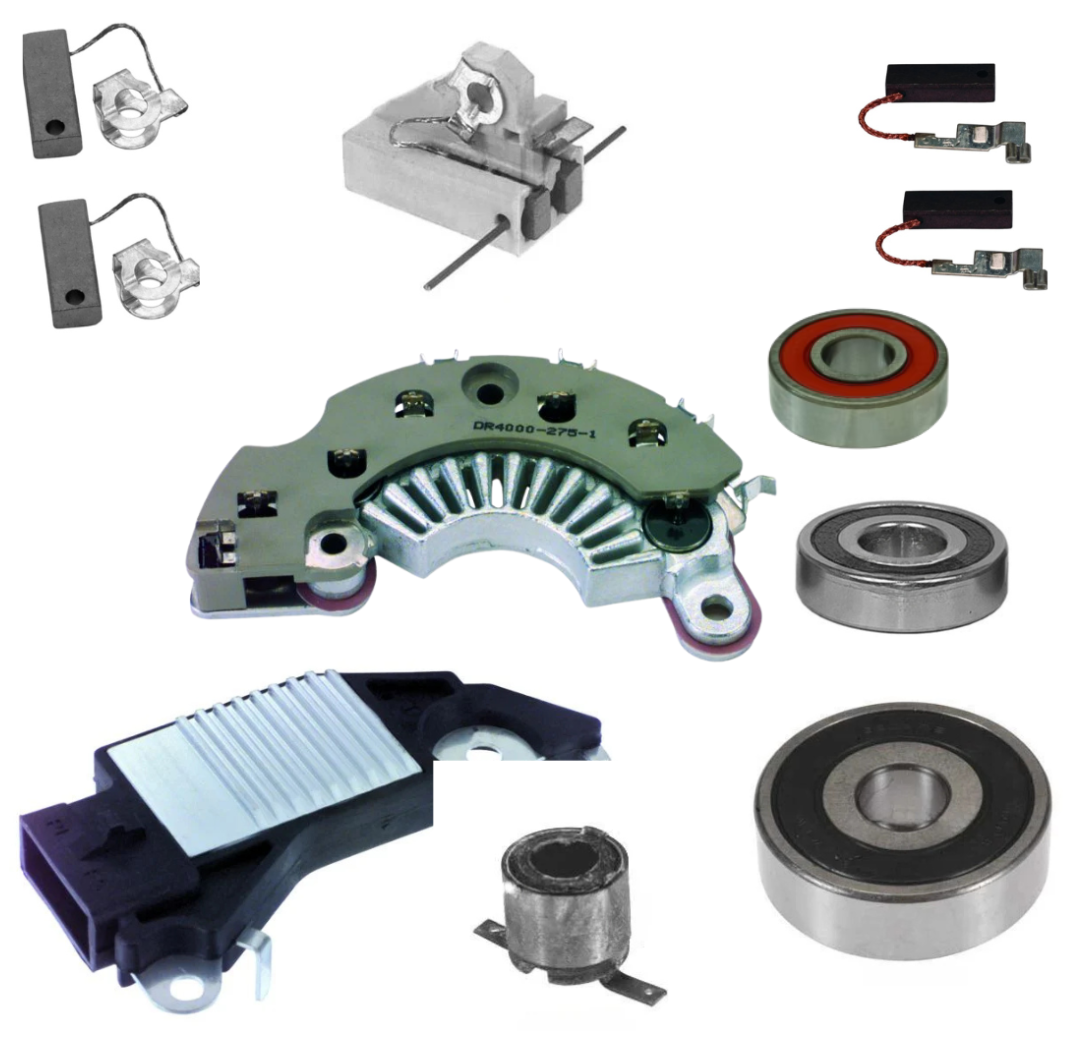

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 1
Brushes 2
Brush Holder
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Bearing Retainer 2
Brush Spring
Cover
Fan
Frame DE
Frame SRE
Grease, Heat Transfer
Insulator
Nut 1
Nut 2
Pulley Nut
Pin
Pulley
Rotor
Repair Harness
Spacer 1
Spacer 2
Spacer 3
Thru Bolt
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- NOTE 3:Will also replace Delco 1101483, CS121 Series Alternator (Lester 7937)
- PLUG CLOCK:07:00 Plug Clock
- PULLEY CLASS:S6
- PULLEY NOTE:56mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 07:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1989-1992) ** Caterpillar Ag. & Ind. (1983-2007) ** Daewoo (1986-2007) ** Hyster (1985-1992) ** Oldsmobile (1989-1991)
Replaces
- Caterpillar 8C5510, Delco 10463109, 10463117, 10463118, 10463177, 10463208, 10479898, 10479937, 10479938, 1101291, 1101475, 1101483, 1101608, GM 10463117, 10463118, 10463177, Hyster 224410, 3061515, 3062436
LESTER NUMBERS
- 7801-7, 7937-7
