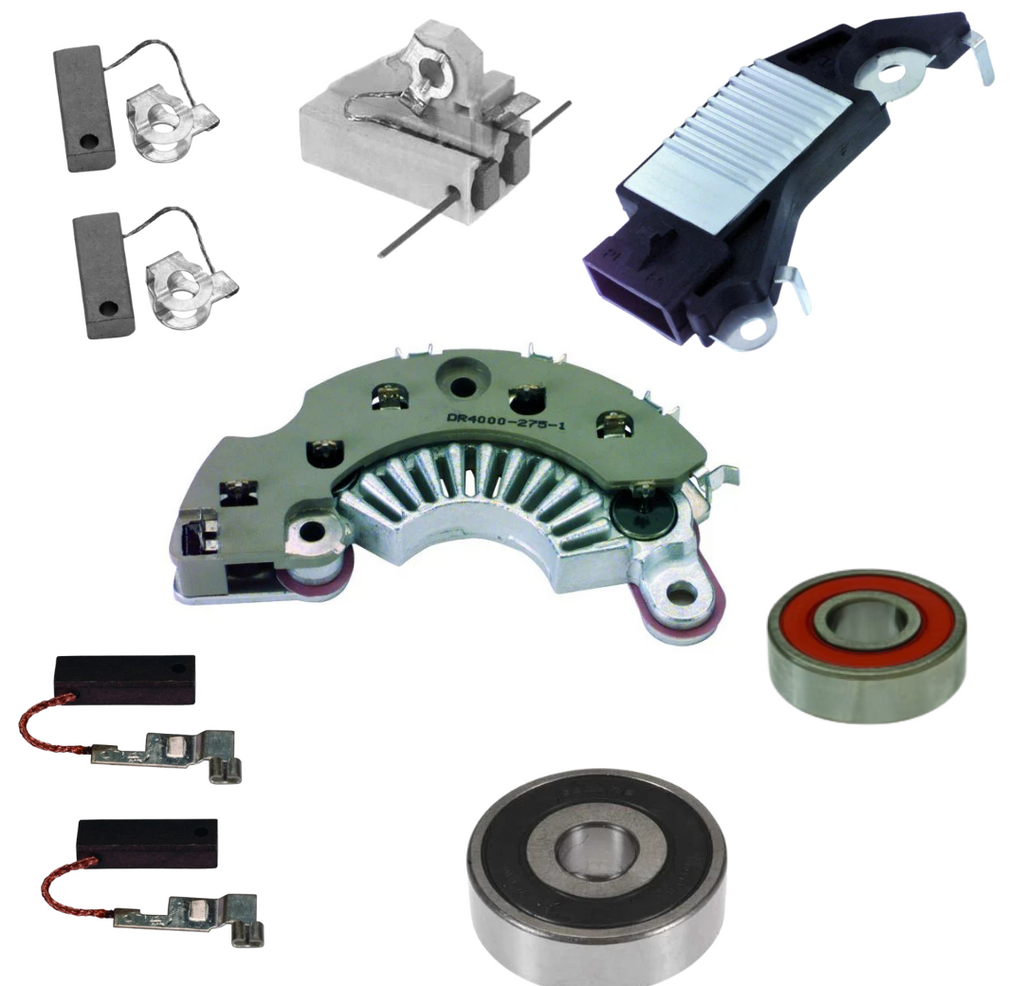

INCLUDED IN REBUILD KIT:
Bearing SRE
Brushes
Brushes Holder Assembly
Rectifier
Slip Ring
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:03:00 Plug Clock
- PULLEY CLASS:S4
- PULLEY NOTE:52mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 4-Groove Pulley, 03:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1986-1991) ** Oldsmobile (1986-1991) ** Pontiac (1986-1991)
Replaces
- Delco 10463003, 10463004, 10463102, 10463374, 10497118, 10497119, 1101123, 1101124, 1101320, 1105669, 1105670, GM 10463003, 10463004, 10463102, 10497119
LESTER NUMBERS
- 7801-3, 7872-3, 7937-3
