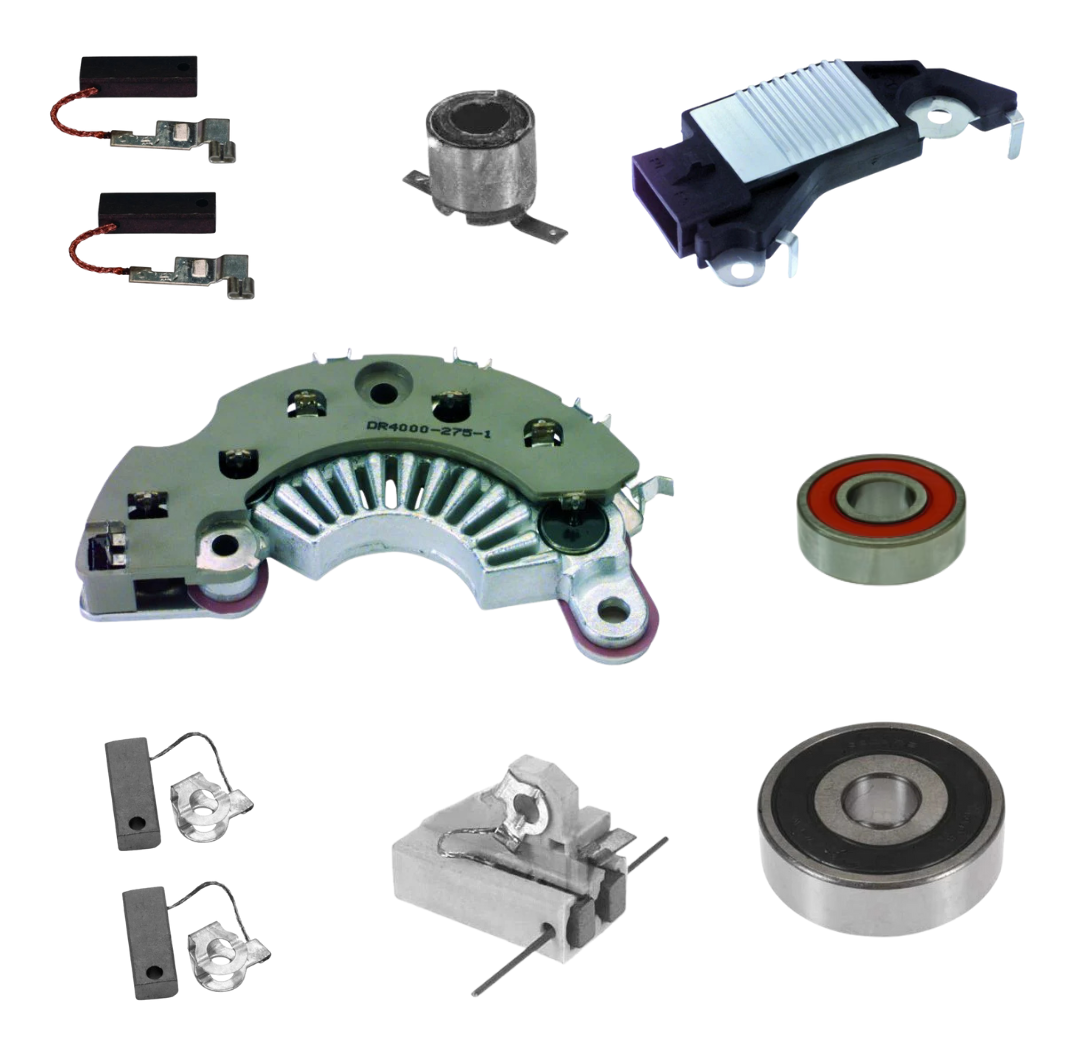

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brushes 2
Brush Holder
Slip Ring
NOT INCLUDED IN REBUILD KIT:
Battery Terminal
Battery Terminal Kit
Brush Spring
Cover
Frame DE
Frame SRE
Fan
Grease, Heat Transfer
Insulator
Nut 1
Nut 2
Nut 3
Pulley
Pulley Nut
Pin
Repair Harness
Rotor
Spacer 1
Spacer 2
Spacer 3
Washer Lock
Specifications
- MFR:DELCO
- Mfr Series:CS130
- AMPERAGE:105
- DESIGN:IR/EF
- FEATURE 1:100% New
- FEATURE 2:OE performance output curve
- FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
- FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
- FEATURE 5:Premium, hi-temperature WBD bearings
- FEATURE 6:Hi-temperature class-H windings
- FEATURE 7:Precision CNC machined castings
- NOTE 1:310 Plug Code
- NOTE 2:Neg. Grd.
- PLUG CLOCK:11:00 Plug Clock
- PULLEY CLASS:S5
- PULLEY NOTE:62mm OD
- ROTATION:CW
- SPECS FOR:Delco CS130 Series IR/EF
- SPECS:105 Amp/12 Volt, CW, 5-Groove Pulley, 11:00 Plug Clock
- VOLTAGE:12
USED ON
- Buick (1987-1988) ** Oldsmobile (1987-1988) ** Pontiac (1987-1994)
Replaces
- Delco 10463018, 10463019, 10463029, 10463103, 10463133, 10463155, 10463248, 10463661, 10479816, 1101144, 1101145, 1101190, 1101321, 1101565, 1102615, GM 10463018, 10463019, 10463103, 10463155, 10463248
LESTER NUMBERS
- 7801-11, 7870-11, 7937-11
