Specifications
- MFR:DENSO
- FEATURE 1:100% New
- FEATURE 2:Shorted field & lamp protection
- NOTE 1:Standard lamp function - no output
- SPECS FOR:Denso IR/IF Alternators

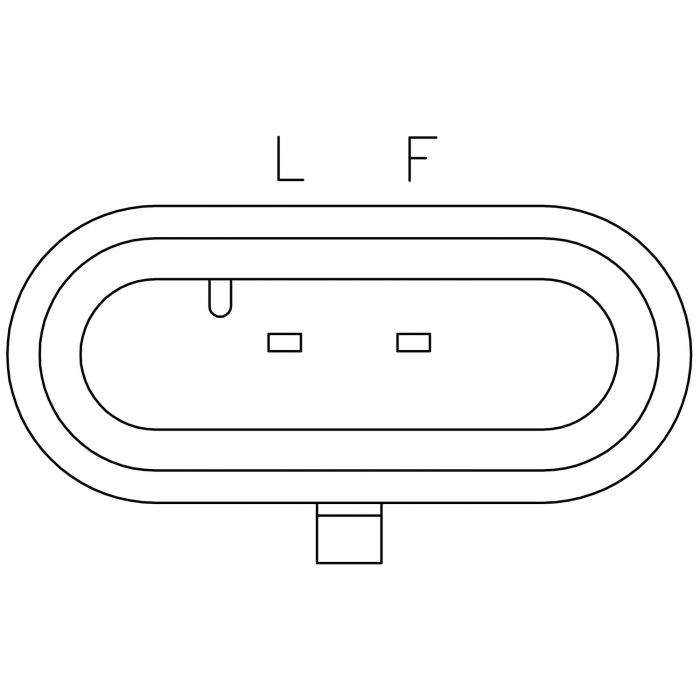

- SPECS:12 Volt, B-Circuit, F-L Terminals, 14.8 Vset, 2 sec. LRC
USED ON
- Cadillac (2003-2004) ** Chevrolet (2006-2006) ** Pontiac (2006-2006)
Replaces
- Denso 126600-0090, Original Reference Number GL20090
LESTER NUMBERS
- 11003, 11036, 11037, 11109, 11146
UNIT NUMBERS
- Denso 104210-3280, 104210-3310, 104210-3340, 104210-4140, 104210-4380, 104210-4410, 104210-4990; GM 10394201, 15812949, 22727494, 22731358, 25738783, 25750935, 25758345, 25766345
