Specifications

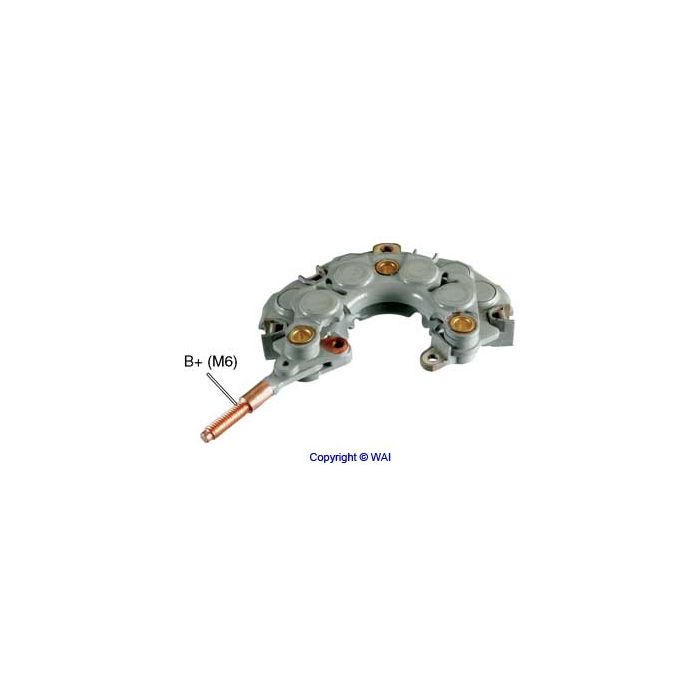

- MFR:DENSO
- DIM 1:103mm OD
- DIM 2:M6 x 1.0 x 43mm Battery Terminal
- FEATURE 1:100% New
- FEATURE 2:8-40A press-fit diodes
- FEATURE 3:Welded diode terminations
- FEATURE 4:Copper Heat Sink
- NOTE 1:With mtg. hole for 46-82300 ground strap.
- NOTE 2:Similar to INR722P except INR722P w/M8 B+ terminal.
- SPECS FOR:Denso 70-110A IR/IF Alternators w/118mm OD Stator
- SPECS:12 Volt
USED ON
- Acura (1992-2001) ** Alpine Equipment (2004-2016) ** Caterpillar Ag. & Ind. (1987-2015) ** Chevrolet (1998-2002) ** Cidema (2005-2016) ** Dodge (2000-2000) ** Geo (1993-1997) ** Honda (1990-2002) ** Honda - China (1998-1998) ** Honda - Europe (1992-2002) ** Hydrema (2005-2016) ** Isuzu (1996-2002) ** Jeep (2000-2000) ** Kubota (2013-2017) ** Lexus (1990-2001) ** Scion (2004-2006) ** Suzuki (1999-2011) ** Suzuki - Europe (1995-2010) ** Toyota (1989-2006) ** Toyota - Europe (1990-2012) ** Toyota LCV - Europe (1995-2001) ** Venieri (2005-2016) ** Yanmar (1997-2008)
Replaces
- Denso 021580-4510, 021580-4630, 021580-4760, GM 94854180, Honda 31127-PT0-003, 31127-PT2-013, 31127-PT2-0130, Toyota 27357-16310, 27357-55080, 27357-74160
LESTER NUMBERS
- 11085, 11100, 11101, 11152, 11633, 12192, 12355, 12777, 13240, 13276, 13278, 13319, 13323, 13325, 13331, 13393, 13394, 13395, 13396, 13407, 13413, 13457, 13487, 13489, 13495, 13497, 13506, 13507, 13529, 13537, 13538, 13539, 13540, 13551, 13557, 13558, 13674, 13677, 13684, 13722, 13732, 13737, 13743, 13747, 13754, 13755, 13756, 13767, 13776, 13794, 13795, 13796, 13809, 13857, 13869, 13875, 13880, 13885, 13982, 14679, 20915, 21472, 21779, 22144, 22602, 22612, 22613, 23037, 23054, 23270, 23276, 23277, 23313, 23710
UNIT NUMBERS
- Acura 06311-PAA-505RM, 06311-PAA-506RM, 31100-P0A-A01, 31100-P0A-A01RM, 31100-P0A-A03, 31100-P1R-A01, 31100-P1R-A01RM, 31100-P1R-A02, 31100-P1R-A02RM, 31100-P72-003, 31100-P72-003RM, 31100-P72-013, 31100-P72-013RM, 31100-P72-C01, 31100-P72-C02, 31100-P72-U51, 31100-P75-003, 31100-P75-003RM, 31100-P75-A01, 31100-P75-A01RM, 31100-P75-C01, 31100-P75-C02, 31100-PAA-A01, 31100-PAA-A01RM, 31100-PV1-A01, 31100-PV1-A01RM, 31100-PV1-A02, 8-97210-373-0, CJP56, CJS41, CJS42, CJS43, CJS44, CJS46, CJS49, CJS50, CJU14, CJU31, CJU33, CJU34, CJU44, CJU45, CJU86; Bosch 0 986 045 831; Caterpillar 0R-4328, 0R-9274, 105-2813, 105-2814, 144-9963; Chrysler 56028691, 56041565AA, 56041685AA; Daihatsu Motor Co 27060-87108, 27060-87109; Denso 100210-3780, 100211-8010, 100211-8020, 100211-8030, 100211-8050, 100211-8060, 100211-8070, 100211-8100, 100211-8110, 100211-8130, 100211-8150, 100211-8151, 100211-8190, 100211-8280, 100211-8300, 100211-8350, 100211-8380, 100211-8381, 100211-8440, 100211-8480, 100211-8490, 100211-8540, 100211-8550, 100211-8570, 100211-8660, 100211-8710, 100211-8740, 100211-8750, 100211-8770, 100211-8850, 100211-8860, 100211-8890, 100211-8990, 100211-8991, 100211-9720, 100211-9880, 100213-1730, 100213-1770, 100213-2350, 100213-2351, 100213-2352, 100213-2400, 100213-2580, 100213-2730, 100213-5370, 101211-5010, 101211-5020, 101211-5080, 101211-5110, 101211-5140, 101211-5150, 101211-5160, 101211-5230, 101211-5240, 101211-5270, 101211-5280, 101211-5360, 101211-5370, 101211-5400, 101211-5410, 101211-5420, 101211-5430, 101211-5480, 101211-5490, 101211-5500, 101211-5540, 101211-5620, 101211-5630, 101211-5690, 101211-5710, 101211-5720, 101211-5850, 101211-5970, 101211-9010, 101211-9020, 101211-9060, 101211-9100, 101211-9120, 101211-9140, 101211-9180, 101211-9230, 101211-9250, 101211-9280, 101211-9310, 101211-9330, 101211-9340, 101211-9440, 101211-9450, 101211-9510, 101211-9570, 101211-9580, 101211-9590, 101211-9600, 101211-9630, 101211-9760, 101211-9780, 101211-9810, 101211-9820, 101211-9821, 101211-9860, 101211-9880, 101211-9940, 101211-9960, 101211-9970, 101211-9990, 102211-1010, 102211-1020, 102211-1021, 102211-1040, 102211-1240, 102211-1260, 102211-1270, 102211-1370, 102211-1430, 102211-1440, 102211-1620, 102211-1680, 102211-1710, 102211-1740, 102211-1830, 102211-1860, 102211-1950, 102211-1951, 102211-1960, 102211-2310, 102211-2400, 102211-2430, 102211-2600, 102211-8000, 102211-8010, 102211-8190, 102211-8200, 102211-9010, 102211-9050, 102211-9070, 102211-9540, 104210-8010, 121000-3650, 121000-3710, 121000-3730, 9651219-910, 9661219-523, 9661219-951, 9662219-162, 9662219-195, 9760211-855, 9760211-875, 9761211-524, 9761211-541, 9761211-543, 9761211-549, 9761211-550, 9761211-562, 9761211-571, 9761219-585, 9761219-912, 9761219-931, 9761219-933, 9761219-981, 9761219-999, 9762219-127, MS102211-8000, MS102211-8190; GM 10463613, 94853222, 94854195, 94857218; Honda 06311-P2T-003, 06311-P2T-003RM, 06311-P3F-J51RM, 06311-P5M-003RM, 06311-PAA-505RM, 06311-PAA-506RM, 31100-P0A-A0030, 31100-P0A-A01, 31100-P0A-A01RM, 31100-P0A-A03, 31100-P0A-AA010, 31100-P0B-A01, 31100-P0B-A01RM, 31100-P0B-AA010, 31100-P12-A01, 31100-P12-A01RM, 31100-P12-A02, 31100-P12-A02RM, 31100-P13-013, 31100-P13-0133, 31100-P13-013RM, 31100-P13-013RM, 31100-P14-A02, 31100-P14-A02RM, 31100-P1E-A01, 31100-P1E-A01RM, 31100-P1E-AA010, 31100-P1R-A011M, 31100-P2C-003, 31100-P2C-0030, 31100-P2T-003, 31100-P2T-0030, 31100-P2T-003RM, 31100-P30-033, 31100-P30-033RM, 31100-P30-Y0031, 31100-P3F-013, 31100-P3F-013RM, 31100-P3F-A01, 31100-P3F-A011, 31100-P3F-A01RM, 31100-P3F-E01, 31100-P3F-G01, 31100-P3F-G52, 31100-P3F-G521, 31100-P3F-J01, 31100-P3F-J01RM, 31100-P3F-J51, 31100-P3F-J51RM, 31100-P5M-003, 31100-P5M-0030, 31100-P5M-013, 31100-P5M-013RM, 31100-P5M-G02, 31100-P72-013, 31100-P72-0130, 31100-P72-013RM, 31100-P75-0030, 31100-P75-0030, 31100-P7A-G01, 31100-PAA-A01, 31100-PAA-A010M, 31100-PAA-A01RM, 31100-PAA-L71, 31100-PAA-L710, 31100-PAA-L71RM, 31100-PCB-A0130, 31100-PEA-A01, 31100-P
