Specifications
- MFR:DELCO
- FEATURE 1:100% New
- FEATURE 2:Ignition or lamp activated
- FEATURE 3:Soft start, LRC
- FEATURE 4:Under-voltage, over-voltage lamp
- FEATURE 5:Shorted field & lamp protection

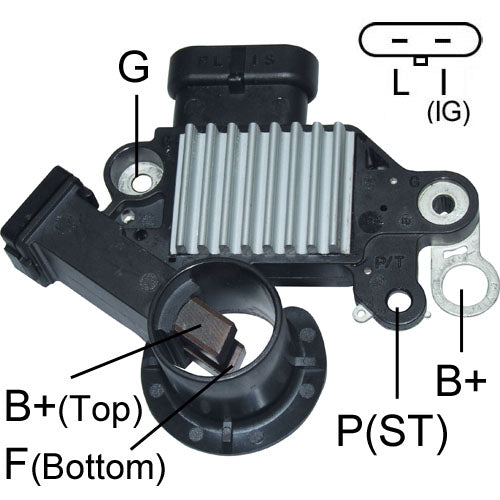

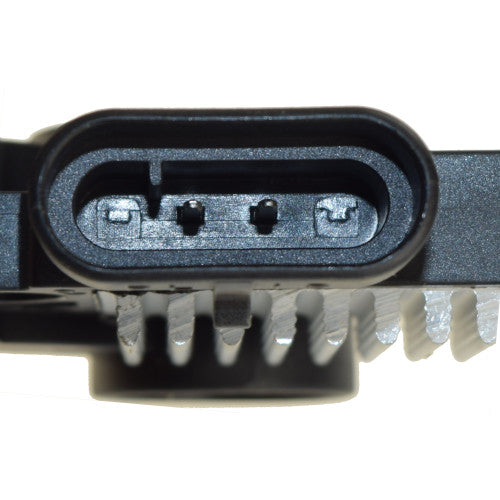

- NOTE 1:4-terminal connector receptacle but only the 2-center terminals exist.
- SPECS FOR:Delco Korea / Daewoo IR/IF Alternators
- SPECS:12 Volt, A-Circuit, I-L Terminals, 14.6 Vset
USED ON
- Chevrolet (2004-2008) ** Pontiac (2005-2008) ** Suzuki (2004-2008)
LESTER NUMBERS
- 8483, 8484
Replaces
- Delco 93740783, Original Reference Number 220006, Suzuki 32500-86Z00
UNIT NUMBERS
- Delco 96540542, 96838369, 96838439, 96954113; GM 96540542, 96838439, 96954113; Suzuki 31400-85Z00, 31400-85Z01, 31400-85Z02
