Specifications
- MFR:DELCO
- FEATURE 1:100% New Transpo Heavy Duty ASVR Design
- FEATURE 2:OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection
- FEATURE 3:Welded construction - no solder joints for hi-temperature reliability & increased field life
- NOTE 1:B+ connection made at rectifier B+ stud w/ screw down spacer.
- SPECS FOR:Delco AD230, AD237, AD244 Series IR/IF Alternators

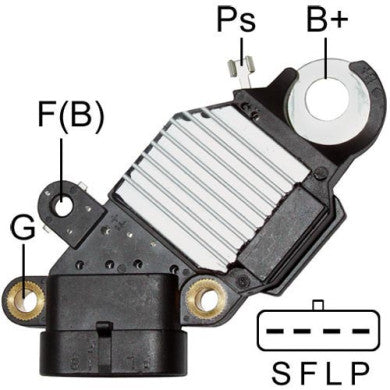

- SPECS:12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 2.5 sec. LRC
USED ON
- Buick (2002-2006) ** Cadillac (2002-2004) ** Chevrolet (1999-2010) ** GMC (1999-2006) ** Hummer (2003-2005) ** Isuzu (2003-2006) ** Oldsmobile (2002-2004) ** Pontiac (2003-2004) ** Saab (2005-2006)
Replaces
- Delco 10458199, 19054622, 19060319, 19060345, Delco ASVR 10458199, Original Reference Number 0319, 3013, 3643, 3730, 4622, 6311
LESTER NUMBERS
- 8237, 8247, 8274, 8274-200, 8284, 8287, 8290, 8291, 8292, 8293
UNIT NUMBERS
- Delco 10327068, 10327069, 10333165, 10333166, 10343535, 10346705, 10442782, 10442783, 10464453, 10464456, 10464468, 10464468, 10464476, 10464476, 10464481, 10464482, 10464482, 10464493, 10480388, 15062413, 15162839, 15226003, 15744910, 15750871, 15754097, 15754097A, 15754097M, 15754097W, 15755616, 15755616W, 15768830, 19151920, 19244741, 19244746, 19244750, 25744162; GM 10464438, 10464468, 10464474, 10464475, 10464476, 10464481, 10464482, 10464495, 10464496, 10464499, 15226003, 19151912, 19151921, 19151921, 19244727, 19244729, 19244735, 88877296; Isuzu 8104644680, 8104644760, 8152260030; Original Reference Number 10346705A, 10442782M, 10442783M, 15750871A; Saab 15-22-6003
