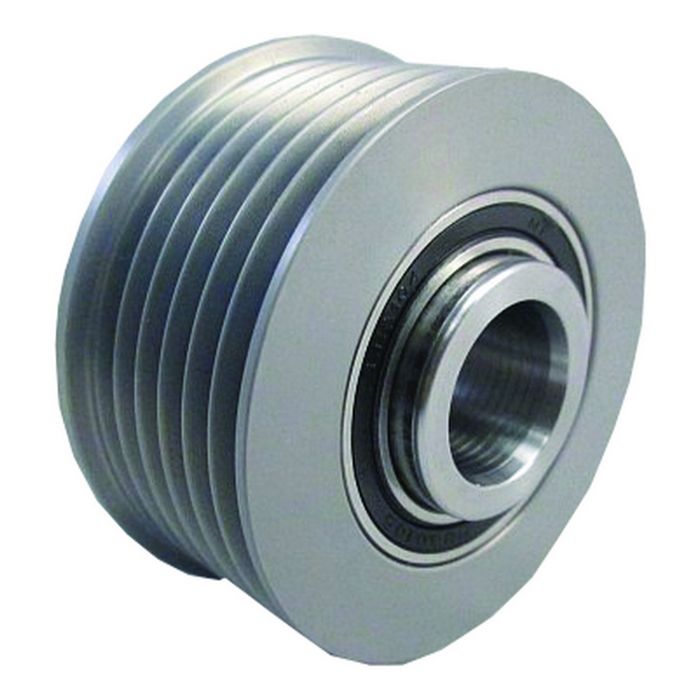

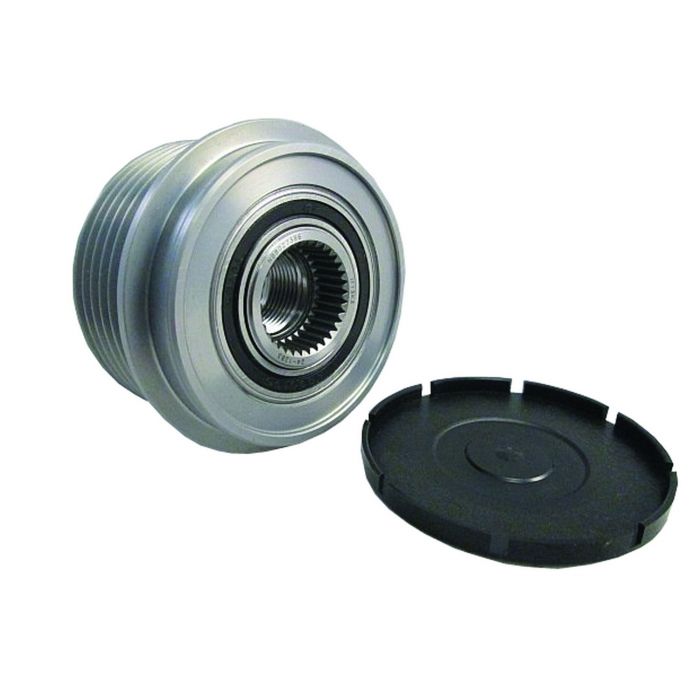

Aftermarket Clutch Pulley 24-1283
Aftermarket Clutch Pulley 24-1283
Click to zoom in

Aftermarket Clutch Pulley 24-1283

Delco
24-1283
In stock
Clutch Pulley
$80.00
$80.00

Aftermarket Clutch Pulley 24-1283

Specifications

  • DIM 1:21mm Belt x 57mm Rib OD x 17mm Bore
  • DIM 2:.668 x 20 Threads, 6.8mm from hub to center of 1st groove
  • DIM A (MM):17
  • DIM B (MM):57
  • DIM C (MM):36.8
  • DIM D (MM):6.8
  • FEATURE 1:100% New
  • FEATURE 2:Premium 2 Year Warranty
  • GROOVES:6
  • SPECS FOR:Delco AD237 Series IR/IF Alternators
  • SPECS:6-Groove Clutch Pulley
  • TYPE:OAP

USED ON

  • Chevrolet (2005-2009) ** GMC (2006-2007) ** Oldsmobile (1999-2002) ** Pontiac (2004-2004) ** Saab (2008-2009)

Replaces

  • Delco 10484670, INA Bearing Co 535 0033 10, F-230753, F-230753.01, F-230753.03, F-230753.06, F-230753.1, F-230753.3, F-230753.6, F-554765.02, F-554765.03, F-554765.2, F-554765.3, Original Reference Number 104-84-670

LESTER NUMBERS

  • 8241, 8293, 8299, 8489, 8491-3, 8499

UNIT NUMBERS

  • Delco 10311493, 10343535, 10346705, 10464395, 10464478, 10464493, 10480341, 15087020, 15288860, 15288861, 15845337, 15845338, 19244741; GM 10464395, 10464469, 10464499, 15288860, 15288861, 15845338, 19151912, 19244738; Original Reference Number 10346705A, 10480341W; Saab 15-28-8860
