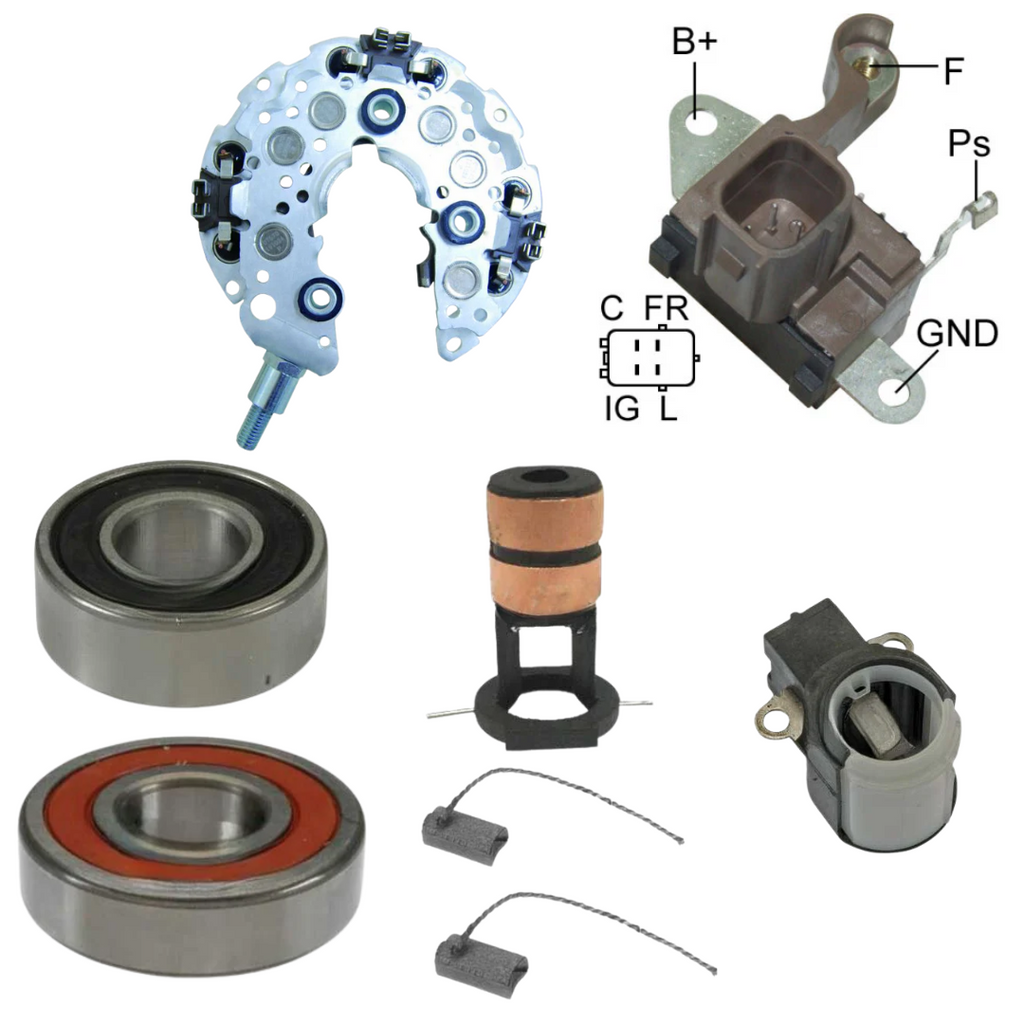

INCLUDED IN REBUILD KIT:
Bearing DE
Bearing SRE
Brush Holder
Brushes
Rectifier
Slip Ring
Voltage Regulator
NOT INCLUDED IN REBUILD KIT:
Bearing Cover
Bearing Retainer
Cover 1
Frame DE
Frame SRE
Insulator 1
Insulator 2
Nut 1
Nut 2
Pulley
Rotor
Screw 1
Screw 2
Screw 3
Stator
Thru Bolt
Washer Ring
Specifications
- MFR:DENSO
- Mfr Series:HAIRPIN
- AMPERAGE:130
- DESIGN:IR/IF
- FEATURE 1:100% New
- PLUG CLOCK:11:00 Plug Clocking
- PLUG CODE:298
- PULLEY CLASS:S6
- ROTATION:CW
- SPECS FOR:Alternator - Denso Hairpin IR/IF
- SPECS:130 Amp/12 Volt, CW, 6-Groove Pulley
- VOLTAGE:12
USED ON
- Honda (2008-2012) ** Honda - China (2011-2012)
Replaces
- Denso 104210-5910, Honda 31100-R70-A01, 31100-R70-A01RM, CSF91, Original Reference Number TN104210-5910
LESTER NUMBERS
- 11392
