Specifications
- MFR:DENSO
- FEATURE 1:100% New
- FEATURE 2:Field short-circuit protection
- NOTE 1:L is not traditional lamp terminal.
- NOTE 2:Vset controlled by vehicle RVC system
- NOTE 3:L(RC) terminal is computer RVC(PWM) connection, not Lamp
- NOTE 4:Regulator damage if tested as Lamp connection
- SPECS FOR:Denso IR/IF Alternators

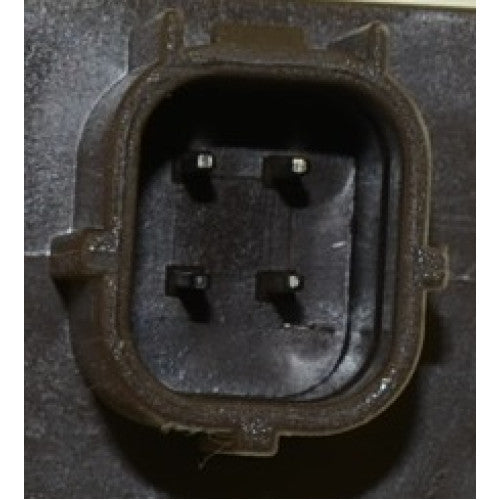

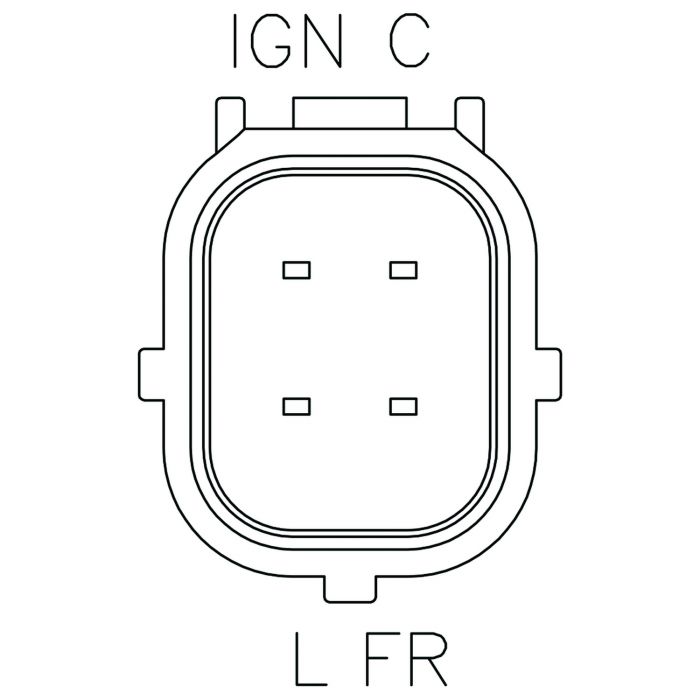

- SPECS:12 Volt, B-Circuit, L(RC)- F(FR) Terminals, 13.8 Default Vset
USED ON
- Chevrolet (2007-2015) ** Pontiac (2007-2009) ** Saturn (2008-2010)
Replaces
- Denso 126600-3290, 126600-3580, 3290, GC3 3290, GC3A 3580
LESTER NUMBERS
- 11156, 11183, 11237, 11250, 11367, 11476, 11647, 11787, 44016, 44019
UNIT NUMBERS
- Denso 021080-0170, 104210-2160, 104210-2250, 104210-2890, 104210-4560, 104210-5070, 104210-5380, 104210-5410, 104210-5420, 104211-0261, 104211-8130, 104211-8131, 104211-8160, 104211-8161, 104211-8162, 104211-8912, TN104211-8912; GM 10335498, 13507127, 13520809, 15826299, 15846253, 20841889, 22859538, 22865612, 22888109, 22988006, 25862643, 25864953, 84009367, 96673482, 96673483
