Specifications

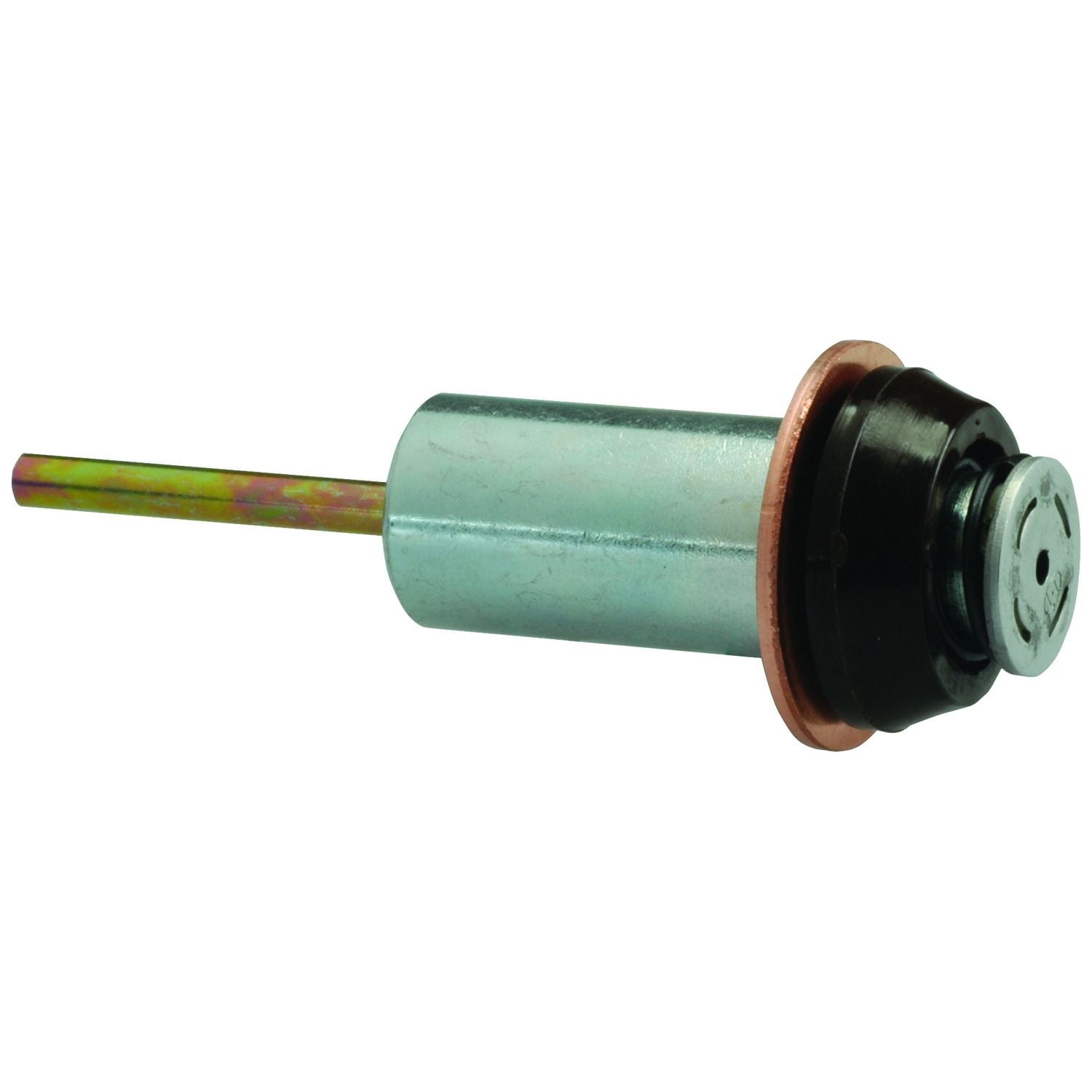

SPECS FOR:Denso 1.0kW, 1.2kW, 1.4kW, 1.6kW, 2.0kW OSGR Starters
DIM 1:96.7mm OAL, 34.8mm Movable Contact OD
NOTE 1:Use 79-82101 repair kit for plungers w/ 3mm hole.
NOTE 2:Use 79-82102 repair kit for plungers w/ 5mm hole.
LESTER NUMBERS
10872, 16650, 16831, 16946, 17020, 17098, 17125, 17189, 17197, 17202, 17204, 17216, 17240, 17242, 17256, 17259, 17285, 17363, 17379A, 17420, 17423, 17460, 17464, 17465, 17466, 17481, 17485, 17487, 17493, 17516, 17517, 17519, 17521, 17523, 17524, 17526, 17529, 17530, 17531, 17532, 17533, 17536, 17546, 17562, 17570, 17571, 17573, 17579, 17584, 17632, 17668, 17671, 17697, 17727, 17735, 17737, 17747, 17784, 17785, 17791, 17800, 17808, 17809, 17823, 17875, 17880, 17884, 17885, 17893, 17894, 17896, 17912, 17951, 17995, 18013, 18014, 18019, 18140, 18141, 18142, 18144, 18145, 18148, 18151, 18158, 18159, 18160, 18175, 18277, 18400, 18410, 18446, 18495, 18515, 18629, 18936, 18991, 19176, 19187, 19333, 19339, 19508, 19510, 19511, 19512, 19816, 19909, 19911, 19913, 30564, 30611, 30772, 30984, 31355, 31379, 31391, 32541
Replaces
Denso 053660-7100, 053660-7120, 053660-7121, Toyota 28106-32850-71, 28235-35080, 28235-55050
UNIT NUMBERS
Acura 06312-PAA-506RM, 31200-P0A-003, 31200-P0A-003RM, 31200-P54-003, 31200-P72-A01, 31200-P72-A01RM, 31200-P73-A01, 31200-P73-A01RM, 31200-P75-901, 31200-P75-901RM, 31200-PAA-A01, 31200-PAA-A01RM, DXD1V, DXD1W, DXDIV, DXDIW, DXDR6, DXDRE, DXDRJ, DXKI4; Agco 3708282M93; Bobcat 102648501CC, 103855901, 103886501CC, 6683052; Bosch 0 001 107 030, 0 001 107 075; Briggs & Stratton 825222; Carrier Transicold 25-15520-00, 25-39135-00, 25-39135-00RB, 25-39135-00RM, 25-39680-00RB, 25-39690-00RB, 29-39135-00, 29-70130-00RB, 29-70158-00, 945634; Case 235907A1; Chrysler 04608801AA, 04608801AB, 04609346AB, 04609346AD, 04609703AC, 04609703AD, 04609703AF, 04609703AG, 04686045AB, 04686045AC, 04686045AD, 04686111AD, 04748700AA, 4467185, 4557284, 4557709, 4608801AA, 4608801AB, 4608801AC, 4609010, 4609346, 4609346AB, 4609346AD, 4609703, 4609703AB, 4609703AC, 4609703AD, 4609703AF, 4609703AG, 4686045, 4686045AB, 4686045AC, 4686045AD, 4686045AE, 4686104, 4686109, 4686111, 4686111AB, 4686111AC, 4686111AD, 4748700AA, 5234509, 5234648, 53005984, 53005984AB, 5334509, 56027702, 56027702AB, 56027702AC, 56027702AC2, 56027702AD, 56027702AE, 56028715, 56028715AD, 56028715AE, 56028733AA, 56028733AB, 56029113AA, 56029113AB, 56029750AA, 56029750AB, 60029750AA, R4608801AB, R4609703, R4609703AD, R4609703AG, R4686045, R4686045AD, R4686045AE, R4686104, R4686111AC, R6027702AC, R6028715, R6028715AD, R6029113AA, R6029750AB, R686045AE, RL609346AB; Club Car 1026485-01; Cummins 3675153RX; Daewoo D141164, D141291; Daihatsu Motor Co 28100-87806; Denso 128000-1160, 128000-1161, 128000-5360, 128000-5361, 128000-5560, 128000-5561, 128000-5570, 128000-5571, 128000-5580, 128000-5581, 128000-5770, 128000-6560, 128000-6561, 128000-6620, 128000-6621, 128000-6622, 128000-6623, 128000-6640, 128000-6840, 128000-6841, 128000-6842, 128000-6843, 128000-7000, 128000-7001, 128000-7002, 128000-7010, 128000-7120, 128000-7121, 128000-7122, 128000-7140, 128000-7141, 128000-7380, 128000-7381, 128000-7382, 128000-7383, 128000-7500, 128000-7560, 128000-7562, 128000-7710, 128000-7712, 128000-7713, 128000-7714, 128000-7715, 128000-7810, 128000-7812, 128000-8030, 128000-8031, 128000-8110, 128000-8111, 128000-8210, 128000-8320, 128000-8321, 128000-8322, 128000-8323, 128000-8350, 128000-8360, 128000-8450, 128000-8451, 128000-8453, 128000-8456, 128000-8460, 128000-8462, 128000-8480, 128000-8481, 128000-8780, 128000-8784, 128000-9051, 128000-9300, 128000-9380, 128000-9520, 128000-9700, 128000-9701, 128000-9702, 128000-9730, 128000-9740, 128000-9750, 128000-9751, 128000-9752, 128000-9790, 128000-9870, 128000-9890, 128000-9891, 228000-0150, 228000-0250, 228000-0251, 228000-0360, 228000-0361, 228000-0363, 228000-0400, 228000-0410, 228000-0470, 228000-0471, 228000-0472, 228000-0473, 228000-0660, 228000-0661, 228000-0662, 228000-0663, 228000-0664, 228000-0710, 228000-0810, 228000-0890, 228000-0900, 228000-0901, 228000-0902, 228000-0950, 228000-0951, 228000-0970, 228000-0971, 228000-0980, 228000-0981, 228000-0990, 228000-0991, 228000-1000, 228000-1001, 228000-1020, 228000-1021, 228000-1022, 228000-1040, 228000-1041, 228000-1060, 228000-1061, 228000-1070, 228000-1071, 228000-1080, 228000-1081, 228000-1082, 228000-1130, 228000-1131, 228000-1132, 228000-1133, 228000-1150, 228000-1340, 228000-1341, 228000-1530, 228000-1531, 228000-1560, 228000-1690, 228000-1700, 228000-1840, 228000-1841, 228000-1880, 228000-1881, 228000-1960, 228000-1961, 228000-1962, 228000-1963, 228000-1970, 228000-1980, 228000-1981, 228000-1982, 228000-1983, 228000-2000, 228000-2001, 228000-2002, 228000-2003, 228000-2050, 228000-2060, 228000-2061, 228000-2062, 228000-2150, 228000-2151, 228000-2180, 228000-2181, 228000-2260, 228000-2261, 228000-2280, 228000-2520, 228000-2570, 228000-2571, 228000-2572, 228000-2730, 228000-2750, 228000-2831, 228000-2832, 228000-2833, 228000-2834, 228000-2840, 228000-2841, 228000-2890, 228000-2940, 228000-2960, 228000-3010, 228000-3011, 228000-3012, 228000-3013, 228000-3014, 228000-3020, 228000-3021, 228000-3023
